Saber's armor set
How to make shoes armor (with templates)



Materials
[Materials for making templates]
-Drawing paper 10piece
-"Kousakuyousi"(one of hard paper in Japan) 5piece
-Scotch tape(Sellotape) 3piece
-Packaging tape(parcel tape) 1piece

[Main materials]
-EVA foam
→1.5mm or 2mm thick 100cm X 10cm
→5mm thick 100cm X 50cm
-Cloth 100cm X 20cm
-"Bond G17"(one of sticky glue in Japan) 100ml
-Liquid super glue 5pieces
-Hot melt(glue gun) 10piece
-Velcro 40cm
-High heels 1pair

[Painting materials]
1.When undercoat is Gesso
-Gesso 50ml
-Paintbrush 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) or acrylic paint proper quantity*
-Masking tape 1piece

2.When undercoat is Wood glue thinned with water
-Wood glue 50ml
-Water a little
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*
-Masking tape 1piece

3.When undercoat is Thinned "Bond G17"(one of liqud glue in Japan)
-"Bond G17"(one of sticky glue in Japan) 50ml
-lacquer thinner 50ml
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*
-Masking tape 1piece

*The paiting area is written in the package, refer it. Details are here.

Materials cost
1500Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter etc(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Lighter
-Paint tools (brush etc)

Convenient tools when you have
-Standard art knife,Cushion grip art knife
-Circle cutter
-Heat gun
-Super glue Accelerator

Work time
6Hours

Spec
-

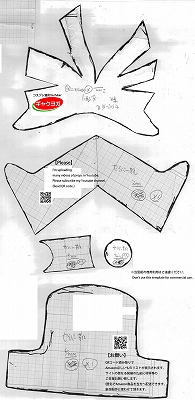

Template data
PDF format(A4 size)

-How to print is here.
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Size:Free size
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

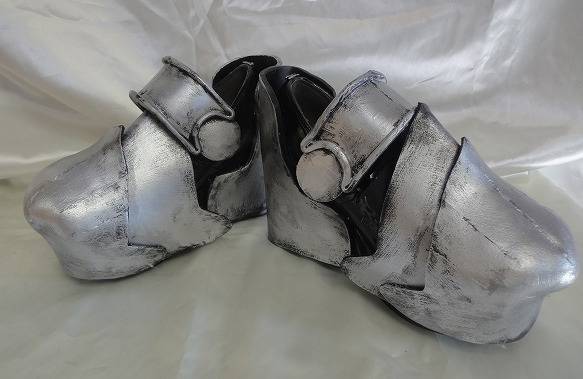

Completion drawing


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.

-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

Building

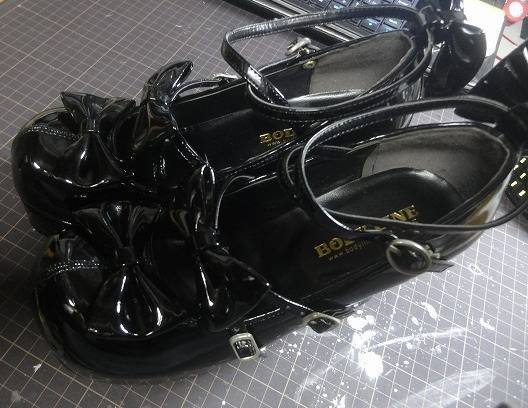

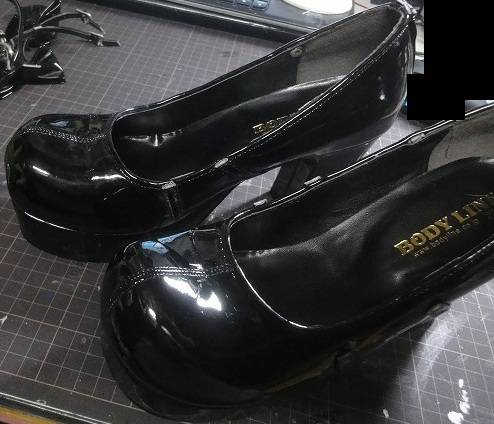

Use this heel as a base.


Cut off a fitting codes.

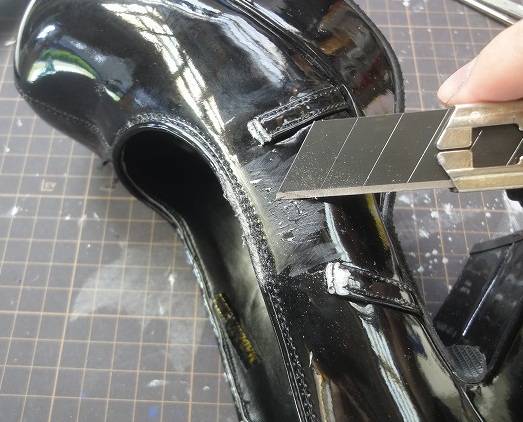

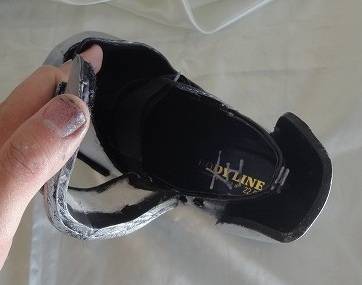

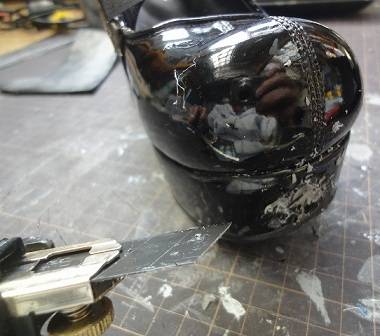

Damage the surface with Box cutter etc. then pasting became good.

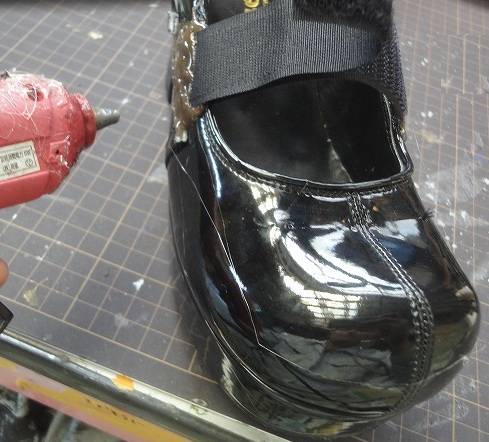

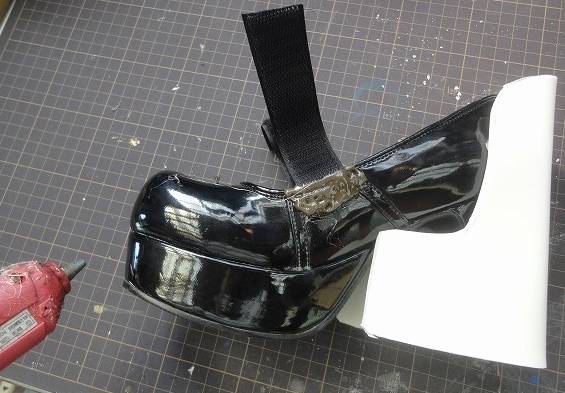

Glue Velcro with "Bond G17"(one of sticky glue in Japan) or a Hot melt(glue gun). Detailes are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.




ギャクヨガが愛用しているグルーガンです、口が広くてとても使いやすい!

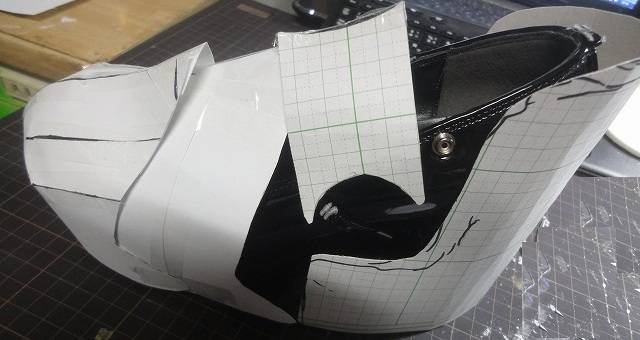

Make the template

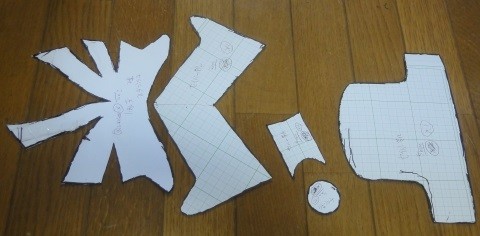

Make Templates from Drawing paper and "Kousakuyousi"(one of hard paper in Japan).
When you want to know how to make Templates, browse this page.





When you make a ideal from, cut open it. Use it.


Building
Make a heel part.

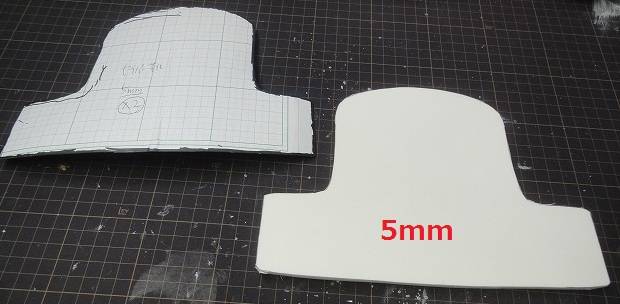

Cut material into the Templates form.

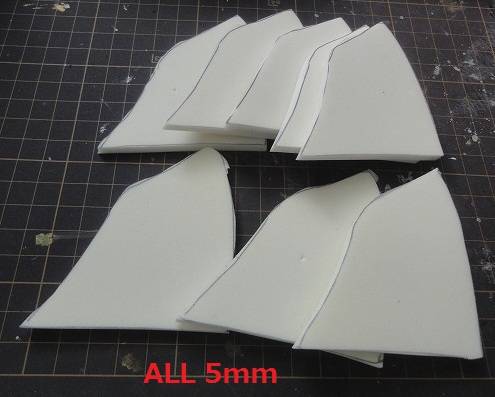

Cut out 5mm thick EVA foam.





EVA foam is soft material.
You can process it easily.
Other names are EVA board, EVA zote, Craft foam etc.
Cosplayers all over the world use this.

Introduction video




Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

I always use "Running fire box cutter","Blade breaker",Cutting mat.
"Blade breaker" can break the blade easily.


Use Standard art knife or Cushion grip art knife to cut small ornaments etc, too.






●5mm厚COSボードをAmazonで買う


●5mm厚COSボードを楽天で買う

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 5mm厚 白
価格:583円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 5mm厚 白
価格:1120円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Lサイズ(900mm×1800mm) 5mm厚 白
価格:3249円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 5mm厚 黒
価格:650円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 5mm厚 黒
価格:1344円(税込、送料別) (2019/10/23時点)

●5mm厚コスプレボードをAmazonで買う


●5mm厚コスプレボードを楽天で買う

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白5mm×660mm×500mm
価格:517円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白5mm×660mm×1000mm
価格:990円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白5mm×1000mm×2000mm
価格:3564円(税込、送料別) (2019/10/23時点)

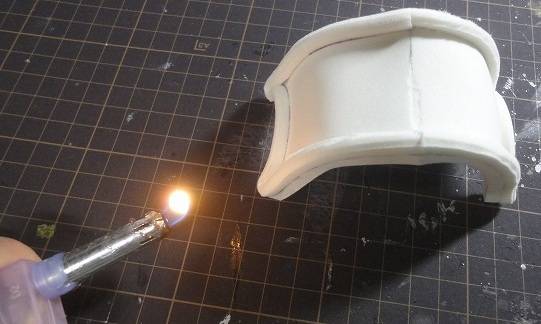

Bend by heating with a Lighter or a Heat gun.(Be careful about fire)


↑ギャクヨガ愛用ライター、使いやすい! ガスがなくなったらボンベで充填しましょう

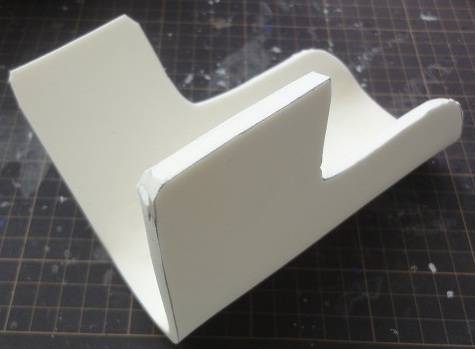

I finished bending.


Glue with a Hot melt(glue gun).

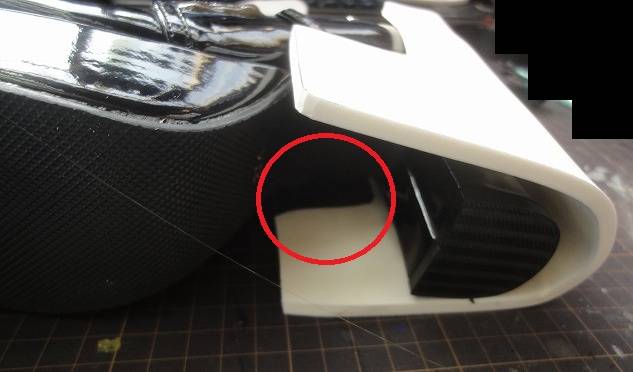

Fill gap of the heel. (Surrounded part by red circle)

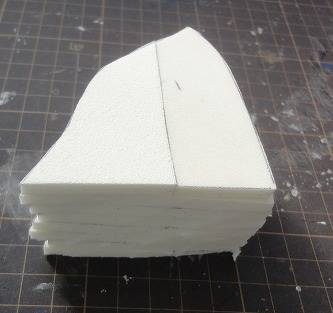

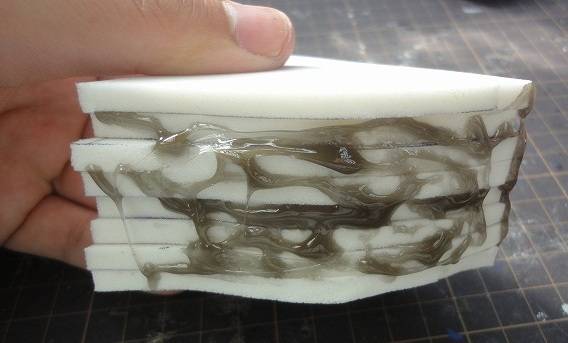

Cut out 5mm thick EVA foam.


Glue with a Liquid super glue.


Glue with a Hot melt(glue gun).

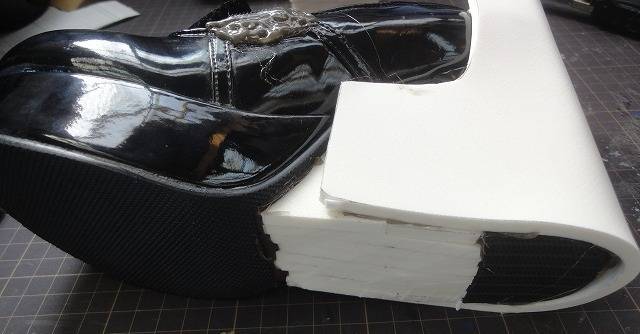

I finished glueing.

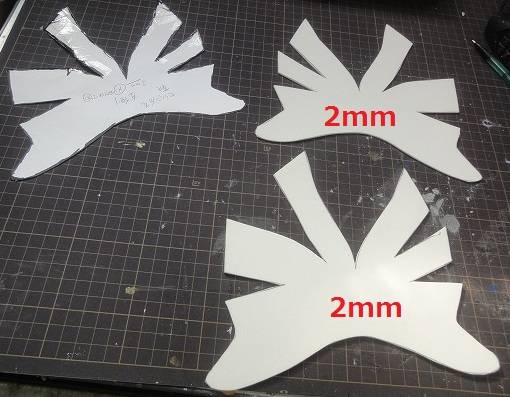

Make toe parts.
Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.





●1.5mm厚COSボードをAmazonで買う


●1.5mm厚COSボードを楽天で買う

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 1.5mm厚 白
価格:359円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 1.5mm厚 白
価格:672円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Lサイズ(900mm×1800mm) 1.5mm厚 白
価格:1681円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 1.5mm厚 黒
価格:672円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード(シールタイプ)Mサイズ(600mm×900mm) 1.5mm厚 白
価格:1120円(税込、送料別) (2019/10/23時点)

●1.5mm厚コスプレボードをAmazonで買う


●1.5mm厚コスプレボードを楽天で買う

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白1.5mm×660mm×1000mm
価格:605円(税込、送料別) (2019/10/23時点)

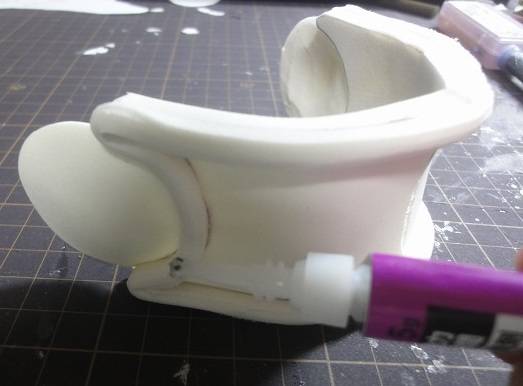

Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)





Super glue accelerator makes hardening time short.
It's so useful.
Watch this video.


When you use 100ml, you can make a armorset or about two, three weapons.
←100ml ←420ml

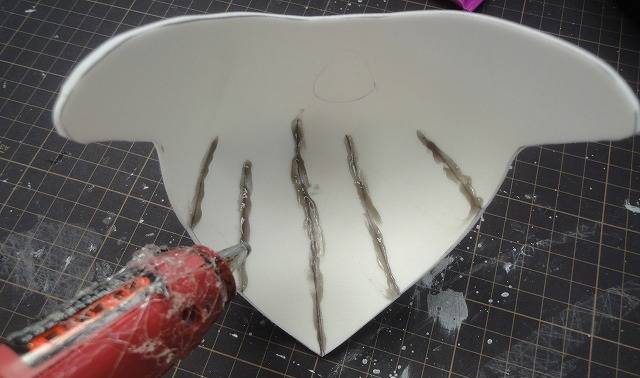

Reinforce by heaping a Hot melt(glue gun) on the backside of glueing places.
Glue Cloth or Synthetic leather on points with burdens.

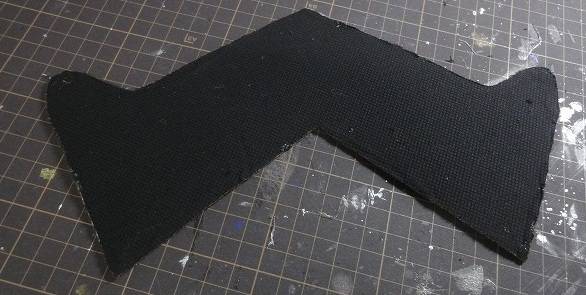

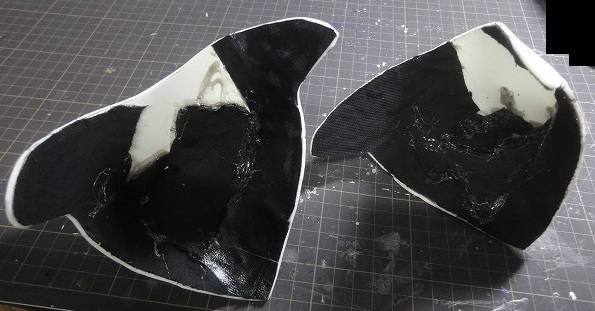

Glue Synthetic leather on the backside with a "Bond G17"(one of sticky glue in Japan) for reinforcement. Detailed process is here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.

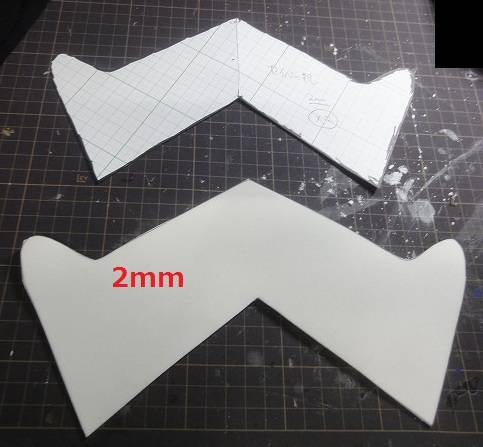

Make plate part.
Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.


Glue Synthetic leather on the backside with a "Bond G17"(one of sticky glue in Japan) for reinforcement. Detailed process is here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.


I finished glueing.

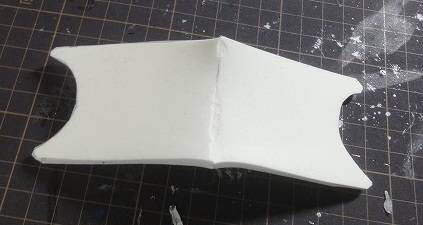

Bend by heating with a Lighter or a Heat gun.(Be careful about fire)


Make instep parts.
Cut material into the Templates form.

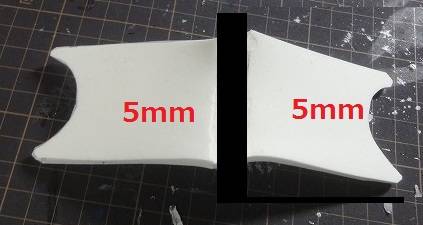

Cut out 5mm thick EVA foam.


Glue with a Liquid super glue.


Cut 5mm thick EVA foam thin and shave corner.


Glue with a Liquid super glue.


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)


Cut material into the Templates form.
Cut out 5mm thick EVA foam.
You must use a tool for cutting out a fair circle. Details are here.

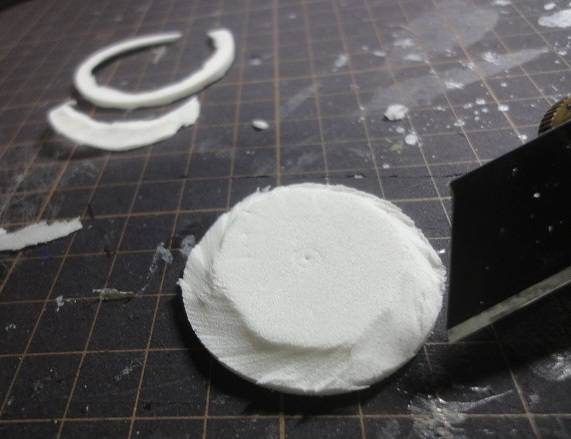

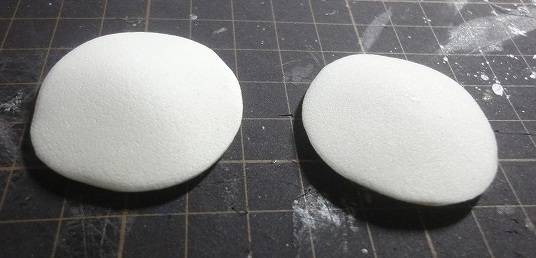

Shave it into a mountain form with a Box cutter etc.


Bend with a Lighter while pushing the shaving side.


The surface becomes round.


Glue with a Liquid super glue.

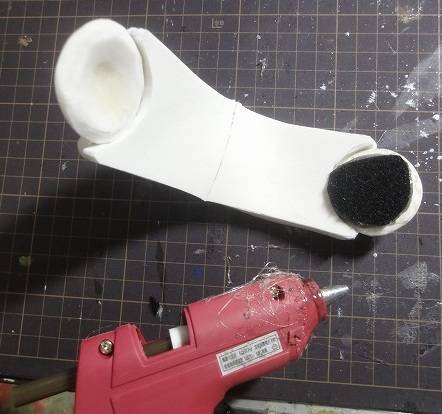

Glue Velcro with "Bond G17"(one of sticky glue in Japan) or a Hot melt(glue gun). Detailes are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.


Please support me by donating
If my tutorials supports you, please support me.
You can donate to me with PayPal.
I'm gonna use donation to make new props, thanks.
Click this ↓.


Thanks for donating from donation form! DaveM-san!
I'm so glad my tutorial helped you!


Thanks for donating from donation form! HarmaRanamelda-san!
I'm so glad my Sephiroth sword tutorial helped you!


Thanks for donating from donation form! huu-san!
I'm so glad my tutorial helped you!


More history

Please subscribe and follow
Please subscribe my channel!


Please follow my twitter!


Painting
Begin painting.
At first, paint undercoat on EVA foam.
The effects are as follows.

-Color becomes well.
-It becomes hard to come off.
-Gloss comes out well.
-You can save quantity of the paint.


1.Gesso
This is easy.

【Merit】
-It's usable just to paint with a paint brush.
-Gesso don't contain thinner, then you can use it in the room.
-You can use also Acrylic paint.
-There are several colors one, white black etc.

【Demerit】
-It's easy to come off than Thinned "Bond G17"(one of liqud glue in Japan).
 Then, use this for weapons and armors without moving parts.
-The gross is smaller than Thinned "Bond G17"(one of liqud glue in Japan).

【Commodities page】
Gesso or Black Gesso
or

【Paint】
Lacquer Spray or Bottle lacquer paint or acrylic paint
or

2.Wood glue thinned with water
This is so easy.

【Merit】
-Someone can get
-Someone can use easy

【Demerit】
-Drying time is a little long.

【Commodities page】


3."Bond G17"(one of liqud glue in Japan)
This is difficult, however it's almighty.

【Merit】
-It'st hard to peel off.
-It can use for PVC pipe or plastic sheets.

【Demerit】
-"Bond G17" is japanese commodity. Then you can't get it easily.
-It needs thinner, then you must work outdoors.
-It burns easily.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
The parts will be charred in seconds.

【Commodities page】
"Bond G17"(one of sticky glue in Japan) thined with lacquer thinner
&

-About paint
I use following paint.


You can use acrylic paint, when you use Gesso.



I use Gesso in this tutorial.


Paint Gesso twice or three times with a brush.
Dry it about 2 ~ 6 hours.

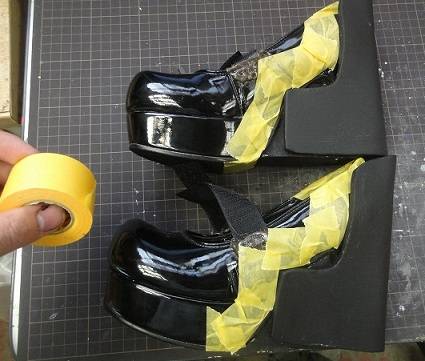

Stick Masking tape on the point you don't want to paint.


ギャクヨガは細かいところは10mm幅(左の商品)、広い所は30mm幅(右の商品)を使ってます

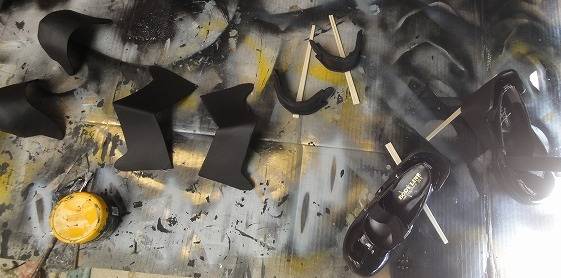

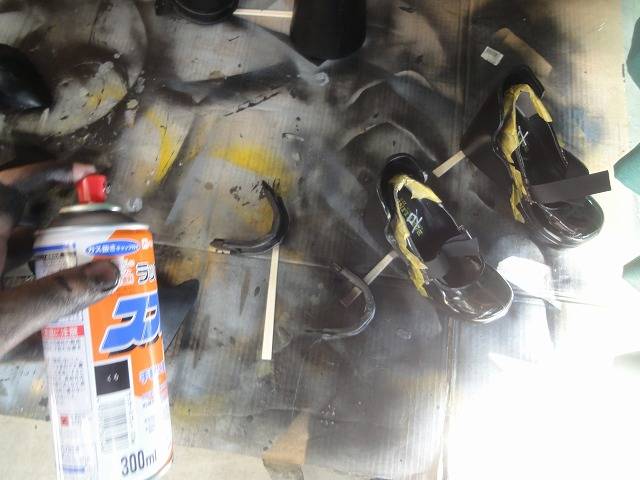

Paint black color as undercoat color with Lacquer Spray.

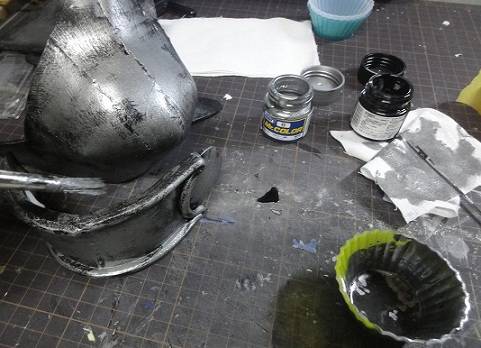

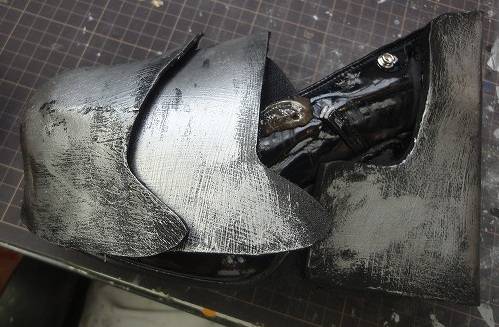

Paint Bottle lacquer paint by Drybrush painting.


Drybrush painting is easy, you can do it with a paint brush.
Read here or watch this video.


When you paint Bottle lacquer paint, use a paintbrush,silicon cup(Use as a paint plate. It can easy to peel paints after dry.),
panint stick, thinner.



After painting

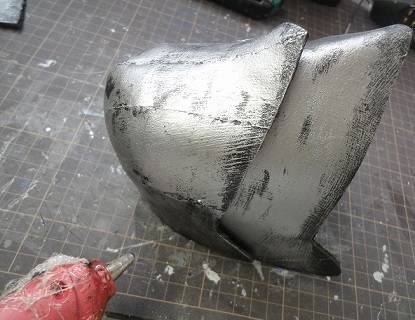

Paste together plates. Glue with a Hot melt(glue gun).


Damage the surface with Box cutter etc. then pasting became good.


Glue with a Hot melt(glue gun).

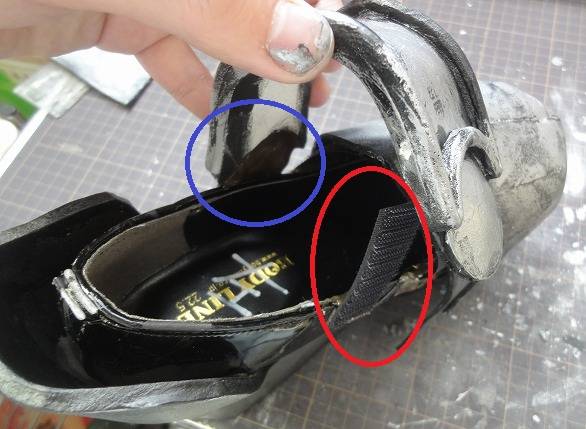

Paste instep parts of one side. Glue with a Hot melt(glue gun).(Surrounded part by blue circle)
Fit Velcro opposite side with Hot melt(glue gun).(Surrounded part by red circle)

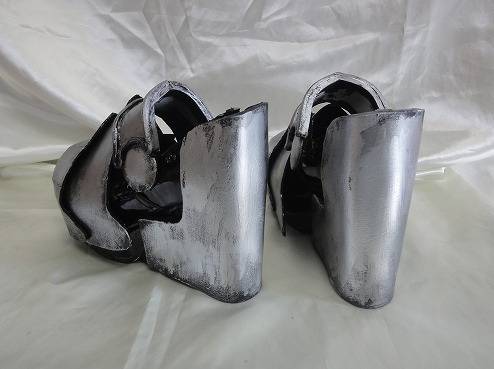

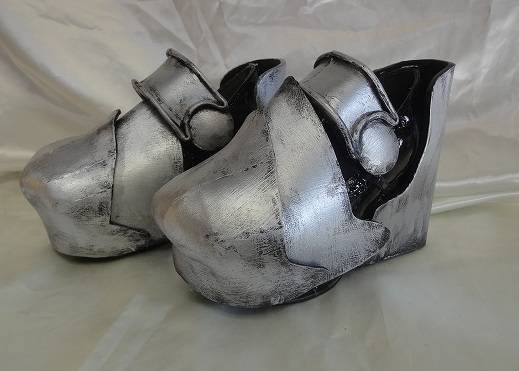

Complete










Turn over the instep plate when it wear shoes.


This model is Maropapi of my friend.
Clothes are made by her.
Maropapi's Twitter blog
