Yukumo long sword
How to make long sword
*How to make sheath section is here*



Materials etc written in following is for making only sword body section.
Materials
[Materials for making templates]
-"Kousakuyousi"(one of hard paper in Japan) 15piece
-Packaging tape(parcel tape) 1piece

[Main materials]
-EVA foam
→2mm or 1.5mm thick 100cm X 20cm
→3mm thick 100cm X 20cm
→5mm thick 100cm X 10cm
→10mm thick 100cm X 100cm
-Red Cloth 100cm X 100cm
-Blue Synthetic leather 100cm X 20cm
-Red Synthetic leather 100cm X 20cm
-White Synthetic leather 100cm X 20cm
-"Kousakuyousi"(one of hard paper in Japan) 5pieces
-"Bond G17"(one of liqud glue in Japan) 150ml
-Liquid super glue 5pieces
-Hot melt(glue gun) 10piece(When you use a Air duster for cooling, it's convenient))
-PVC pipe(diameter 26.0mm) 1piece
-Iron gardening stick 1piece

[Painting materials]
1.When a undercoat is Gesso
-Gesso 50ml
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) or acrylic paint proper quantity*
-Masking tape 1piece

2.When a undercoat is Thinned "Bond G17"(one of liqud glue in Japan)
-"Bond G17"(one of liqud glue in Japan) 50ml
-lacquer thinner 50ml
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*
-Masking tape 1piece

*The paiting area is written in the package, refer it. Details are here.

Materials cost
3000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Gas toach
-Saw or Pipe cutter
-Paint tools, such as a paintbrush
-Electric stove
-Sewing machine

Convenient tools when you have
-Art knife PRO
-Super glue Accelerator

Work time
15Hours

Spec
-Katana
Weight 700g
Length 200cm

-Sheath
Weight 800g
Length 150cm

Template data
PDF format(A4 size)1/4 PDF format(A4 size)2/2 PDF format(A4 size)3/4 PDF format(A4 size)4/4

-How to print is here.
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

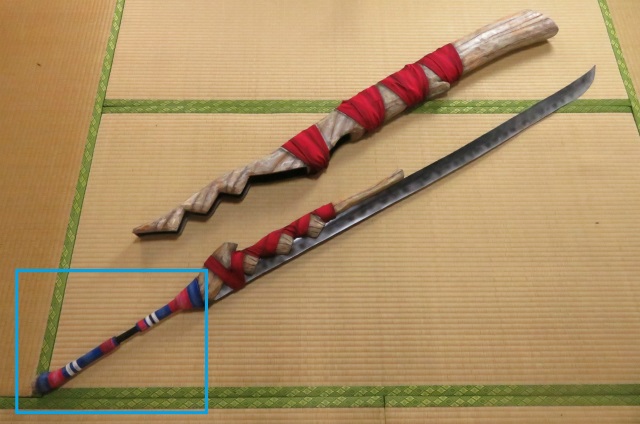

Sword - Completion drawing


Sheath - 1/3 Completion drawing


Sheath - 2/3 Completion drawing


Sheath - 3/3 Completion drawing


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.


-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

Tutorial video
When you watch this video before reading this page, you can understand this page better.


How to make
Make Templates from "Kousakuyousi"(one of hard paper in Japan).



Make the blade.
Cut "Kousakuyousi"(one of hard paper in Japan) into a belt form.


Put "Kousakuyousi"(one of hard paper in Japan) side by side.


Glue the belt with a Hot melt(glue gun).



Copy the edges of Templates on a material with a pen.
Cut out "Kousakuyousi"(one of hard paper in Japan).

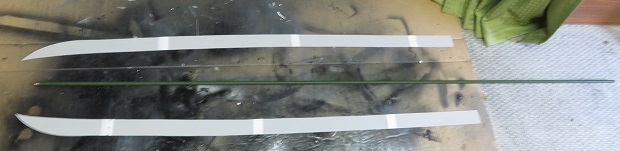

Use Iron gardening stick as core.
Cut it.
When you use a Freeway coping saw, you can cut it easily and neatly.
You can cut also Pliers, nippers, diamond files.

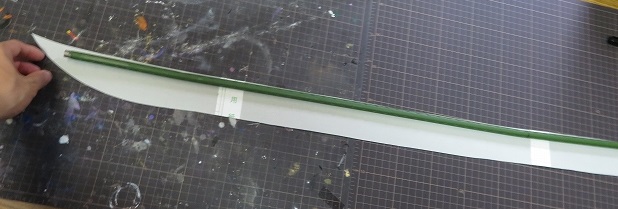

Bend Iron gardening stick by hand.


Glue with a Hot melt(glue gun).



Glue another blade.
Glue with a Hot melt(glue gun).


Glueing was completed.


Fill the back of blade with a Hot melt(glue gun).


Stroke the back of blade with a tip of Hot melt(glue gun), then the surface becomes flat.


Glue edges of the blade.
Glue with "Bond G17"(one of liqud glue in Japan). Detailed process is here.
Paint it with a broken piece of "Kousakuyousi"(one of hard paper in Japan) as a brush.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.



Reinforce the blade by painting Liquid super glue on the edge.


Present state.


Make the guard.
Copy the edges of Templates on a material with a pen.
Cut out 2mm or 1.5mm thick EVA foam.
Cut out 10mm thick EVA foam.
The alphabet in photo is name of templates.


**********************************************************************

EVA foam is a soft material.
You can process it easily.
Another name is EVA board, EVA zote, Craft foam etc.
I usually use one called "Lion board".
"Lion board" is sold only in Japan.

Watch video.

**********************************************************************


-------------------------------------------------------------------------------------------------------
【1.5mm厚COSボード】


【1.5mm厚ライオンボード(別名:リアラボード)】


楽天なら


【コスプレボード】
楽天なら


Amazonならこちら
-------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------
【10mm厚COSボード】


【10mm厚ライオンボード(別名:リアラボード)】


楽天なら


【コスプレボード】
楽天なら


Amazonならこちら
-------------------------------------------------------------------------------------------------------

**********************************************************************

Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

When you cut, put EVA foam on Cutting mat.
Don't cut in the air, while holding by hand.
Break a b blade frequentry, if you feel sharpness of using blade became bad.
If you want to do work more speedy, use "Running fire box cutter","Blade breaker".
"Running fire box cutter" can have 6 pieces blade inside.
"Blade breaker" can break easy and speedy.


Use Art knife PRO for small ornaments etc.

**********************************************************************


Glue with "Bond G17"(one of liqud glue in Japan).
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
(You may glue with a Liquid super glue. However "Bond G17"(one of liqud glue in Japan) is useful for the large area.)


Glueing wea completed.


Copy the edges of Templates on a material with a pen.
Cut out 10mm thick EVA foam.


Glueing wea completed.


Copy the edges of Templates on a material with a pen.
Cut out 10mm thick EVA foam.


Glueing wea completed.


The cross section.


Form by shaving with a Box cutter.


Shaving was completed.


Remove the corner by toasting with a Gas toach or a Lighter.(Don't breathe in the smoke and don't put in eyes)
(When the area is large, using Gas toach is easier.)


←ガス充填式ライターとガスボンベを使うとお得

Dig a pattern with a Soldering iron.(Don't breathe in the smoke and don't put in eyes)



Present state.


Begin painting.
At first, paint a undercoat on EVA foam.
The effects are as follows.

-Color becomes well.
-It becomes hard to come off.
-Gloss comes out well.
-You can save quantity of the paint.

There are two methods.
-------------------------------------------------------------------------------------------
1.Gesso
This is easy.

【Merit】
-It's usable just to paint with a paint brush.
-Gesso don't contain thinner, then you can use it in the room.
-You can use also Acrylic paint.
-There are several colors one, white black etc.

【Demerit】
-It's easy to come off than Thinned "Bond G17"(one of liqud glue in Japan).
 Then, use this for weapons and armors without moving parts.
-The gross is smaller than Thinned "Bond G17"(one of liqud glue in Japan).

【Commodities page】
Gesso or Black Gesso
or

【Paint】
Lacquer Spray or Bottle lacquer paint or acrylic paint
or
-------------------------------------------------------------------------------------------
2."Bond G17"(one of liqud glue in Japan)
This is difficult, however it's almighty.

【Merit】
-It'st hard to peel off.
-It can use for PVC pipe or plastic sheets.

【Demerit】
-"Bond G17" is japanese commodity.
 Then you can't get it easily.
 Please use others. For example, you can substitute wood glue for it.
-You must thin it with lacquer thinner.
-It needs thinner, then you must work outdoors.
-It burns easily.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
The parts will be charred in seconds.

【Tutorial video】


【Commodities page】
"Bond G17"(one of liqud glue in Japan) thined with lacquer thinner
-for big things -for small things
-------------------------------------------------------------------------------------------
-About paint
I use following paint.


You can use acrylic paint, when you use Gesso.

-------------------------------------------------------------------------------------------

I use "Zoukei be-su" as undercoat this time.
However it's sold only in Japan.
Use Gesso or Thinned "Bond G17"(one of liqud glue in Japan) in substitution for "Zoukei be-su".


Paint "Zoukei be-su" twice with a brush.
Dry it about 2 ~ 6 hours.


Dry it about 2 ~ 6 hours.


Paint the blade.
Paint black with Lacquer Spray.


Process Masking tape.
Stick Masking tape on a Cutting mat.
Mark with a pen.
Cut with a Box cutter.



Stick Masking tape on the point you don't want to paint.


Paint silver Bottle lacquer paint with a Airbrush.

←初心者にもオススメのセット、私も愛用してます。

When you paint Bottle lacquer paint, use a paintbrush,silicon cup(Use as a paint plate. It can easy to peel paints after dry.),
panint stick, thinner.


Shade off the boaderline of color with a Airbrush.


Paint gloss spray to make a gloss.



Paint the guard.
Paint gray color as undercoat color with Lacquer Spray.


Paint brown with Lacquer Spray.


Paint tan Bottle lacquer paint by Drybrush painting.


Drybrush painting is easy, you can do it with a paint brush.
Read here or watch this video.


Painting was completed.


Cut out cloth.


Fold the ends with iron.


Sew the ends with a sewing machine.


Glue with a Hot melt(glue gun).



Cut unnecessary points with a Box cutter.


Glue with a Hot melt(glue gun).


Glueing was completed.


Cut out 3mm thick EVA foam.

-------------------------------------------------------------------------------------------------------
【3mm厚COSボード】


【3mm厚ライオンボード(別名:リアラボード)】


楽天なら


【コスプレボード】
楽天なら


Amazonならこちら
-------------------------------------------------------------------------------------------------------

Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)


**********************************************************************


Super glue can glue a large surfaces easily.
But it can't glue a small surface such as this photo well


Then you should use a following spray.
I always use this.
Watch video.


Super glue accelerator
This can glue surfaces in several seconds.
When you use 100ml, you can make a armorset or about three weapons.
←100ml ←180ml ←420ml

About super glue
I use general liquid super glue.

**********************************************************************

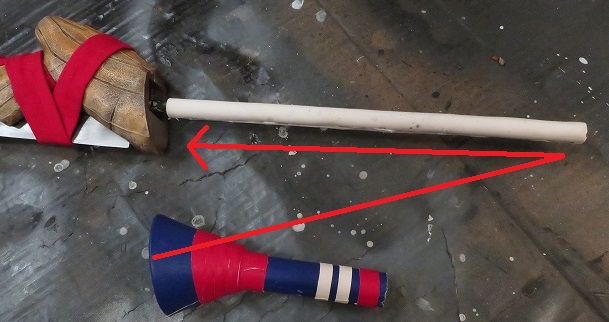

Make a grip.
Use a PVC pipe(diameter 26.0mm).
Cut a PVC pipe.
PVC pipe can be cut with a saw.
But a Pipe cutter is more better.
It can cut quickly and neatly.



This is a video of cutting method of PVC pipe, bending method, jointing method.


Cutting was completed.


Glue Synthetic leather with "Bond G17"(one of liqud glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.


Glueing was completed.


Copy the edges of Templates on a material with a pen.
Cut out 5mm thick EVA foam.

-------------------------------------------------------------------------------------------------------
【5mm厚COSボード】


【5mm厚ライオンボード(別名:リアラボード)】


楽天なら


【コスプレボード】
楽天なら


Amazonならこちら
-------------------------------------------------------------------------------------------------------

Glue Synthetic leather with "Bond G17"(one of liqud glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.


Glue Synthetic leather with "Bond G17"(one of liqud glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.


Glueing was completed.


Glue with a Liquid super glue.


Glueing was completed.


Copy the edges of Templates on a material with a pen.
Cut out 2mm or 1.5mm thick EVA foam.


Glue with a Liquid super glue.


Glue Synthetic leather with "Bond G17"(one of liqud glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.


Glue Synthetic leather with "Bond G17"(one of liqud glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.


Glueing was completed.


Glue with a Liquid super glue.


Glueing was completed.


Cut out Synthetic leather.


Glue with a Liquid super glue.


Glue with a Liquid super glue.


Glueing was completed.


Cut out Synthetic leather.
Glue with "Bond G17"(one of liqud glue in Japan).
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.


Glueing was completed.


Copy the edges of Templates on a material with a pen.
Cut out 10mm thick EVA foam.


Glue with a Liquid super glue.


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke and don't put in eyes)


Dig a pattern with a Soldering iron.(Don't breathe in the smoke and don't put in eyes)


Paint it.


Glue with a Liquid super glue.


Insert it.


Please
I'm making Yotube videos.
Please watch them and please subscribe my YouTube channel.
These are new videos.




























Return to Top page
