How to make Shoulde rarmor


Materials
[Materials for making templates]
-Drawing paper 10piece
-"Kousakuyousi"(one of hard paper in Japan) 5piece
-Scotch tape(Sellotape) 3piece
-Packaging tape(parcel tape) 1piece

[Main materials]
-EVA foam
→1.5mm or 2mm thick 100cm X 10cm
→5mm thick 100cm X 50cm
→10mm thick 100cm X 50cm
-Synthetic leather 100cm X 10cm
-"Bond G17"(one of sticky glue in Japan) 100ml
-Liquid super glue 5pieces
-Polyester putty 100g
-Hot melt(glue gun) 10piece
-Velcro 40cm

[Painting materials]
1.When a undercoat is Gesso
-Gesso 50ml
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) or acrylic paint proper quantity*

2.When a undercoat is Thinned "Bond G17"(one of liqud glue in Japan)
-"Bond G17"(one of sticky glue in Japan) 50ml
-lacquer thinner 50ml
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*
-Masking tape 1piece

*The paiting area is written in the package, refer it. Details are here.

Materials cost
1000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter etc(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Lighter
-Paint tools, such as a paintbrush

Convenient tools when you have
-Standard art knife,Cushion grip art knife
-Super glue Accelerator

Work time
4Hours

Spec
-

Template data
I threw away the Templates, so I can't upload.

Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.

-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

Make the template

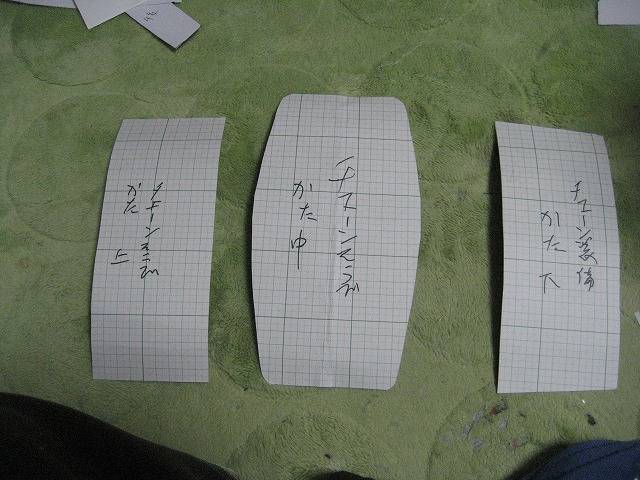

Make Templates from "Kousakuyousi"(one of hard paper in Japan).



I finished making the Templates.


Please support me by donating
If my tutorials supports you, please support me.
You can donate to me from 1$ with PayPal.
I'm gonna use donation to make new props, thanks.
Click this ↓.


Building

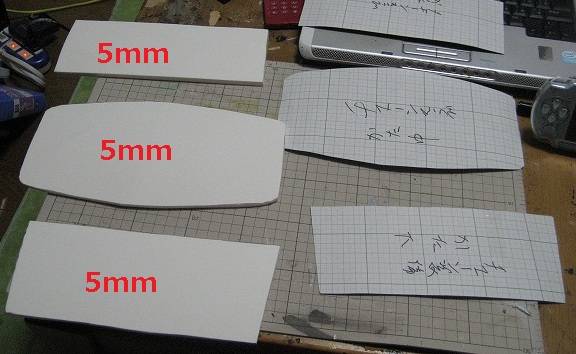

Cut material into the Templates form.
Cut out 5mm thick EVA foam.


**********************************************************************

EVA foam is a soft material.
You can process it easily.
Another name is EVA board, EVA zote, Craft foam etc.
I usually use one called "Lion board".
"Lion board" is sold only in Japan.

Watch video.

**********************************************************************

【5mm厚COSボードの通販】
●Amazon


●楽天

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 5mm厚 白
価格：583円（税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 5mm厚 白
価格：1120円（税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Lサイズ(900mm×1800mm) 5mm厚 白
価格：3249円（税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 5mm厚 黒
価格：650円（税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 5mm厚 黒
価格：1344円（税込、送料別) (2019/10/23時点)

●キャラヌノ


【5mm厚コスプレボードの通販】
●Amazon


●楽天

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白5mm×660mm×500mm
価格：517円（税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白5mm×660mm×1000mm
価格：990円（税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード　白5mm×1000mm×2000mm
価格：3564円（税込、送料別) (2019/10/23時点)


**********************************************************************

Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

When you cut, put EVA foam on Cutting mat.
Break the blade frequentry, if you feel sharpness of the blade became bad.
I use "Running fire box cutter","Blade breaker" too.
"Running fire box cutter" can have 6 pieces blade inside.
"Blade breaker" can break easy and speedy.


Use Standard art knife or Cushion grip art knife for small ornaments etc.

**********************************************************************

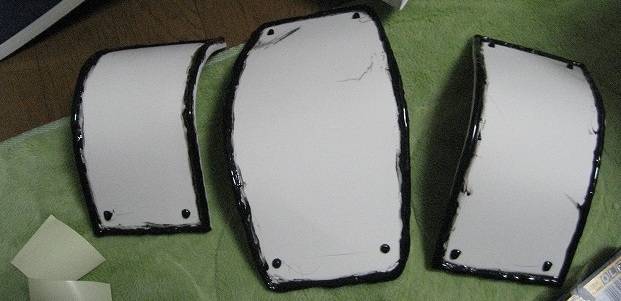

Heap a Hot melt(glue gun) on the border.
Make rivets with a Hot melt(glue gun).


↑ギャクヨガが愛用しているグルーガンです、口が広くてとても使いやすい！

Please subscribe and follow
Please subscribe my channel!


Please follow my twitter!


Painting
Begin painting.
At first, paint a undercoat on EVA foam.
The effects are as follows.

-Color becomes well.
-It becomes hard to come off.
-Gloss comes out well.
-You can save quantity of the paint.

There are two methods.
-------------------------------------------------------------------------------------------
1.Gesso
This is easy.

【Merit】
-It's usable just to paint with a paint brush.
-Gesso don't contain thinner, then you can use it in the room.
-You can use also Acrylic paint.
-There are several colors one, white black etc.

【Demerit】
-It's easy to come off than Thinned "Bond G17"(one of liqud glue in Japan).
 Then, use this for weapons and armors without moving parts.
-The gross is smaller than Thinned "Bond G17"(one of liqud glue in Japan).

【Commodities　page】
Gesso or Black Gesso
or

【Paint】
Lacquer Spray or Bottle lacquer paint or acrylic paint
or
-------------------------------------------------------------------------------------------
2."Bond G17"(one of liqud glue in Japan)
This is difficult, however it's almighty.

【Merit】
-It'st hard to peel off.
-It can use for PVC pipe or plastic sheets.

【Demerit】
-"Bond G17" is japanese commodity.
 Then you can't get it easily.
 Please use others. For example, you can substitute wood glue for it.
-You must thin it with lacquer thinner.
-It needs thinner, then you must work outdoors.
-It burns easily.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
The parts will be charred in seconds.

【Tutorial video】


【Commodities　page】
"Bond G17"(one of sticky glue in Japan) thined with lacquer thinner
-for big things -for small things
-------------------------------------------------------------------------------------------
-About paint
I use following paint.


You can use acrylic paint, when you use Gesso.

-------------------------------------------------------------------------------------------

I use Thinned "Bond G17"(one of liqud glue in Japan) in this tutorial.
But I recommend Gesso for begginers.


Paint "Bond G17"(one of sticky glue in Japan) thined with lacquer thinner three or four times.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
(It will char in seconds.)
Dry it about 2 ~ 6 hours.


Paint black color as undercoat color with Lacquer Spray.


Paint Bottle lacquer paint by Drybrush painting.


Drybrush painting is easy, you can do it with a paint brush.
Read here or watch this video.


When you paint Bottle lacquer paint, use a paintbrush,silicon cup(Use as a paint plate. It can easy to peel paints after dry.),
panint stick, thinner.



After painting
Joint plates by glueing Synthetic leather cut into a belt form with a Hot melt(glue gun).

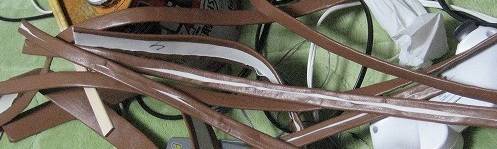

Make belts.
Cut out 1.5mm or 2mm thick EVA foam.
Glue Synthetic leather with "Bond G17"(one of sticky glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.



I finished glueing.


Glue with a Hot melt(glue gun).
Glue Velcro with "Bond G17"(one of sticky glue in Japan) or a Hot melt(glue gun). Detailes are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.

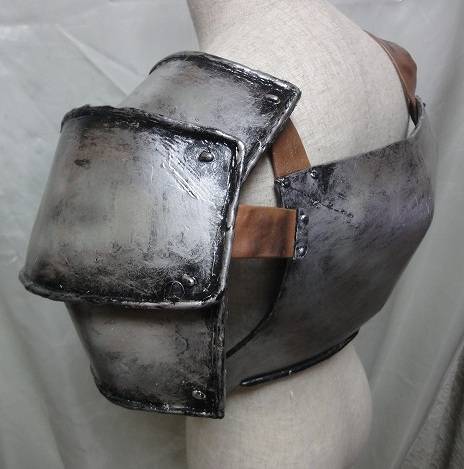

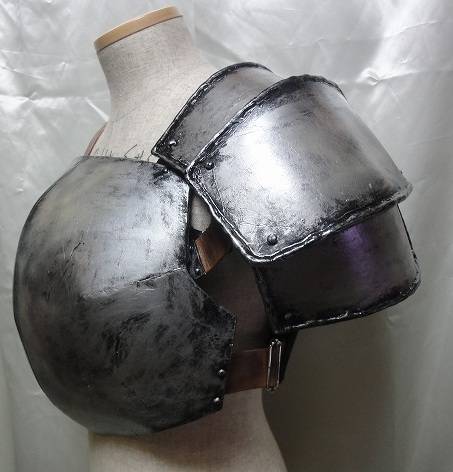

Complete phots
Thanks for browsing!

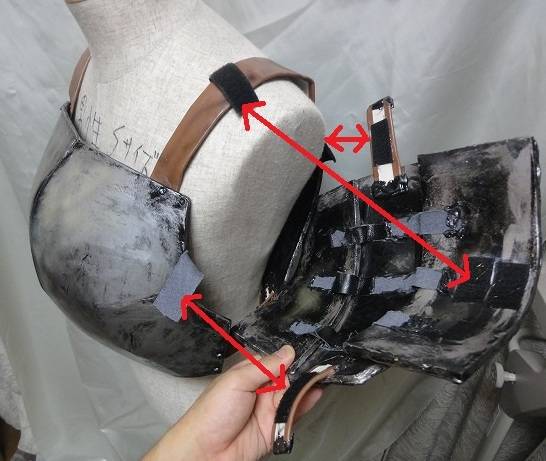

State fitted the bodyarmor.





Attach Velcro in place showed by lines.


The red circle is the parts which I made in this time.


The red circle is the parts which I made in this time.
