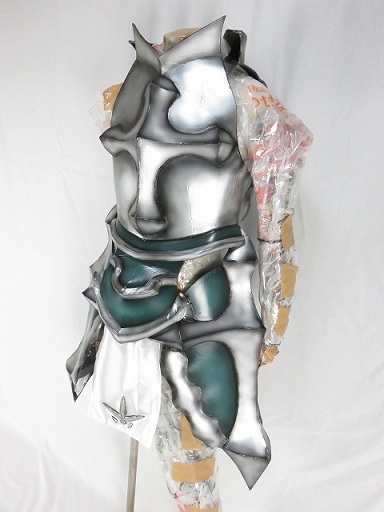

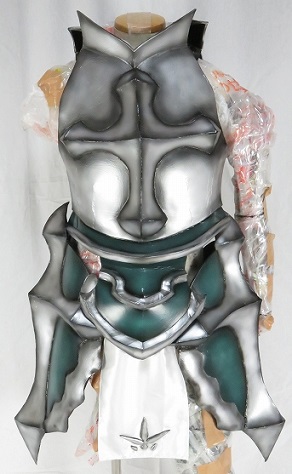

How to make waist armor (with templates)



Materials
[Materials for making templates]
-Drawing paper 10sheets
-"Kousakuyousi"(one of hard paper in Japan) 5sheets
-Scotch tape(Sellotape) 1piece
-Packaging tape(parcel tape) 1piece

[Main materials]
-EVA foam
→3mm thick 100cm X 60cm
→5mm thick 100cm X 60cm
→10mm thick 100cm X 30cm

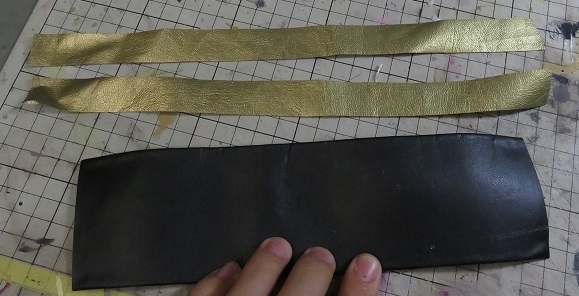

-Black Synthetic leather 100cm X 20cm
-Gold Synthetic leather 100cm X 10cm
-"Bond G17"(one of liqud glue in Japan) 100ml
-Liquid super glue 4pieces
-Hot melt(glue gun) 20pieces
-Velcro 60cm

[Painting materials]
1.When a undercoat is Gesso
-Gesso 100ml
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) or acrylic paint proper quantity*
-Masking tape 1piece

2.When a undercoat is Thinned "Bond G17"(one of liqud glue in Japan)
-"Bond G17"(one of liqud glue in Japan) 100ml
-lacquer thinner 100ml
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*
-Masking tape 1piece

*The paiting area is written in the package, refer it. Details are here.

Materials cost
2000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Lighter
-Paint tools, such as a paintbrush
-Sewing machine
-Sewing tools

Convenient tools when you have
-Art knife PRO
-Super glue Accelerator

Work time
18hours

Spec
-

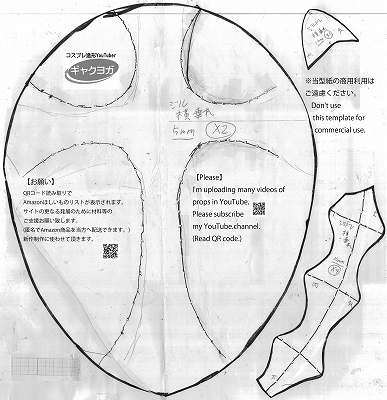

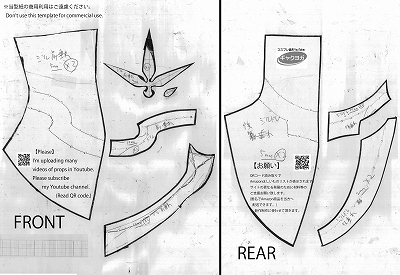

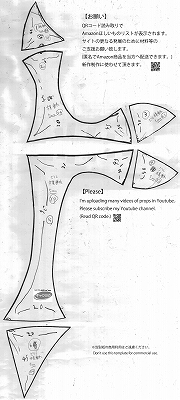

Template data
PDF format(A4 size)1/3 PDF format(A4 size)2/3 PDF format(A4 size)3/3

-How to print is here.
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Size:Free size
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

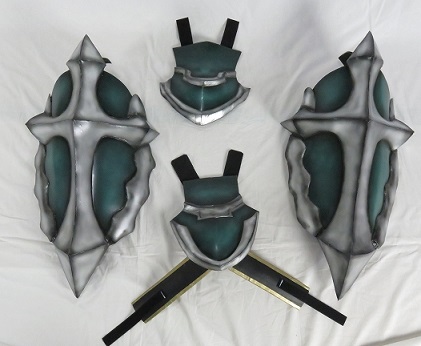

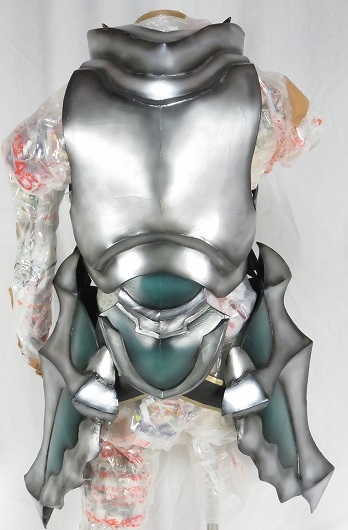

1/3 Completion drawing


2/3 Completion drawing


3/3 Completion drawing


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.


-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.


Tutorial video
When you watch this video before reading this page, you can understand this page better.




How to make templates
Make left and right Templates.

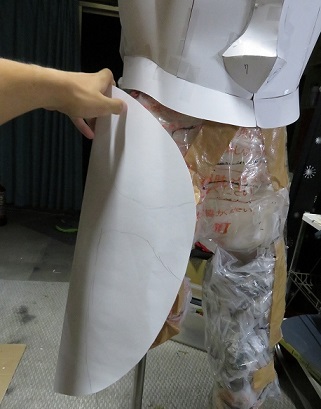

Make Templates from Drawing paper and "Kousakuyousi"(one of hard paper in Japan).
When you want to know how to make Templates, browse this page.

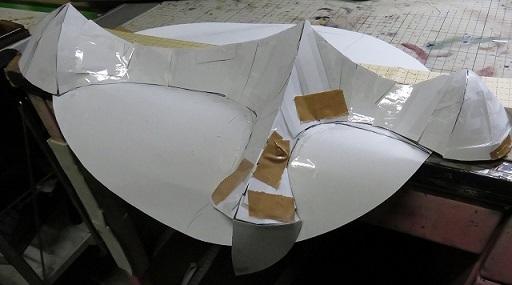

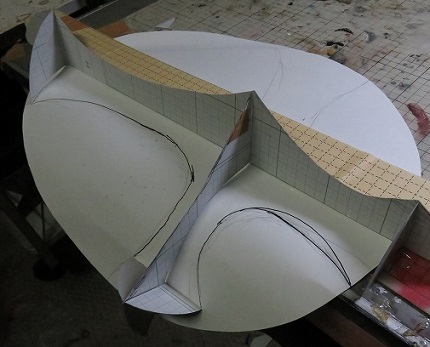

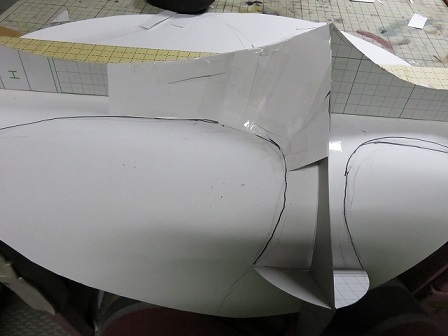

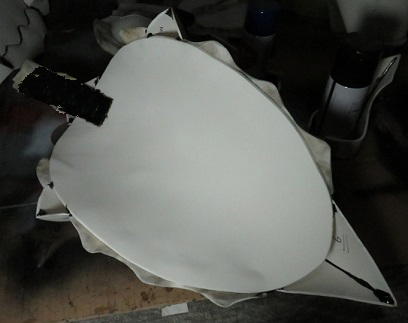

Repeat cutting and pasting.


Repeat cutting and pasting.


Repeat cutting and pasting.

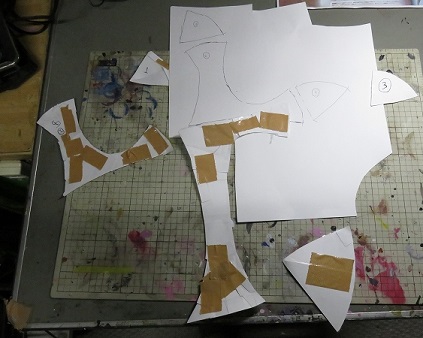

Cut open.
Copy to new Drawing paper and make a fair copy.

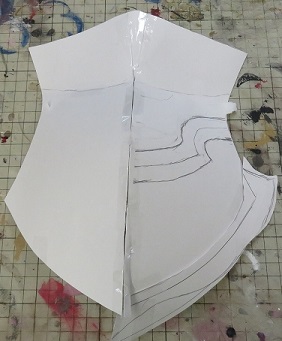

Assemble the fair copy.

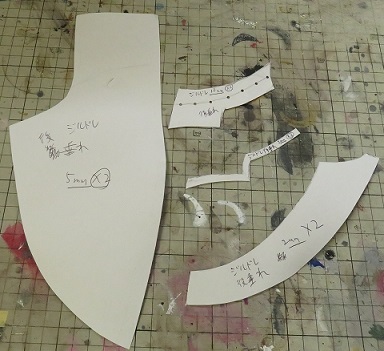

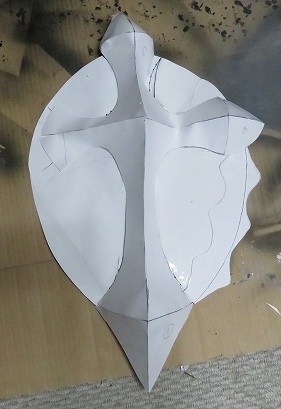

When you make a ideal from, cut open it. Use it.

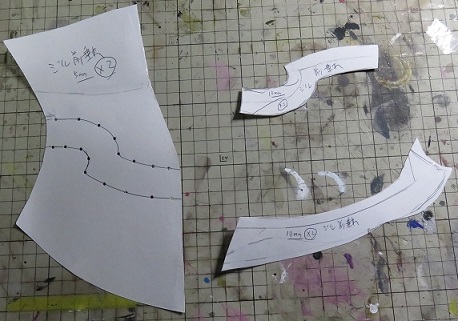

Make front Templates.
Repeat cutting and pasting.


When you make a ideal from, cut open it. Use it.


Make rear Templates.
When you make a ideal from, cut open it. Use it.


How to build
Make left and right armors.

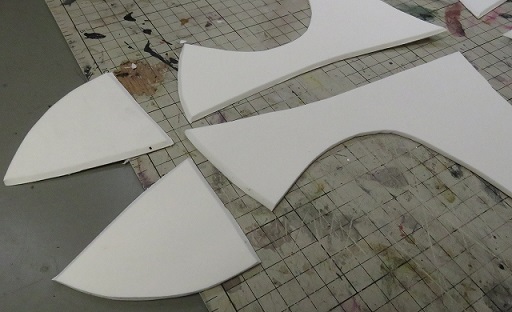

Cut material into the Templates form.

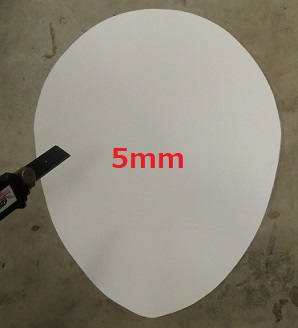

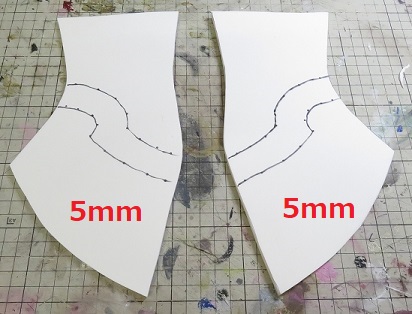

Cut out 5mm thick EVA foam.


**********************************************************************

EVA foam is a soft material.
You can process it easily.
Another name is EVA board, EVA zote, Craft foam etc.
I usually use one called "Lion board".
"Lion board" is sold only in Japan.

Watch video.

**********************************************************************



-------------------------------------------------------------------------------------------------------
【5mm厚COSボードをキャラヌノで買う】


【COSボードを楽天で買う】

-------------------------------------------------------------------------------------------------------
【5mm厚コスプレボードをAmazonで買う】


【コスプレボードを楽天で買う】

-------------------------------------------------------------------------------------------------------

**********************************************************************

Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

When you cut, put EVA foam on Cutting mat.
Don't cut in the air, while holding by hand.
Break a b blade frequentry, if you feel sharpness of using blade became bad.
If you want to do work more speedy, use "Running fire box cutter","Blade breaker".
"Running fire box cutter" can have 6 pieces blade inside.
"Blade breaker" can break easy and speedy.


Use Art knife PRO for small ornaments etc.

**********************************************************************


Make holes on the Templates. Mark them with a pen.

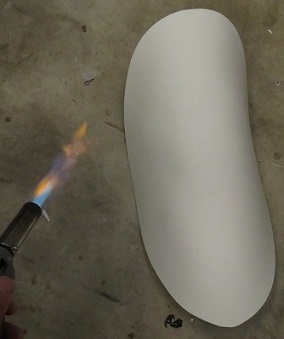

Bend by heating with a Gas toach or a Lighter or a Heat gun.(Be careful about fire)
(When the area is large, using Gas toach is easier.)



←ガス充填式ライターとガスボンベを使うとお得



Cut material into the Templates form.

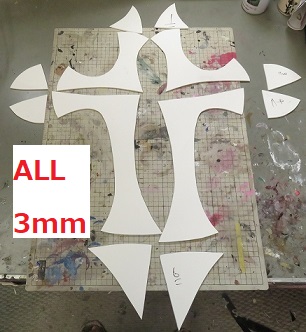

Cut out 3mm thick EVA foam.

-------------------------------------------------------------------------------------------------------
【3mm厚COSボードをキャラヌノで買う】


【COSボードを楽天で買う】

-------------------------------------------------------------------------------------------------------
【3mm厚コスプレボードをAmazonで買う】


【コスプレボードを楽天で買う】

-------------------------------------------------------------------------------------------------------

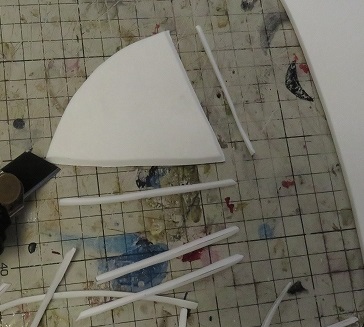

Cut it into slant with a Box cutter.


I finished cutting.

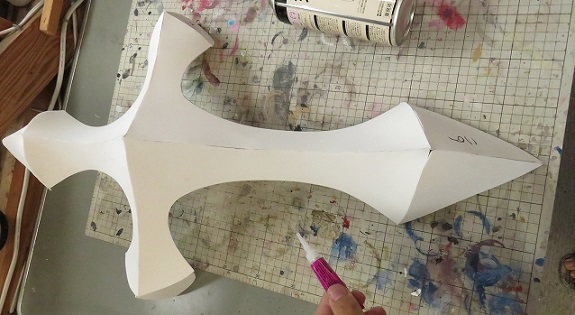

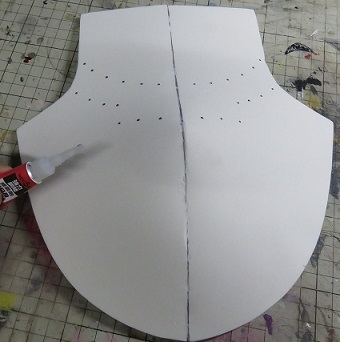

Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)


**********************************************************************


Super glue can glue a large surfaces easily.
But it can't glue a small surface such as this photo well


Then you should use a following spray.
I always use this.
Watch video.


Super glue accelerator
This can glue surfaces in several seconds.
When you use 100ml, you can make a armorset or about three weapons.
←100ml ←180ml ←420ml

About super glue
I use general liquid super glue.

**********************************************************************

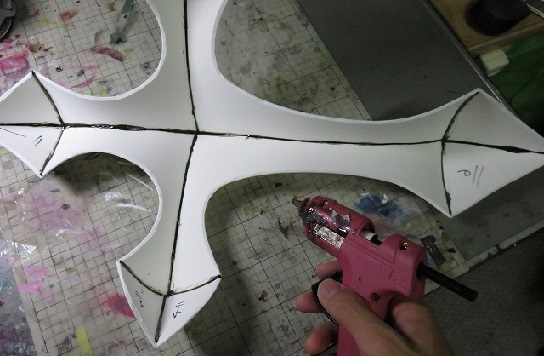

Reinforce by heaping a Hot melt(glue gun) on the backside of glueing places.



Glue with a Liquid super glue.


Cut material into the Templates form.

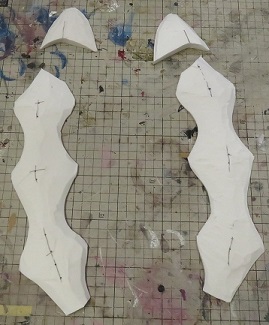

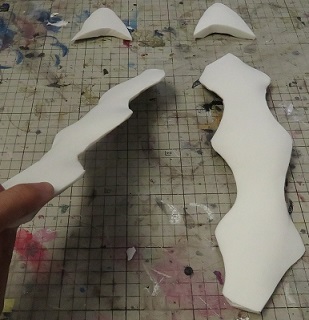

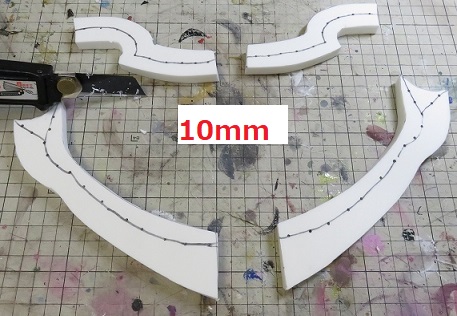

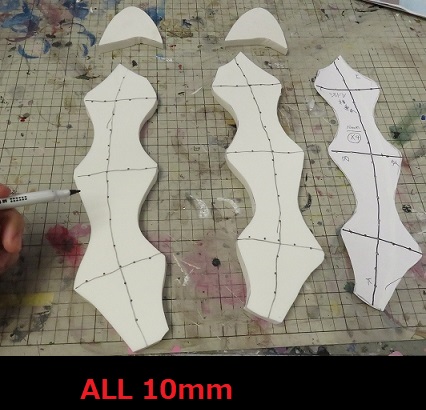

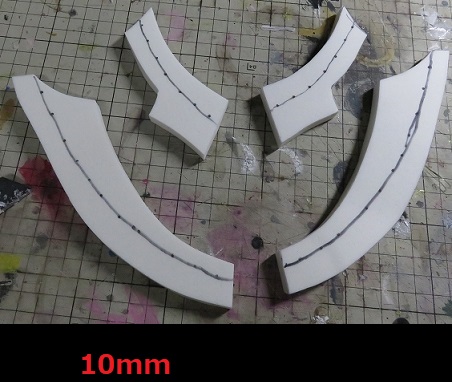

Cut out 10mm thick EVA foam.

-------------------------------------------------------------------------------------------------------
【10mm厚COSボードをキャラヌノで買う】


【COSボードを楽天で買う】

-------------------------------------------------------------------------------------------------------
【10mm厚コスプレボードをAmazonで買う】


【コスプレボードを楽天で買う】

-------------------------------------------------------------------------------------------------------

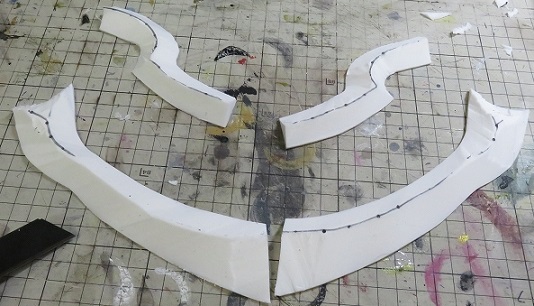

Form by shaving with a Box cutter.

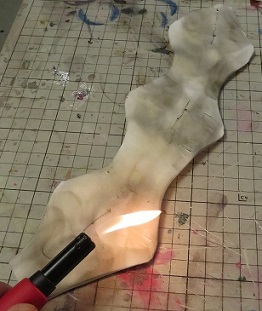

Bend with a Lighter while pushing the shaving side.


I finished bending.


Glue with a Liquid super glue.

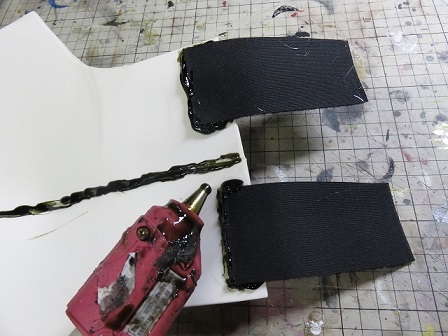

Glue Velcro with a Hot melt(glue gun).



Make a front armor.
Cut material into the Templates form.
Cut out 5mm thick EVA foam.

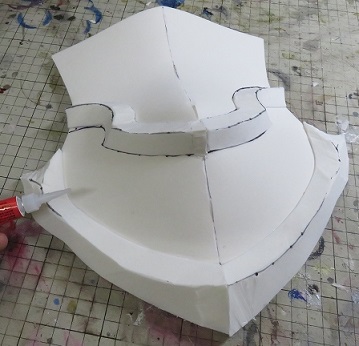

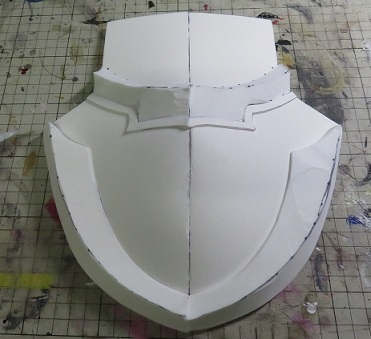

Glue with a Liquid super glue.


Cut material into the Templates form.
Cut out 10mm thick EVA foam.

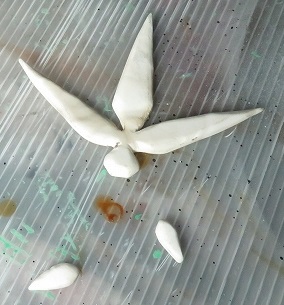

Form by shaving with a Box cutter.


Glue with a Liquid super glue.

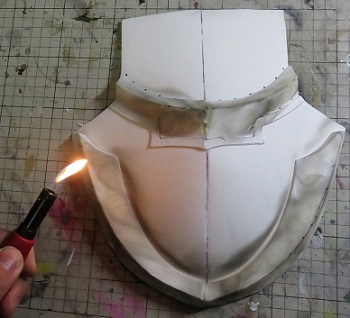

Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)

Glue Velcro with a Hot melt(glue gun).


Make a rear armor.
Cut material into the Templates form.
Cut out 5mm thick EVA foam.


Glue with a Liquid super glue.


Cut material into the Templates form.
Cut out 10mm thick EVA foam.


Form by shaving with a Box cutter.


Glue with a Liquid super glue.


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)


Glue Velcro with a Hot melt(glue gun).

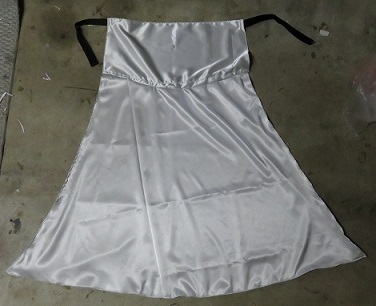

Make flaps.
Sew with a sewing machine.


Sew Velcro with a sewing machine.


Sew with a sewing machine.


Sew Velcro with a sewing machine.


Cut material into the Templates form.

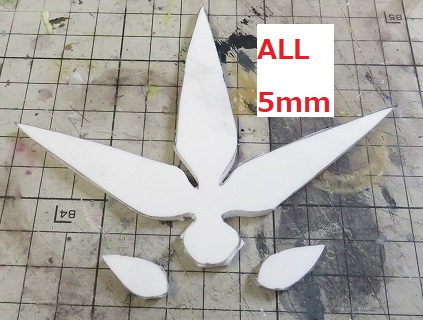

Cut out 5mm thick EVA foam.


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)

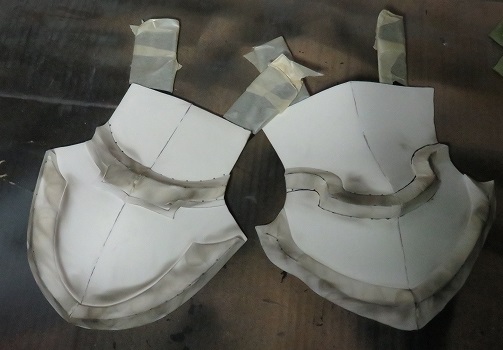

Stick Masking tape on the point you don't want to paint.



Stick Masking tape on the point you don't want to paint.


How to paint
Begin painting.
At first, paint a undercoat on EVA foam.
The effects are as follows.

-Color becomes well.
-It becomes hard to come off.
-Gloss comes out well.
-You can save quantity of the paint.

There are two methods.
-------------------------------------------------------------------------------------------
1.Gesso
This is easy.

【Merit】
-It's usable just to paint with a paint brush.
-Gesso don't contain thinner, then you can use it in the room.
-You can use also Acrylic paint.
-There are several colors one, white black etc.

【Demerit】
-It's easy to come off than Thinned "Bond G17"(one of liqud glue in Japan).
 Then, use this for weapons and armors without moving parts.
-The gross is smaller than Thinned "Bond G17"(one of liqud glue in Japan).

【Commodities page】
Gesso or Black Gesso
or

【Paint】
Lacquer Spray or Bottle lacquer paint or acrylic paint
or
-------------------------------------------------------------------------------------------
2."Bond G17"(one of liqud glue in Japan)
This is difficult, however it's almighty.

【Merit】
-It'st hard to peel off.
-It can use for PVC pipe or plastic sheets.

【Demerit】
-"Bond G17" is japanese commodity.
 Then you can't get it easily.
 Please use others. For example, you can substitute wood glue for it.
-You must thin it with lacquer thinner.
-It needs thinner, then you must work outdoors.
-It burns easily.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
The parts will be charred in seconds.

【Tutorial video】


【Commodities page】
"Bond G17"(one of liqud glue in Japan) thined with lacquer thinner
-for big things -for small things
-------------------------------------------------------------------------------------------
-About paint
I use following paint.


You can use acrylic paint, when you use Gesso.

-------------------------------------------------------------------------------------------

I use "Zoukei be-su" as undercoat this time.
However it's sold only in Japan.
Use Gesso or Thinned "Bond G17"(one of liqud glue in Japan) in substitution for "Zoukei be-su".


Paint "Zoukei be-su" twice with a brush.
Dry it about 2 ~ 6 hours.

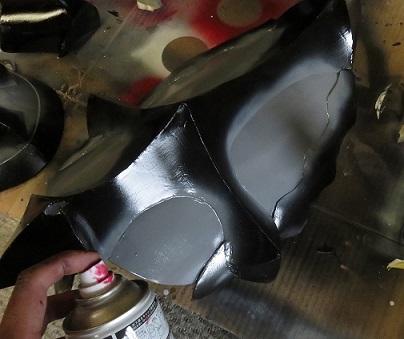

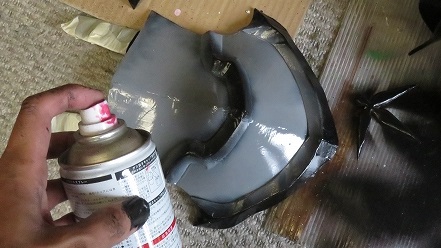

Paint black color as undercoat color with Lacquer Spray.
Paint gray color as undercoat color with Lacquer Spray.


Paint black color as undercoat color with Lacquer Spray.
Paint gray color as undercoat color with Lacquer Spray.

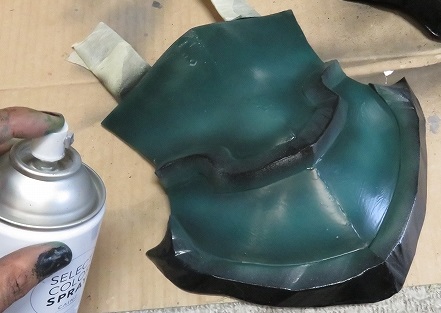

Paint green with Lacquer Spray.


Paint green with Lacquer Spray.


Paint green with Lacquer Spray.

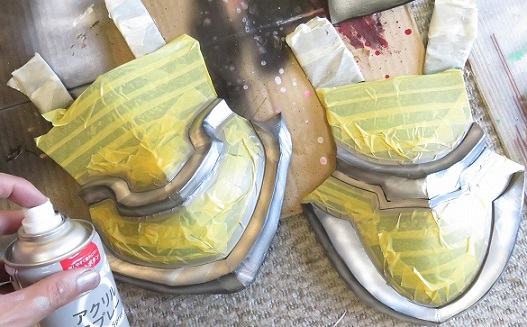

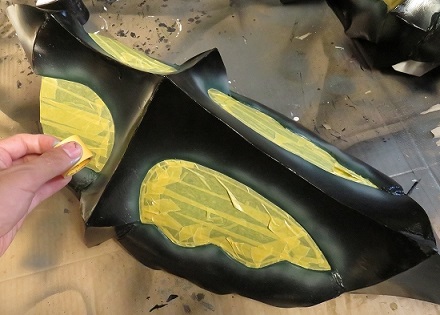

Stick Masking tape on the point you don't want to paint.


Stick Masking tape on the point you don't want to paint.

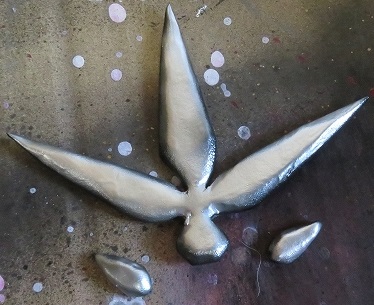

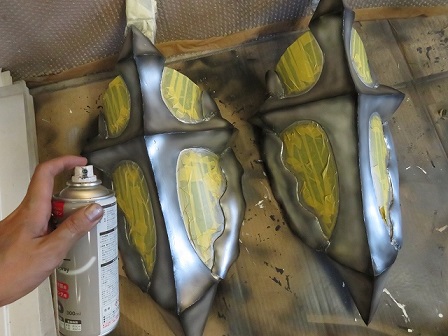

Paint silver with Lacquer Spray.


Paint silver with Lacquer Spray.


Paint silver with Lacquer Spray.


Actually, I used a Airbrush too.
If you want to make light and shade, use it.
About Airbrush is here.

←私が使っているエアブラシとコンプレッサー

After painting

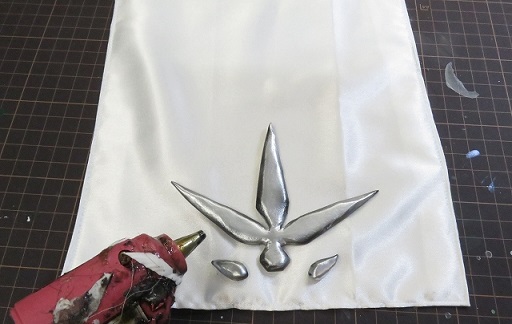

Glue with a Hot melt(glue gun).

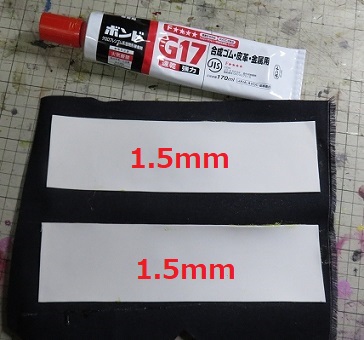

Cut out 1.5mm or 2mm thick EVA foam.
Glue Synthetic leather with "Bond G17"(one of liqud glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.



[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

PUストレッチレザー 生地 無地 全52色 黄 オレンジ 赤 ピンク 青系 17色布幅130cm 50cm以上10cm単位販売
価格:176円(税込、送料別) (2019/1/23時点)


[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

ソフトエナメル 生地 無地 42色 モノトーン、ゴールド・シルバー系 全42色 布幅130cm 50cm以上10cm単位販売
価格:188円(税込、送料別) (2019/1/23時点)




Glue Synthetic leather with "Bond G17"(one of liqud glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.

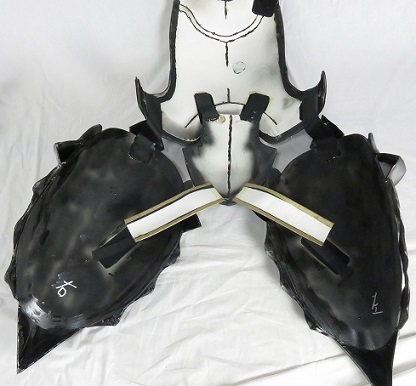

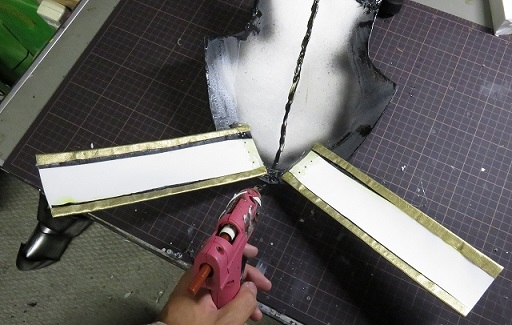

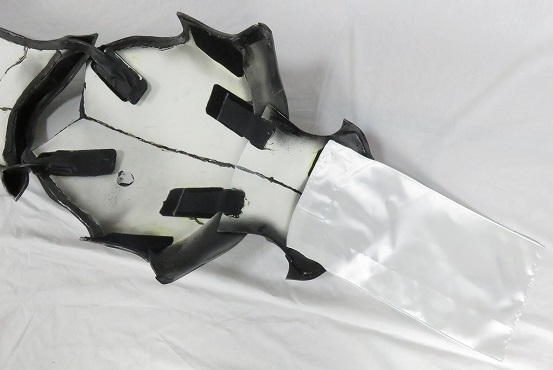

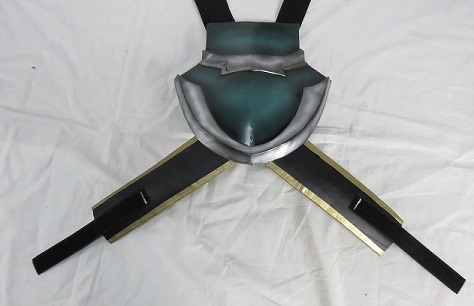

Glue with a Hot melt(glue gun).


Sew Velcro with a sewing machine.

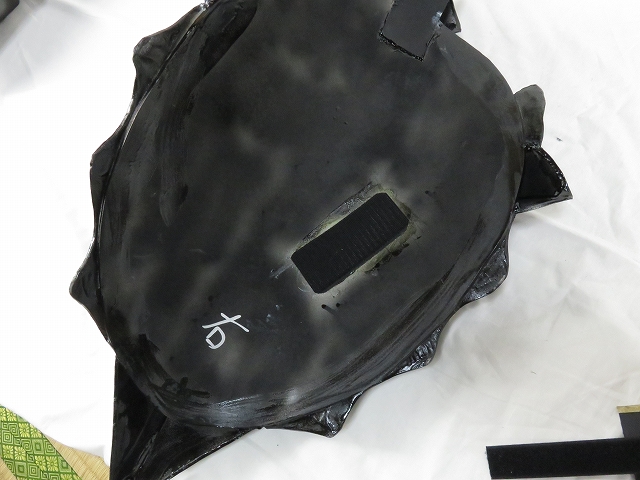

Glue Velcro with "Bond G17"(one of liqud glue in Japan) or a Hot melt(glue gun). Detailes are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
