Trinity Blood
Abel Nightroad(ROM volume 7 version)
How to make Holster (with templates)


Materials
[Materials for making templates]
-"Kousakuyousi"(one of hard paper in Japan) 5piece
-Scotch tape(Sellotape) 3piece
-Packaging tape(parcel tape) 1piece

[Main materials]
-EVA foam
→1.5mm or 2mm thick 100cm X 50cm
-Synthetic leather 100cm X 50cm
-"Bond G17"(one of liqud glue in Japan) 100ml
-Liquid super glue 5pieces
-Hot melt(glue gun) 10piece
-Velcro 10cm
-Rivet 30piece
-Snap 10piece
-Eyelet 30piece
-Buckle 3piece

[Painting materials]
-

Materials cost
1000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Lighter
-Paint tools, such as a paintbrush
-Pliers
-Punch and hammer
-Tool set required for rivet
-Tool set required for snap
-Eyelet punch

Convenient tools when you have
-Art knife PRO
-Super glue Accelerator

Work time
6Hours

Spec
-

Template data
PDF format(A4 size)

-How to print is here.
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

Completion drawing


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.


-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

How to make templates
Make Templates from "Kousakuyousi"(one of hard paper in Japan).



How to build
Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.


**********************************************************************

EVA foam is a soft material.
You can process it easily.
Another name is EVA board, EVA zote, Craft foam etc.
I usually use one called "Lion board".
"Lion board" is sold only in Japan.

Watch video.

**********************************************************************

-------------------------------------------------------------------------------------------------------
【1.5mm厚COSボードをキャラヌノで買う】


【COSボードを楽天で買う】

-------------------------------------------------------------------------------------------------------
【1.5mm厚コスプレボードをAmazonで買う】


【コスプレボードを楽天で買う】

-------------------------------------------------------------------------------------------------------

**********************************************************************

Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

When you cut, put EVA foam on Cutting mat.
Don't cut in the air, while holding by hand.
Break a b blade frequentry, if you feel sharpness of using blade became bad.
If you want to do work more speedy, use "Running fire box cutter","Blade breaker".
"Running fire box cutter" can have 6 pieces blade inside.
"Blade breaker" can break easy and speedy.


Use Art knife PRO for small ornaments etc.

**********************************************************************

Glue Synthetic leather with "Bond G17"(one of liqud glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.

PUストレッチレザー 生地 無地 全52色 黄 オレンジ 赤 ピンク 青系 17色布幅130cm 50cm以上10cm単位販売 価格：176円（税込、送料別) (2019/1/23時点)

ソフトエナメル 生地 無地 42色 モノトーン、ゴールド・シルバー系 全42色 布幅130cm 50cm以上10cm単位販売 価格：188円（税込、送料別) (2019/1/23時点)

Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)


**********************************************************************


Super glue can glue a large surfaces easily.
But it can't glue a small surface such as this photo well


Then you should use a following spray.
I always use this.
Watch video.


Super glue accelerator
This can glue surfaces in several seconds.
When you use 100ml, you can make a armorset or about three weapons.
←100ml ←180ml ←420ml

About super glue
I use general liquid super glue.

**********************************************************************

Glue Synthetic leather with "Bond G17"(one of liqud glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.

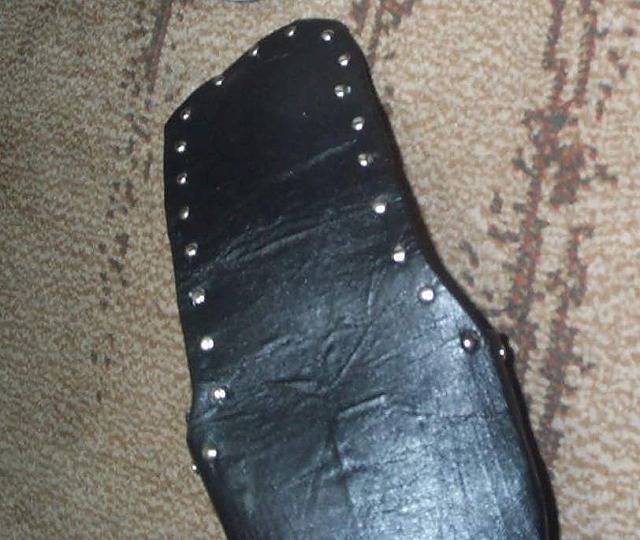

Attach Rivet with a striking stick. Details are here.


Make belts.
Cut out 1.5mm or 2mm thick EVA foam.
Glue Synthetic leather with "Bond G17"(one of liqud glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.



I finished glueing.


Attach a buckle.


I finished attaching.


Attach Eyelet with a Eyelet punch. Detailes are here.


I finished attaching.


Paste belt.
Glue with a Liquid super glue.


Glue Velcro with "Bond G17"(one of liqud glue in Japan) or a Hot melt(glue gun). Detailes are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.





Make a thing letted belt loop.
Attach Snap with a striking stick. Details are here.
