How to make Short sword (with templates)


Materials
[Materials for making templates]
-"Kousakuyousi"(one of hard paper in Japan) 5piece
-Scotch tape(Sellotape) 3piece
-Packaging tape(parcel tape) 1piece

[Main materials]
-EVA foam
→10mm thick 100cm X 10cm
-"Kousakuyousi"(one of hard paper in Japan)1piece
-Synthetic leather 100cm X 20cm
-Liquid super glue 1piece
-Hot melt(glue gun) 10piece
-Aluminum stick 1piece
-PVC pipe(diameter 2.6cm) 1piece

[Painting materials]
1.When a undercoat is Gesso
-Gesso 50ml
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) or acrylic paint proper quantity*

2.When a undercoat is Thinned "Bond G17"(one of liqud glue in Japan)
-"Bond G17"(one of sticky glue in Japan) 50ml
-lacquer thinner 50ml
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*
-Masking tape 1piece

*The paiting area is written in the package, refer it. Details are here.

Materials cost
1000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter etc(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Lighter
-Pipe cutter or Saw
-Paint tools (brush etc)
-Pinvice or Prick punch etc
-Nippers

Convenient tools when you have
-Standard art knife,Cushion grip art knife
-Super glue Accelerator

Work time
4Hours

Spec
Weight 70g
Length 40cm

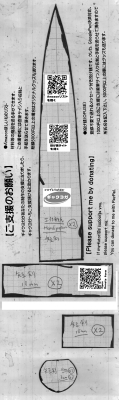

Template data
PDF format(A4 size)

-How to print is here.
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

Completion drawing


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.

-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

Make the template
Make Templates from "Kousakuyousi"(one of hard paper in Japan).
When you want to know how to make Templates of weapons, browse this page.



I finished making the Templates.


Cut Templates every parts.


Please support me by donating
If my tutorials supports you, please support me.
You can donate to me from 1$ with PayPal.
I'm gonna use donation to make new props, thanks.
Click this ↓.


History.
Lintylyn san, thanks!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.


EmDash san, thanks!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.


Building the blade
Make a blade.
Cut material into the Templates form.
Cut out "Kousakuyousi"(one of hard paper in Japan).


I finished cutting.


"Kousakuyousi"(one of hard paper in Japan) is sold in only Japan.
It's harder than Drawing paper. The thickness is about 0.5mm.
I'm sure you can't get it.
Then, substitute various thin plastic sheets.


Crease by tracing with a ballpointpen.
(The red line is the crease.)


Make crease to blade.


Cut the tip of blade a little.


Use a Aluminum stick.
You can substitute various metalic sticks.
Cut it into appropriate length with Nippers.


Glue the Aluminum stick.
Glue with a Hot melt(glue gun).


↑ギャクヨガが愛用しているグルーガンです、口が広くてとても使いやすい！

Heap a Hot melt(glue gun) for reinforcement.


Glue another blade.
Glue with a Hot melt(glue gun).


I finished glueing.


Glue edges of the blade.
Glue with "Bond G17"(one of sticky glue in Japan).
Paint it with a broken piece of "Kousakuyousi"(one of hard paper in Japan) as a brush.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.



Reinforce the blade by painting Liquid super glue on the edge.


I finished glueing.


Please support me by donating
If my tutorials supports you, please support me.
You can donate to me from 1$ with PayPal.
I'm gonna use donation to make new props, thanks.
Click this ↓.


History.
Lintylyn san, thanks!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.


EmDash san, thanks!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.


Building the guard
Cut material into the Templates form.
Cut out 10mm thick EVA foam.


**********************************************************************

EVA foam is a soft material.
You can process it easily.
Another name is EVA board, EVA zote, Craft foam etc.
I usually use one called "Lion board".
"Lion board" is sold only in Japan.

Watch video.

**********************************************************************

【10mm厚COSボードの通販】
●Amazon


●楽天

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 10mm厚 白
価格：986円（税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 10mm厚 白
価格：1849円（税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Lサイズ(900mm×1800mm) 10mm厚 白
価格：6274円（税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 10mm厚 黒
価格：1232円（税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 10mm厚 黒
価格：2353円（税込、送料別) (2019/10/23時点)

●キャラヌノ


【10mm厚コスプレボードの通販】


●楽天

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白10mm×660mm×500mm
価格：880円（税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード　白10mm×660mm×1000mm
価格：1540円（税込、送料別) (2019/10/23時点)


**********************************************************************

Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

When you cut, put EVA foam on Cutting mat.
Break the blade frequentry, if you feel sharpness of the blade became bad.
I use "Running fire box cutter","Blade breaker" too.
"Running fire box cutter" can have 6 pieces blade inside.
"Blade breaker" can break easy and speedy.


Use Standard art knife or Cushion grip art knife for small ornaments etc.

**********************************************************************

I finished cutting.


Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)


**********************************************************************


Super glue can glue a large surfaces easily.
But it can't glue a small surface such as this photo well


Then you should use a following spray.
I always use this.
Watch video.


Super glue accelerator
This can glue surfaces in several seconds.
When you use 100ml, you can make a armorset or about three weapons.
←100ml ←180ml ←420ml

About super glue
I use general liquid super glue.

**********************************************************************

Make hole with a Pinvice or Prick punch etc.



Let core pass to the hole.


Glue with a Hot melt(glue gun).


Cut it into appropriate length.
Make it a little short length than the grip.


I finished cutting.


Please support me by donating
If my tutorials supports you, please support me.
You can donate to me from 1$ with PayPal.
I'm gonna use donation to make new props, thanks.
Click this ↓.


History.
Lintylyn san, thanks!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.


EmDash san, thanks!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.


Building the hilt
Use a PVC pipe(diameter 2.6cm).
Cut a PVC pipe.
PVC pipe can be cut with a saw.
But a Pipe cutter is more better.
It can cut quickly and neatly.



This is a video of cutting method of PVC pipe, bending method, jointing method.


Cover the PVC pipe.
Glue with a Hot melt(glue gun).


Heap a Hot melt(glue gun) the inside of PVC pipe.


I finished heaping.


Make a grip end.
Cut material into the Templates form.
Cut out 10mm thick EVA foam.


Glue with a Liquid super glue.


Glue with a Hot melt(glue gun).


I finished glueing.


Heap a Hot melt(glue gun) on the border.


Draw patterns with a Hot melt(glue gun).


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)


↑ギャクヨガ愛用ライター、使いやすい！ ガスがなくなったらボンベで充填しましょう

I finished toasting.


Please subscribe and follow
Please subscribe my channel!


Please follow my twitter!


Painting
Begin painting.
At first, paint a undercoat on EVA foam.
The effects are as follows.

-Color becomes well.
-It becomes hard to come off.
-Gloss comes out well.
-You can save quantity of the paint.

There are two methods.
-------------------------------------------------------------------------------------------
1.Gesso
This is easy.

【Merit】
-It's usable just to paint with a paint brush.
-Gesso don't contain thinner, then you can use it in the room.
-You can use also Acrylic paint.
-There are several colors one, white black etc.

【Demerit】
-It's easy to come off than Thinned "Bond G17"(one of liqud glue in Japan).
 Then, use this for weapons and armors without moving parts.
-The gross is smaller than Thinned "Bond G17"(one of liqud glue in Japan).

【Commodities　page】
Gesso or Black Gesso
or

【Paint】
Lacquer Spray or Bottle lacquer paint or acrylic paint
or
-------------------------------------------------------------------------------------------
2."Bond G17"(one of liqud glue in Japan)
This is difficult, however it's almighty.

【Merit】
-It'st hard to peel off.
-It can use for PVC pipe or plastic sheets.

【Demerit】
-"Bond G17" is japanese commodity.
 Then you can't get it easily.
 Please use others. For example, you can substitute wood glue for it.
-You must thin it with lacquer thinner.
-It needs thinner, then you must work outdoors.
-It burns easily.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
The parts will be charred in seconds.

【Tutorial video】


【Commodities　page】
"Bond G17"(one of sticky glue in Japan) thined with lacquer thinner
-for big things -for small things
-------------------------------------------------------------------------------------------
-About paint
I use following paint.


You can use acrylic paint, when you use Gesso.

-------------------------------------------------------------------------------------------

I use Thinned "Bond G17"(one of liqud glue in Japan) in this tutorial.
But I recommend Gesso for begginers.


Paint "Bond G17"(one of sticky glue in Japan) thined with lacquer thinner three or four times.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
(It will char in seconds.)
Dry it about 2 ~ 6 hours.


Paint black color as undercoat color with Lacquer Spray.


Drybrush silver Bottle lacquer paint with a paint brush.
Paint gold Bottle lacquer paint by Drybrush painting.


Drybrush painting is easy, you can do it with a paint brush.
Read here or watch this video.


When you paint Bottle lacquer paint, use a paintbrush,silicon cup(Use as a paint plate. It can easy to peel paints after dry.),
panint stick, thinner.



After painting
Cut Synthetic leather into a belt form.
Glue with a Hot melt(glue gun).






Complete phots
Thanks for browsing!
