How to make Yuta Okkotu's katana (with templates)
*Sheath tutorial is here


Watch tutorial video at first


Materials for the katana
[Materials for making templates]
-"Kousakuyousi"(one of hard paper in Japan) 5sheets
-Scotch tape(Sellotape) 1pieces
-Packaging tape(parcel tape) 1piece

[Main materials]
-EVA foam
→1.5mm or 2mm thick 100cm X 10cm
→3mm thick 100cm X 10cm
→5mm thick 100cm X 20cm
→10mm thick 100cm X 10cm
-"Bond G17"(one of sticky glue in Japan) 100ml
-Clear color plastic sheets 100cm X 10cm
-Liquid super glue 3pieces
-Hot melt(glue gun) 10pieces
-Iron gardening stick(diameter 0.8cm) 1piece
-LED tape 70cm
-LED valve for cars 1piece
-12V Battery 1piece
-Lead wire, Switch, Battery case etc 1set

[Painting materials]
1.When undercoat is Gesso
-Gesso 50ml
-Paintbrush 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) or acrylic paint proper quantity*
-Masking tape 1piece
-Undercoat for plastic 1piece

2.When undercoat is Wood glue thinned with water
-Wood glue 50ml
-Water a little
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*
-Masking tape 1piece
-Undercoat for plastic 1piece

3.When undercoat is Thinned "Bond G17"(one of liqud glue in Japan)
-"Bond G17"(one of sticky glue in Japan) 50ml
-lacquer thinner 50ml
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*
-Masking tape 1piece
-Undercoat for plastic 1piece

*The paiting area is written in the package, refer it. Details are here.

Materials cost to make the katana
2000Yen (about 130Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Paste
-Scissors
-Box cutter etc(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Paint tools (brush etc)
-Tools to cut Iron gardening stick(Freeway coping saw, Nippers, etc)

Convenient tools when you have
-Standard art knife,Cushion grip art knife
-Super glue Accelerator

Work time to make the katana
8hours

Spec
-Katana
Weight 150g
Length 100cm

-Sheath
Weight 100g
Length 80cm

Template data
PDF format(A4 size)

How to download & print
Read this.

About commercial use
Please follow this rule.

Additional explanation
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

Completion image
Caution Bellow photo is a image photo aftet completing.
Caution Don't print bellow photo.
Caution Read "How to print".


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.

-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

-If accedents happens, it's self-responsibility. Keep safety environment.

Please support me
If my tutorials supported you, please support me.

-Support method 1

Please join my YouTube channel's membership.
Just ＄0.99 per month.
These are membership benefits.
-Early access of new videos
-Prioritize replying to comments
-Videos for only members
etc

-Support method 2
Please suppor me by YouTube's SUPER THNAKS.
It's the supporting function for Youtube videos.
It look like SUPER CHAT.
Click this banner.


Thanks, everybody!

Aug,16,25
Thanks for donation by YouTube's SUPER THANKS!
I'm so happy my tutorials helped you!

AnyaKimochi-san's channel


Jun,17,25
Thanks for donation by YouTube's SUPER THANKS!
I'm so happy my video helped you!
Please enjoy your cosplay!


Jun,17,25
Thanks for donation by YouTube's SUPER THANKS!
I'm so happy my video helped you!
Please enjoy make your props!


More history

Make the template
Make Templates from "Kousakuyousi"(one of hard paper in Japan).
When you want to know how to make Templates of weapons, browse this page.



Building the blade


Cut material into the Templates form.
Cut out Clear color plastic sheets.


プラスチック板は↓を利用した。


Use a Iron gardening stick(diameter 0.8cm).
Use it as a core.
Cut it wit nippers, Freeway coping saw, etc.
This stick is just a iron stick.
You can substitute various metalic sticks.


園芸用の棒はホームセンターや100均で買った方が安い。



I finished cutting.


Peel with a Box cutter etc to easily bend.


Bend Iron gardening stick by hand.


I finished bending.


Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)





Super glue accelerator makes hardening time short.
It's so useful.
Watch this video.

When you use 100ml, you can make a armorset or about two, three weapons.



I finished glueing.


Illuminate with LED tape.
Cut with a scissors.
It lights, when it's connected a 12V Battery. Detailes are here.



I finished cutting.


Make it width 0.8mm.
Cut the both ends with sccissors.


Solder Lead wire.
*Don't share Soldering iron for EVA foam and Soldering iron for soldering.
Soldering iron becomes unusable.




ギャクヨガが使っているハンダゴテです、安全の為に台も買いましょう。

I finished soldering.


Glue with a Liquid super glue.





Super glue accelerator makes hardening time short.
It's so useful.
Watch this video.

When you use 100ml, you can make a armorset or about two, three weapons.



I finished glueing.


Glue another blade.
Glue with a Liquid super glue.


I finished glueing.


Glue edges of the blade.
Glue with Clear color sticky glue.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.



I finished glueing.


Fill the back of blade with a Hot melt(glue gun).


ギャクヨガが愛用しているグルーガンです、口が広くてとても使いやすい！

Cut out Clear color plastic sheets.


Glue with Clear color sticky glue.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.


Cut unnecessary parts with a Box cutter etc.


Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.





EVA foam is soft material.
You can process it easily.
Other names are EVA board, EVA zote, Craft foam etc.
Cosplayers all over the world use this.
It's sold in Amazon or AliExpress etc.

Introduction video





Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

I always use "Running fire box cutter","Blade breaker",Cutting mat.
"Blade breaker" can break the blade easily.


Use Standard art knife or Cushion grip art knife to cut small ornaments etc, too.
Standard art kinfe is for 1.5mm thickness and 3mm thickness.
Cushion grip art knife is for 5mm thickness and 10mm thickness.



↑刃はついてないので→の替え刃とセットで買うこと





●1.5mm厚コスプレボードを楽天で買う


送料無料の5枚セット



●1.5mm厚コスプレボードをAmazonで買う


●2mm厚COSボード匠を楽天で買う(COSボード匠はAmazonでは売ってません)



Glue with a Liquid super glue.


Present state.


Building the guard


Cut material into the Templates form.
Cut out 5mm thick EVA foam.
Cut out 1.5mm or 2mm thick EVA foam.





●5mm厚コスプレボードを楽天で買う


送料無料の5枚セット


●5mm厚コスプレボードをAmazonで買う


●5mm厚COSボード匠を楽天で買う(COSボード匠はAmazonでは売ってません)



Glue with a Liquid super glue.


I finished glueing.


Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.
Glue with a Liquid super glue.


Glue with a Liquid super glue.


I finished glueing.

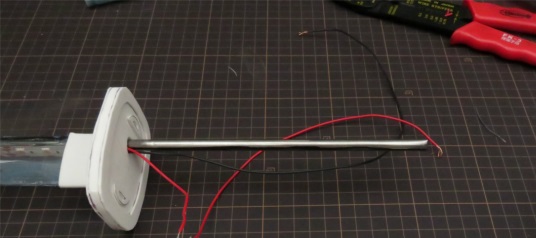

Building the hilt


Cut material into the Templates form.
Cut out 5mm thick EVA foam.
Cut out 10mm thick EVA foam.
Glue with a Liquid super glue.





●10mm厚コスプレボードを楽天で買う


●10mm厚コスプレボードをAmazonで買う


●10mm厚COSボード匠を楽天で買う(COSボード匠はAmazonでは売ってません)



I finished glueing.


Cut out with a Box cutter etc.


Cut Lead wire.


Solder a Switch.



I finished soldering.


Glue with a Liquid super glue.


Fill it up with a Hot melt(glue gun).


Cut material into the Templates form.
Cut out 5mm thick EVA foam.
Glue with a Liquid super glue.


I finished glueing.


Cut out with a Box cutter etc.


Solder a Battery case.
The Battery case is a 12V Battery case or N size Battery case.



I finished soldering.


Glue with a Liquid super glue.


I finished glueing.


Fill it up with a Hot melt(glue gun).


Round off the corners with a Box cutter etc.


Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.
Glue with a Liquid super glue.





●3mm厚コスプレボードを楽天で買う




送料無料の5枚セット


●3mm厚コスプレボードをAmazonで買う


※COSボード匠は3mm厚の商品は存在しません


Round off the corners with a Box cutter etc.


Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.
Glue with a Liquid super glue.


I finished glueing.


Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.


Mark holes on the Templates.


I finished marking.


Carve the pattern with a Soldering iron.
(Don't breathe in the smoke and don't put in eyes. If accedents happens, it's self-responsibility.)
Use other Soldering iron as for solderling parts.
(Because, Soldering iron become unable to solder parts by carving EVA foam.)


Glue with a Liquid super glue.


I finished glueing.


Present state.



Please follow X(Twitter)
Please follow my X(twitter).


Painting
Stick Masking tape on the point you don't want to paint.


細か所は9mm幅(左)、広い所は30mm幅(右)を使ってます

Stick Masking tape on the point you don't want to paint.


Begin painting.
At first, paint undercoat on EVA foam.
The effects are as follows.

-Color becomes well.
-It becomes hard to come off.
-Gloss comes out well.
-You can save quantity of the paint.


1.Gesso
This is easy.

【Merit】
-It's usable just to paint with a paint brush.
-Gesso don't contain thinner, then you can use it in the room.
-You can use also Acrylic paint.
-There are several colors one, white black etc.

【Demerit】
-It's easy to come off than Thinned "Bond G17"(one of liqud glue in Japan).
 Then, use this for weapons and armors without moving parts.
-The gross is smaller than Thinned "Bond G17"(one of liqud glue in Japan).

【Commodities　page】
Gesso or Black Gesso
黒いジェッソと詰替えパック


白いジェッソと詰替えパック



2.Wood glue thinned with water
This is so easy.

【Merit】
-Someone can get
-Someone can use easy

【Demerit】
-Drying time is a little long.

【Commodities　page】


3."Bond G17"(one of liqud glue in Japan)
This is dangerous method, it's most likely happening fire.
I wrote about this method as a archive,
However I don't recommend this.
I don't use this method now, I use other method now.
If accedents happens, it's self-responsibility.

【Merit】
-It'st hard to peel off.
-It can use for PVC pipe or plastic sheets.

【Demerit】
-"Bond G17" is japanese commodity. Then you can't get it easily.
-It needs thinner, then you must work outdoors.
-It burns easily.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
The parts will be charred in seconds.

【Commodities　page】
"Bond G17"(one of sticky glue in Japan) thined with lacquer thinner

チューブ入り(箱入り)の方が使い勝手はいいですが、缶入りの方がコスパは断然良いです。



-About paint
I use following paint.


You can use acrylic paint, when you use Gesso.


・About mask
In spray painting or lacquer painting, use a mask for painting.
←フィルタ付きセット商品 ←替えフィルタ


I use "Zoukei be-su" as undercoat this time.
But it's sold only in Japan.
Substitute Gesso or Wood glue thinned with water.


Paint "Zoukei be-su" twice with a brush.
Dry it about 2 ~ 6 hours.


Paint black as undercoat color with Lacquer Spray.


Paint gray as undercoat color with Lacquer Spray.


Paint red with Lacquer Spray.


Paint gold Bottle lacquer paint by Drybrush painting.


Drybrush painting is easy, you can do it with a paint brush.
Read here or watch this video.


When you paint Bottle lacquer paint, use thinner, sticks for mixing, brushes, cups.





Draw lines with a Magic Marker.


Stick Masking tape on the point you don't want to paint.


Paint Undercoat for plastic.



Paint white Bottle lacquer paint with a Airbrush.
Paint it thin.





●初心者にオススメ
安価なUSB充電式エアブラシ。
これ一つでエアブラシ塗装が手軽に行えます。
エアブラシ塗装を手軽に始めるならまずはこれ。


●ギャクヨガが使っている物を使いたいなら
性能は高いですが本格的です。
左がエアブラシ本体、右が空気を送り出す装置で両方必要です。


Process Masking tape.
Stick Masking tape on a Cutting mat.


Mark the foarm with the Templates.
Cut out with a Box cutter etc.


Stick Masking tape on the point you don't want to paint.


I finished sticking.


Paint silver with Lacquer Spray.


After painting
Set a 12V Battery.
You can change the battery anytime.



Watch video too


Complete














Please follow X(Twitter)
My X account is here.

About using for business
When you use my contents for business, follow this rule.
