How to make katana-giyuu Tomioka's Nichirin blade (with templates)
*Sheath tutorial is here


Materials for the katana
[Materials for making templates]
-"Kousakuyousi"(one of hard paper in Japan) 5sheets
-Scotch tape(Sellotape) 1pieces
-Packaging tape(parcel tape) 1piece

[Main materials]
-EVA foam
→1.5mm or 2mm thick 100cm X 10cm
→5mm thick 100cm X 10cm
→10mm thick 100cm X 10cm
-"Kousakuyousi"(one of hard paper in Japan) 4sheets
-Liquid super glue 3pieces
-Hot melt(glue gun) 10pieces
-Iron gardening stick(diameter 0.6 or 0.8cm) 1piece
-Cord 4m

[Painting materials]
1.When a undercoat is Gesso
-Gesso 50ml
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) or acrylic paint proper quantity*
-Masking tape 1piece

2.When a undercoat is Thinned "Bond G17"(one of liqud glue in Japan)
-"Bond G17"(one of sticky glue in Japan) 50ml
-lacquer thinner 50ml
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*
-Masking tape 1piece

*The paiting area is written in the package, refer it. Details are here.

Materials cost to make the katana
1000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter etc(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Lighter
-Paint tools (brush etc)
-Nippers
-Tools to cut Iron gardening stick(Freeway coping saw, Nippers, etc)

Convenient tools when you have
-Standard art knife,Cushion grip art knife
-Super glue Accelerator

Work time to make the katana
10hours

Spec
-Katana
Weight 130g
Length 100cm

-Sheath
Weight 50g
Length 100cm

Template data
PDF format(A4 size)

-How to print is here.
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

Completion drawing


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.

-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.


Tutorial video
When you watch this video before reading this page, you can understand this page better.


Make the template
Make Templates from "Kousakuyousi"(one of hard paper in Japan).
When you want to know how to make Templates, browse this page.



Please support me by donating
If my tutorials supports you, please support me.
You can donate to me from 1$ with PayPal.
I'm gonna use donation to make new props, thanks.
Click this ↓.


History.
Lintylyn san, thanks!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.


EmDash san, thanks!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.


Building the blade
Cut "Kousakuyousi"(one of hard paper in Japan) into a belt form.


Put "Kousakuyousi"(one of hard paper in Japan) side by side.


Paste them



"Kousakuyousi"(one of hard paper in Japan) is sold in only Japan.
It's harder than Drawing paper. The thickness is about 0.5mm.
I'm sure you can't get it.
Then, substitute various thin plastic sheets.


Cut material into the Templates form.
Cut out "Kousakuyousi"(one of hard paper in Japan).


Mark Kanji with a pen and the Templates.


I finished marking.


Cut out with a Box cutter etc.


Cut material into the Templates form.
Cut out "Kousakuyousi"(one of hard paper in Japan).
Cut out 1.5mm or 2mm thick EVA foam.


**********************************************************************

EVA foam is a soft material.
You can process it easily.
Another name is EVA board, EVA zote, Craft foam etc.
I usually use one called "Lion board".
"Lion board" is sold only in Japan.

Watch video.

**********************************************************************

【1.5mm厚COSボードの通販】
●Amazon


●楽天

COSボード Sサイズ(450mm×600mm) 1.5mm厚 白 価格：359円（税込、送料別) (2019/10/23時点)

COSボード Mサイズ(600mm×900mm) 1.5mm厚 白 価格：672円（税込、送料別) (2019/10/23時点)

COSボード Lサイズ(900mm×1800mm) 1.5mm厚 白 価格：1681円（税込、送料別) (2019/10/23時点)

COSボード Mサイズ(600mm×900mm) 1.5mm厚 黒 価格：672円（税込、送料別) (2019/10/23時点)

COSボード（シールタイプ）Mサイズ(600mm×900mm) 1.5mm厚 白 価格：1120円（税込、送料別) (2019/10/23時点)

●キャラヌノ


【1.5mm厚コスプレボードの通販】
●Amazon


●楽天

コスプレボード　白1.5mm×660mm×1000mm 価格：605円（税込、送料別) (2019/10/23時点)

コスプレボード　黒1.5mm×660mm×1000mm 黒だから裏塗り処理を省略出来る 価格：660円（税込、送料別) (2019/10/23時点)

コスプレボードシール　白1.5mm×660mm×500mm 接着剤不要のシール接着、装飾等に 価格：594円（税込、送料別) (2019/10/23時点)

コスプレボードシール　黒1.5mm×660mm×500mm 接着剤不要のシール接着、装飾等に 価格：682円（税込、送料別) (2019/10/23時点)

**********************************************************************

Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

When you cut, put EVA foam on Cutting mat.
Break the blade frequentry, if you feel sharpness of the blade became bad.
I use "Running fire box cutter","Blade breaker" too.
"Running fire box cutter" can have 6 pieces blade inside.
"Blade breaker" can break easy and speedy.


Use Standard art knife or Cushion grip art knife for small ornaments etc.

**********************************************************************

Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)


**********************************************************************


Super glue can glue a large surfaces easily.
But it can't glue a small surface such as this photo well


Then you should use a following spray.
I always use this.
Watch video.


Super glue accelerator
This can glue surfaces in several seconds.
When you use 100ml, you can make a armorset or about three weapons.
←100ml ←180ml ←420ml

About super glue
I use general liquid super glue.

**********************************************************************

I finished glueing.


Round off the corners with a Box cutter etc.


Glue with a Liquid super glue.


I finished glueing.


Cut material into the Templates form.
Cut out "Kousakuyousi"(one of hard paper in Japan).
Glue with a Liquid super glue.


I finished glueing.


Use a Iron gardening stick(diameter 0.6 or 0.8cm).
Use it as a core.
Cut it wit Freeway coping saw, pliers, nippers, diamond files, etc.
This stick is just a iron stick.
You can substitute various metalic sticks.



I finished cutting.


I used this.
The diameter is about 0.6cm.


Peel with a Box cutter etc to easily bend.


Bend Iron gardening stick by hand.


Glue with a Hot melt(glue gun).


↑ギャクヨガが愛用しているグルーガンです、口が広くてとても使いやすい！

Glue with a Hot melt(glue gun).


I finished glueing.


Glue edges of the blade.
Glue with "Bond G17"(one of sticky glue in Japan). Detailed process is here.
Paint it with a broken piece of "Kousakuyousi"(one of hard paper in Japan) as a brush.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.



Reinforce the blade by painting Liquid super glue on the edge.


Fill the back of blade with a Hot melt(glue gun).


Stroke the back of blade with a tip of Hot melt(glue gun), then the surface becomes flat.

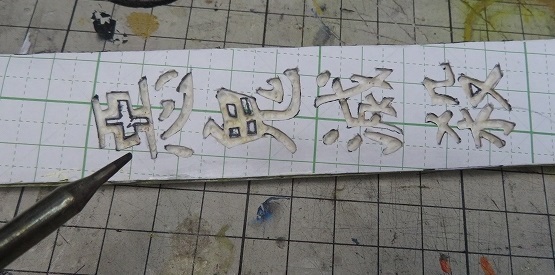

Carve the pattern with a Soldering iron.(Don't breathe in the smoke and don't put in eyes)



Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.
Glue with a Liquid super glue.


Carve the pattern with a Soldering iron.(Don't breathe in the smoke and don't put in eyes)


Present state.


Please support me by donating
If my tutorials supports you, please support me.
You can donate to me from 1$ with PayPal.
I'm gonna use donation to make new props, thanks.
Click this ↓.


History.
Lintylyn san, thanks!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.


EmDash san, thanks!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.


Building the guard
Cut material into the Templates form.
Cut out 5mm thick EVA foam.
Cut out 1.5mm or 2mm thick EVA foam.

【5mm厚COSボードの通販】
●Amazon


●楽天

COSボード Sサイズ(450mm×600mm) 5mm厚 白 価格：583円（税込、送料別) (2019/10/23時点)

COSボード Mサイズ(600mm×900mm) 5mm厚 白 価格：1120円（税込、送料別) (2019/10/23時点)

COSボード Lサイズ(900mm×1800mm) 5mm厚 白 価格：3249円（税込、送料別) (2019/10/23時点)

COSボード Sサイズ(450mm×600mm) 5mm厚 黒 価格：650円（税込、送料別) (2019/10/23時点)

COSボード Mサイズ(600mm×900mm) 5mm厚 黒 価格：1344円（税込、送料別) (2019/10/23時点)

●キャラヌノ


【5mm厚コスプレボードの通販】
●Amazon


●楽天

コスプレボード 白5mm×660mm×500mm 価格：517円（税込、送料別) (2019/10/23時点)

コスプレボード 白5mm×660mm×1000mm 価格：990円（税込、送料別) (2019/10/23時点)

コスプレボード　白5mm×1000mm×2000mm 価格：3564円（税込、送料別) (2019/10/23時点)

コスプレボード　黒5mm×660mm×1000mm 黒だから裏塗り処理を省略出来る 価格：1320円（税込、送料別) (2019/10/23時点)

コスプレボード　黒5mm×1000mm×2000mm 黒だから裏塗り処理を省略出来る 価格：4180円（税込、送料別) (2019/10/23時点)

Mark pattern with a pen.


Glue with a Liquid super glue.


Carve the pattern with a Soldering iron.(Don't breathe in the smoke and don't put in eyes)


Glue with a Liquid super glue.


I finished glueing.


Please support me by donating
If my tutorials supports you, please support me.
You can donate to me from 1$ with PayPal.
I'm gonna use donation to make new props, thanks.
Click this ↓.


History.
Lintylyn san, thanks!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.


EmDash san, thanks!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.


Building the hilt
Cut material into the Templates form.
Cut out 5mm thick EVA foam.
Cut out 10mm thick EVA foam.

【10mm厚COSボードの通販】
●Amazon


●楽天

COSボード Sサイズ(450mm×600mm) 10mm厚 白 価格：986円（税込、送料別) (2019/10/23時点)

COSボード Mサイズ(600mm×900mm) 10mm厚 白 価格：1849円（税込、送料別) (2019/10/23時点)

COSボード Lサイズ(900mm×1800mm) 10mm厚 白 価格：6274円（税込、送料別) (2019/10/23時点)

COSボード Sサイズ(450mm×600mm) 10mm厚 黒 価格：1232円（税込、送料別) (2019/10/23時点)

COSボード Mサイズ(600mm×900mm) 10mm厚 黒 価格：2353円（税込、送料別) (2019/10/23時点)

●キャラヌノ


【10mm厚コスプレボードの通販】


●楽天

コスプレボード 白10mm×660mm×500mm 価格：880円（税込、送料別) (2019/10/23時点)

コスプレボード　白10mm×660mm×1000mm 価格：1540円（税込、送料別) (2019/10/23時点)

コスプレボード　黒10mm×660mm×1000mm 黒だから裏塗り処理を省略出来る 価格：2486円（税込、送料別) (2019/10/23時点)

Glue with a Liquid super glue.


I finished glueing.


Round off the corners with a Box cutter etc.

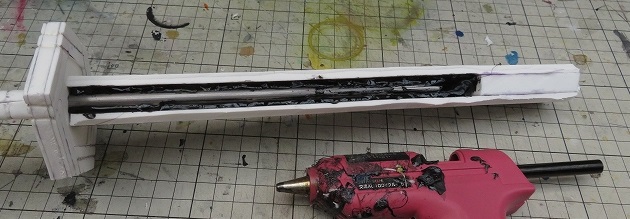

Glue with a Hot melt(glue gun).


I finished glueing.


Cut material into the Templates form.
Cut out 5mm thick EVA foam.
Glue with a Liquid super glue.


I finished glueing.


Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.
Glue with a Liquid super glue.


I finished glueing.


Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.
Glue with a Liquid super glue.


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)

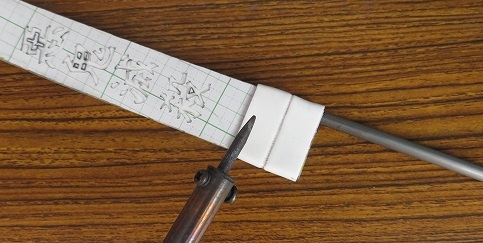

Carve the pattern with a Soldering iron.(Don't breathe in the smoke and don't put in eyes)


Present state.


Please subscribe and follow
Please subscribe my channel!


Please follow my twitter!


Painting
Begin painting.
At first, paint a undercoat on EVA foam.
The effects are as follows.

-Color becomes well.
-It becomes hard to come off.
-Gloss comes out well.
-You can save quantity of the paint.

There are two methods.
-------------------------------------------------------------------------------------------
1.Gesso
This is easy.

【Merit】
-It's usable just to paint with a paint brush.
-Gesso don't contain thinner, then you can use it in the room.
-You can use also Acrylic paint.
-There are several colors one, white black etc.

【Demerit】
-It's easy to come off than Thinned "Bond G17"(one of liqud glue in Japan).
 Then, use this for weapons and armors without moving parts.
-The gross is smaller than Thinned "Bond G17"(one of liqud glue in Japan).

【Commodities　page】
Gesso or Black Gesso
or

【Paint】
Lacquer Spray or Bottle lacquer paint or acrylic paint
or
-------------------------------------------------------------------------------------------
2."Bond G17"(one of liqud glue in Japan)
This is difficult, however it's almighty.

【Merit】
-It'st hard to peel off.
-It can use for PVC pipe or plastic sheets.

【Demerit】
-"Bond G17" is japanese commodity.
 Then you can't get it easily.
 Please use others. For example, you can substitute wood glue for it.
-You must thin it with lacquer thinner.
-It needs thinner, then you must work outdoors.
-It burns easily.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
The parts will be charred in seconds.

【Tutorial video】


【Commodities　page】
"Bond G17"(one of sticky glue in Japan) thined with lacquer thinner
-for big things -for small things
-------------------------------------------------------------------------------------------
-About paint
I use following paint.


You can use acrylic paint, when you use Gesso.

-------------------------------------------------------------------------------------------

I use "Zoukei be-su" as undercoat this time.
However it's sold only in Japan.
Use Gesso or Thinned "Bond G17"(one of liqud glue in Japan) in substitution for "Zoukei be-su".


Paint "Zoukei be-su" twice with a brush.
Dry it about 2 ~ 6 hours.


Paint black as undercoat color with Lacquer Spray.


Paint gray as undercoat color with Lacquer Spray.


Paint dark silver with Lacquer Spray.


Paint purple with Lacquer Spray.


Stick Masking tape on the point you don't want to paint.
Paint blue with Lacquer Spray.



Process Masking tape.
Stick Masking tape on a Cutting mat.


Cut out with a Box cutter etc.


Stick Masking tape on the point you don't want to paint.


Paint silver with Lacquer Spray.


Paint clear blue with Lacquer Spray.


Draw The design of the edge.
Paint Bottle lacquer paint with a Airbrush.

【オススメエアブラシ紹介】
●初心者にオススメ
安価なUSB充電式エアブラシ。
これ一つでエアブラシ塗装が手軽に行えます、60分充電すれば45分稼働できます。
エアブラシ塗装を手軽に始めるならまずはこれ。


●本格的に始めるなら
模型メーカー最大手のタミヤのエアブラシセットです。
エアブラシ塗装に必要なものが一式セットになった定番商品です。
電源はコンセント接続です。



●ギャクヨガが使っている物を使いたいなら
性能は高いですが高価です。



Stick Masking tape on the point you don't want to paint.


Paint brown with Lacquer Spray.


Draw lines with a Magic Marker.


Paint silver Bottle lacquer paint with a paint brush.


When you paint Bottle lacquer paint, use a paintbrush,silicon cup(Use as a paint plate. It can easy to peel paints after dry.),
panint stick, thinner.



Paint gray Bottle lacquer paint with a paint brush.


Paint gloss spray to make a gloss.



After painting
Wrap cord.
Glue with a Hot melt(glue gun) here and there.
Wraping tutorial is here.


Watch a video tutorial too.


Tie the edge.
I refer to this site about tieing the edge.


I used 4meter of this 8mm width cord.

コットン フリーコード いろいろ使えるコットンの平紐です。 3サイズ共通カラー　40色展開です。※商品の特性上、表記サイズより多少前後する場合がございます。ご了承願います。 価格：129円（税込、送料別) (2019/7/10時点) 楽天で購入

I finished wraping.


Complete phots
Thanks for browsing!











Visitor's works
景一さん
【注コスプレ】
鬼滅の刃/冨岡義勇
photo→ひがさん（@higa_sadalsuud)
刀制作参考→ギャクヨガさん
ロケ地許可有り
刀作るの頑張った。偉い。そしてやっぱりコスプレ楽しかったのでまたやりたい


Ann Marieさん
Water Hashira of the Demon Slayer corps, Tomioka Giyu
I love cosplaying this boy,
the costume is super comfortable and it’s a fun make up look to play with.


景一さん
ギャクヨガさんのサイトを参考に冨岡義勇の刀作れました！ありがとうございましたー！
何気に刀キャラ初めてで、刀作るのも初めてだったから…柄糸の留め方がすぐ理解できなくて瞬着力業(脳筋)


冨岡義勇に恋をした男さん
冨岡義勇の日輪刀完成しました！
柄糸巻くのがめちゃくちゃ難しかったです( - )ギャクヨガさんのサイトホントに説明とか細かくてとても助かりました。
鞘は気が向いたら作る予定です！




SO(ソー)さん
鬼滅の刃より
水柱 冨岡義勇の日輪刀 完成しました
刃先はシアンカラーに
波紋は丸字のペイントマーカー
悪鬼滅殺 彫るの大変でした




Return to Top page
