Black rock shooter - dead master
How to make Big scythe (with templates)



Materials
[Materials for making templates]
-Drawing paper 10piece
-"Kousakuyousi"(one of hard paper in Japan) 5piece
-Scotch tape(Sellotape) 3piece
-Packaging tape(parcel tape) 1piece

[Main materials]
-EVA foam
→10mm thick 100cm X 100cm
-"Kousakuyousi"(one of hard paper in Japan)10piece
-Liquid super glue 10piece
-Hot melt(glue gun) 30piece
-"Jiyujizai"(one of wire in Japan)
→10mm 100cm
-PVC pipe(diameter 2.6cm) 1piece
-Materials to make PVC pipe jointing stick 25cm
-Velcro 40cm
-Code3m

[Painting materials]
1.When undercoat is Gesso
-Gesso 100ml
-Paintbrush 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) or acrylic paint proper quantity*

2.When undercoat is Wood glue thinned with water
-Wood glue 100ml
-Water a little
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*

3.When undercoat is Thinned "Bond G17"(one of liqud glue in Japan)
-"Bond G17"(one of sticky glue in Japan) 100ml
-lacquer thinner 100ml
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*

*The paiting area is written in the package, refer it. Details are here.

Materials cost
5000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter etc(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Lighter
-Pipe cutter or Saw
-Tools to make PVC pipe jointing stick
-Paint tools (brush etc)
-Pliers

Convenient tools when you have
-Standard art knife,Cushion grip art knife
-Gas toach
-Super glue Accelerator

Work time
30Hours

Spec
Length 200cm

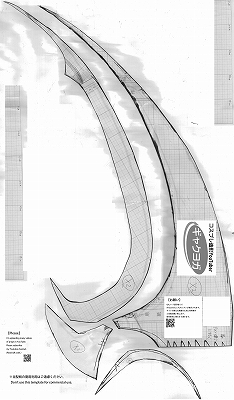

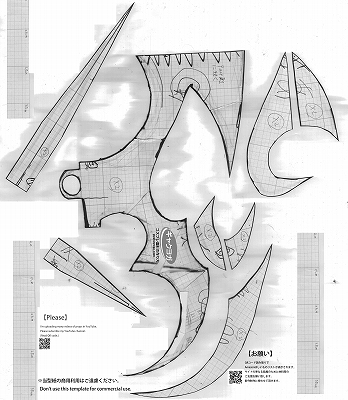

Template data
PDF format(A4 size)1/2 PDF format(A4 size)2/2

-How to print is here.
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

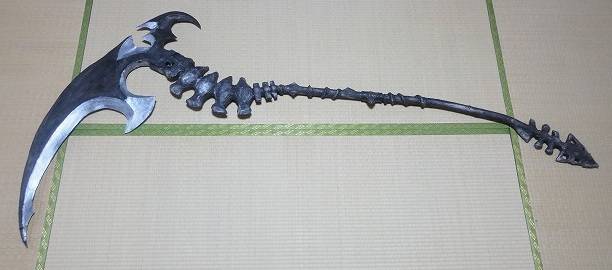

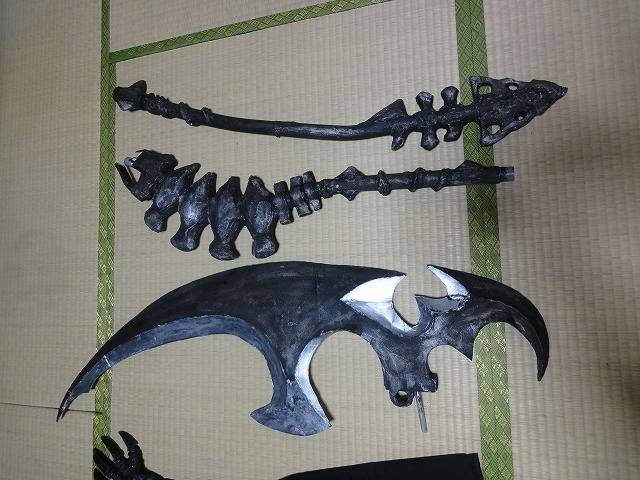

1/2 Completion drawing


2/2 Completion drawing


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.

-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

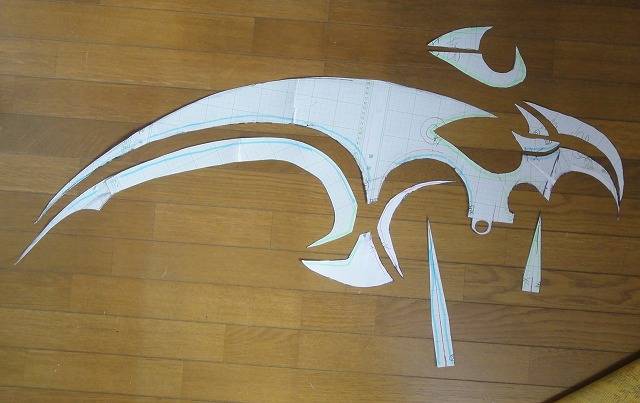

Make the template
Make Templates from "Kousakuyousi"(one of hard paper in Japan).
When you want to know how to make Templates of weapons, browse this page.



Please support me by donating
If my tutorials supports you, please support me.
You can donate to me from 1$ with PayPal.
I'm gonna use donation to make new props, thanks.
Click this ↓.


Thanks for donating! Vanoinkie-san!
I'm so happy my tutorials helps you!
I'll do my best in the future(*^^*)


Thanks for donating! Leacochran93-san!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.



Thanks for donating! strawbunideco-san!
I'll do my best in the future!
And thank you for request!


More history

Building the blade
Make blade.
Reinforce 1.5mm or 2mm thick EVA foam.
Glue "Kousakuyousi"(one of hard paper in Japan) and EVA foam with "Bond G17"(one of sticky glue in Japan).
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
(If you want more strength, use plastic sheets instead of "Kousakuyousi"(one of hard paper in Japan). Details are here.)



**********************************************************************

EVA foam is a soft material.
You can process it easily.
Another name is EVA board, EVA zote, Craft foam etc.
I usually use one called "Lion board".
"Lion board" is sold only in Japan.

Watch video.

**********************************************************************


【1.5mm厚COSボードの通販】
●Amazon


●楽天

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 1.5mm厚 白
価格:359円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 1.5mm厚 白
価格:672円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Lサイズ(900mm×1800mm) 1.5mm厚 白
価格:1681円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 1.5mm厚 黒
価格:672円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード(シールタイプ)Mサイズ(600mm×900mm) 1.5mm厚 白
価格:1120円(税込、送料別) (2019/10/23時点)

●キャラヌノ


【1.5mm厚コスプレボードの通販】
●Amazon


●楽天

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白1.5mm×660mm×1000mm
価格:605円(税込、送料別) (2019/10/23時点)


**********************************************************************

Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

When you cut, put EVA foam on Cutting mat.
Break the blade frequentry, if you feel sharpness of the blade became bad.
I use "Running fire box cutter","Blade breaker" too.
"Running fire box cutter" can have 6 pieces blade inside.
"Blade breaker" can break easy and speedy.


Use Standard art knife or Cushion grip art knife for small ornaments etc.

**********************************************************************

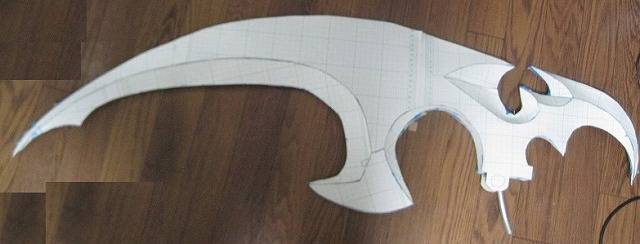

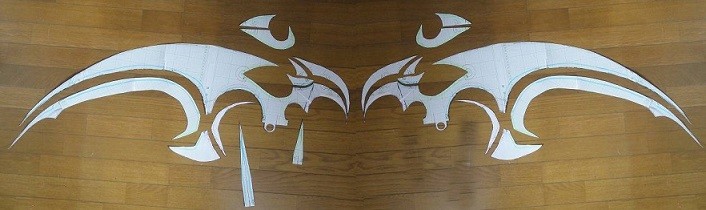

Cut material into the Templates form.
Cut out "Kousakuyousi"(one of hard paper in Japan).


Glue with a Hot melt(glue gun).
Cut out 10mm thick EVA foam.
Glue with a Hot melt(glue gun).

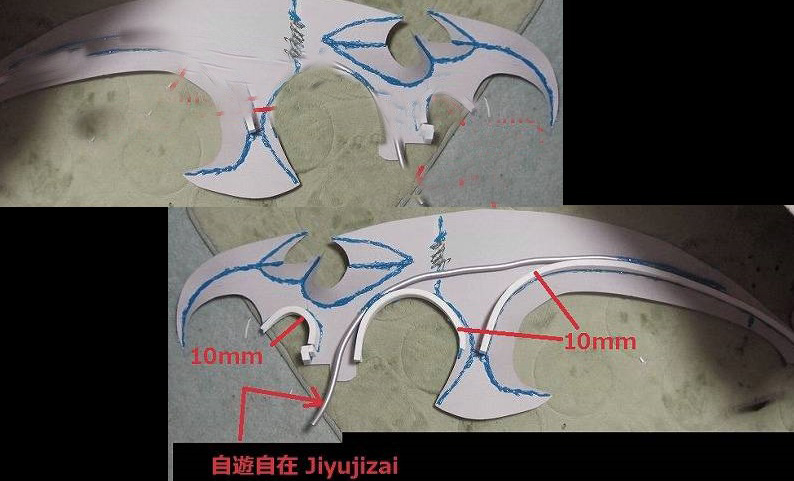

Make a core.
Use a "Jiyujizai"(one of wire in Japan) of diameter 10mm.
Cut it with Pliers or Nippers.
Glue with a Hot melt(glue gun).


【10mm厚COSボードの通販】
●Amazon


●楽天

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 10mm厚 白
価格:986円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 10mm厚 白
価格:1849円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Lサイズ(900mm×1800mm) 10mm厚 白
価格:6274円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 10mm厚 黒
価格:1232円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 10mm厚 黒
価格:2353円(税込、送料別) (2019/10/23時点)

●キャラヌノ


【10mm厚コスプレボードの通販】


●楽天

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白10mm×660mm×500mm
価格:880円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白10mm×660mm×1000mm
価格:1540円(税込、送料別) (2019/10/23時点)



ギャクヨガが愛用しているグルーガンです、口が広くてとても使いやすい!

←様々な太さ有り

Glue the edge of blade.
Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)


**********************************************************************


Super glue can glue a large surfaces easily.
But it can't glue a small surface such as this photo well


Then you should use a following spray.
I always use this.
Watch video.


Super glue accelerator
This can glue surfaces in several seconds.
When you use 100ml, you can make a armorset or about three weapons.
←100ml ←420ml

About super glue
I use general liquid super glue.

**********************************************************************


I finished glueing.


Please support me by donating
If my tutorials supports you, please support me.
You can donate to me from 1$ with PayPal.
I'm gonna use donation to make new props, thanks.
Click this ↓.


Thanks for donating! Vanoinkie-san!
I'm so happy my tutorials helps you!
I'll do my best in the future(*^^*)


Thanks for donating! Leacochran93-san!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.



Thanks for donating! strawbunideco-san!
I'll do my best in the future!
And thank you for request!


More history

Building the shaft
Use a PVC pipe(diameter 2.6cm).
Cut a PVC pipe.
PVC pipe can be cut with a saw.
But a Pipe cutter is more better.
It can cut quickly and neatly.



This is a video of cutting method of PVC pipe, bending method, jointing method.


I finished cutting.


Make a joint stick.
The best length is 25cm.
There are two methods.
-------------------------------------------------------------------------------------------
1.Iron gardening stick and EVA foam
It's take time, however jointing power is strong.

Cut Iron gardening stick. How to cut is here.
Cut out 1.5mm or 2mm thick EVA foam.
Glue with a Liquid super glue.

-------------------------------------------------------------------------------------------
2.Wood stick
It's a easy method, but jointing power is weak than above method.

Cut a wood stick with a saw.
Shave it with Box cutter etc as necessary.

-------------------------------------------------------------------------------------------

Bend a PVC pipe by heat.
If you don't want to use fire, use a Heat gun.
Use a Gas toach or a Lighter.(Be careful about fire)
Hair dryers can't bend.
When you heat, equip globes.



↑ギャクヨガ愛用ライター、使いやすい! ガスがなくなったらボンベで充填しましょう


I finished bending.


Cut out 1.5mm or 2mm thick EVA foam.
Paste with "Bond G17"(one of sticky glue in Japan).
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
(You may glue with a Liquid super glue. However "Bond G17"(one of sticky glue in Japan) is useful for the large area.)


I finished glueing.

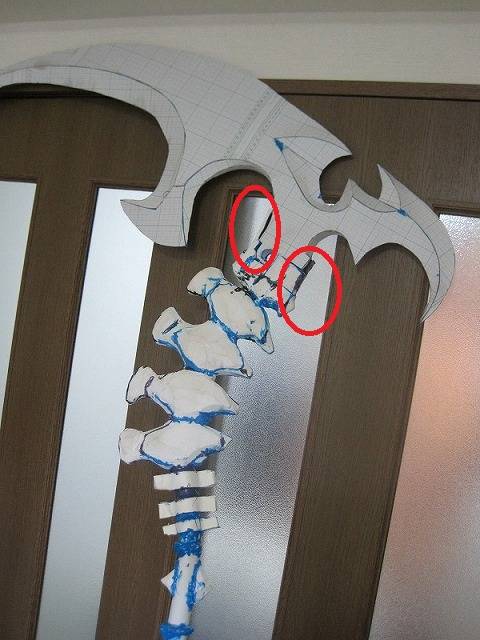

Make upper half of stick.
Cut out 10mm thick EVA foam.
Glue with a Hot melt(glue gun).


【10mm厚COSボードの通販】
●Amazon


●楽天

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 10mm厚 白
価格:986円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 10mm厚 白
価格:1849円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Lサイズ(900mm×1800mm) 10mm厚 白
価格:6274円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 10mm厚 黒
価格:1232円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 10mm厚 黒
価格:2353円(税込、送料別) (2019/10/23時点)

●キャラヌノ


【10mm厚コスプレボードの通販】


●楽天

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白10mm×660mm×500mm
価格:880円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白10mm×660mm×1000mm
価格:1540円(税込、送料別) (2019/10/23時点)

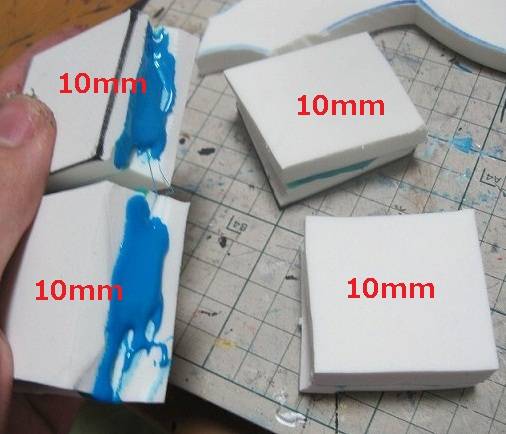

Cut out 10mm thick EVA foam.
Glue with a Hot melt(glue gun).


Cut out 10mm thick EVA foam.
Glue with a Hot melt(glue gun).


Cut out 10mm thick EVA foam.
Glue with a Hot melt(glue gun).

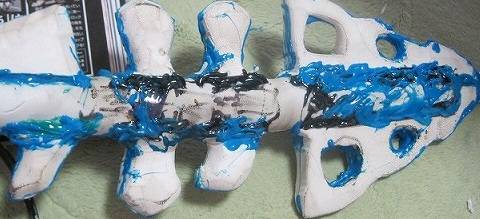

Shave with a Box cutter etc.


Heap with a Hot melt(glue gun).
Remove the corner by toasting with a Gas toach or a Lighter.(Don't breathe in the smoke, be careful about fire)
(A Lighter is usable, too But take time.)



↑ギャクヨガ愛用ライター、使いやすい! ガスがなくなったらボンベで充填しましょう

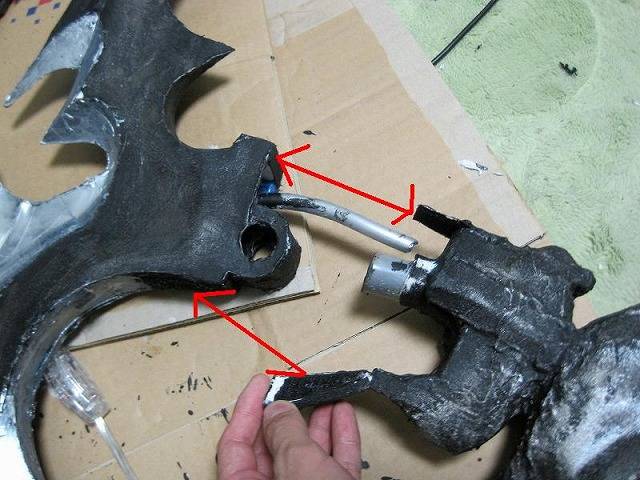

Glue Velcro with "Bond G17"(one of sticky glue in Japan) or a Hot melt(glue gun). Detailes are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.

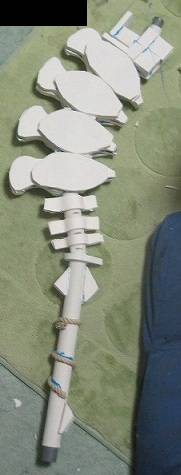

Make lower half of stick.

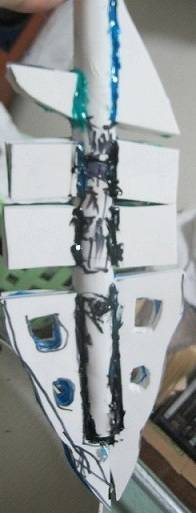

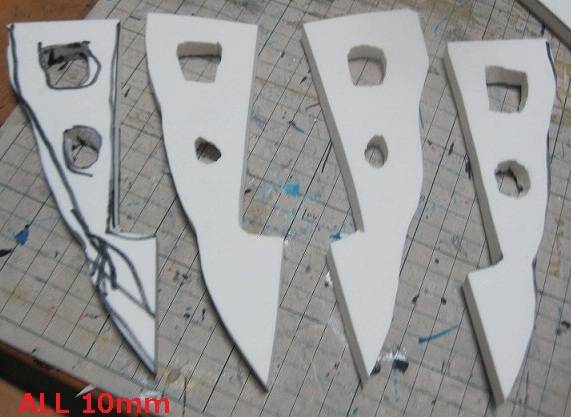

Cut out 10mm thick EVA foam.
Glue with a Hot melt(glue gun).


Cut out 10mm thick EVA foam.
Glue with a Hot melt(glue gun).


Cut out 10mm thick EVA foam.
Glue with a Hot melt(glue gun).


Cut out 10mm thick EVA foam.
Glue with a Hot melt(glue gun).


Cut out 10mm thick EVA foam.
Glue with a Hot melt(glue gun).

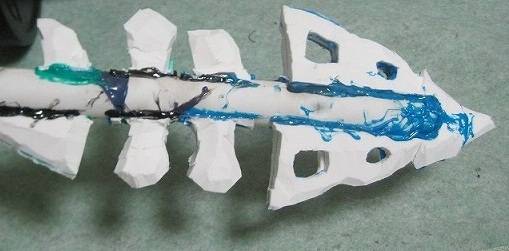

Remove the corner by toasting with a Gas toach or a Lighter.(Don't breathe in the smoke, be careful about fire)
(A Lighter is usable, too But take time.)

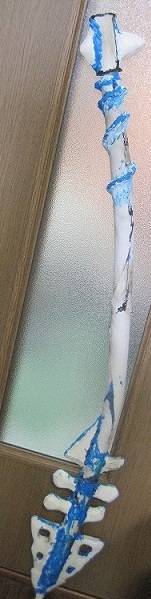

Pate cord. Glue with a Hot melt(glue gun).


Heap with a Hot melt(glue gun).


Please subscribe and follow
Please subscribe my channel!


Please follow my twitter!

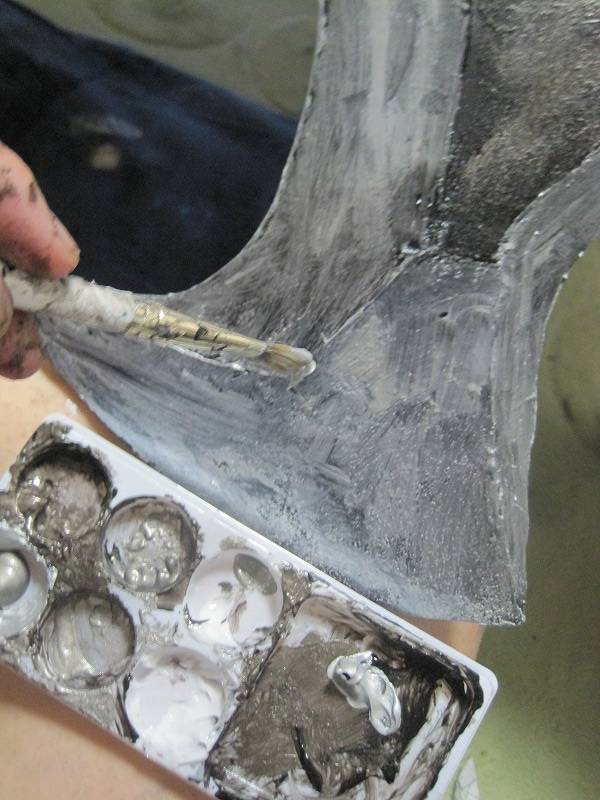

Painting
Begin painting.

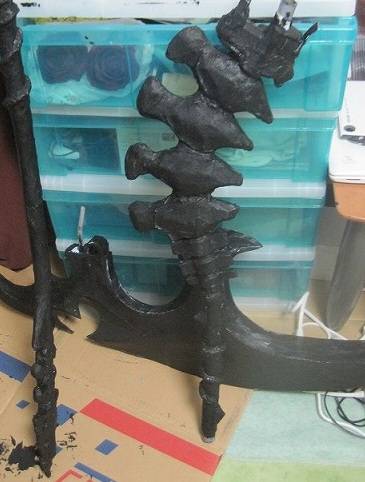

At first, paint a undercoat on EVA foam.
The effects are as follows.

-Color becomes well.
-It becomes hard to come off.
-Gloss comes out well.
-You can save quantity of the paint.

There are two methods.
-------------------------------------------------------------------------------------------
1.Gesso
This is easy.

【Merit】
-It's usable just to paint with a paint brush.
-Gesso don't contain thinner, then you can use it in the room.
-You can use also Acrylic paint.
-There are several colors one, white black etc.

【Demerit】
-It's easy to come off than Thinned "Bond G17"(one of liqud glue in Japan).
 Then, use this for weapons and armors without moving parts.
-The gross is smaller than Thinned "Bond G17"(one of liqud glue in Japan).

【Commodities page】
Gesso or Black Gesso
or

【Paint】
Lacquer Spray or Bottle lacquer paint or acrylic paint
or
-------------------------------------------------------------------------------------------
2.Wood glue thinned with water
This is so easy.

【Merit】
-Someone can get
-Someone can use easy

【Demerit】
-Drying time is a little long.

【Commodities page】

-------------------------------------------------------------------------------------------
3."Bond G17"(one of liqud glue in Japan)
This is difficult, however it's almighty.

【Merit】
-It'st hard to peel off.
-It can use for PVC pipe or plastic sheets.

【Demerit】
-"Bond G17" is japanese commodity.
 Then you can't get it easily.
 Please use others. For example, you can substitute wood glue for it.
-You must thin it with lacquer thinner.
-It needs thinner, then you must work outdoors.
-It burns easily.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
The parts will be charred in seconds.

【Tutorial video】


【Commodities page】
"Bond G17"(one of sticky glue in Japan) thined with lacquer thinner
-for big things -for small things
-------------------------------------------------------------------------------------------
-About paint
I use following paint.


You can use acrylic paint, when you use Gesso.

-------------------------------------------------------------------------------------------

I use Gesso in this tutorial.


Paint Gesso twice or three times with a brush.
Dry it about 2 ~ 6 hours.


Paint acrylic paint with a paint brush.


Complete phots
If you have any questions, please comment on my YouTube channel.
And please subscribe!





Dismantle state.


Attach Velcro in place showed by lines.






Visitor's works

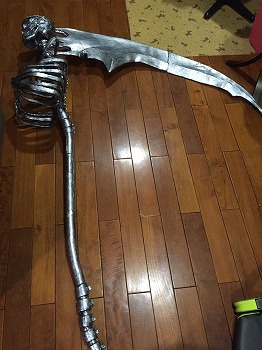

餅月さん
ギャクヨガさんの型紙を参考に、
黒執事 葬儀屋の死神の鎌を作りました!
ライオンボードの名前すら知らない初心者でしたが、
道具や材料を丁寧に説明してくれていてとても参考になりました!ありがとうございます!


Return to Top page
