The Last Of Us
How to make flamethrower



Materials
[Materials for making templates]
-

[Main materials]
-EVA foam
→1.5mm or 2mm thick 100cm X 10cm
→5mm thick 100cm X 20cm
-Synthetic leather 100cm X 20cm
-Liquid super glue 4pieces
-Hot melt(glue gun) 10pieces
-PVC pipe(diameter 2.2cm) 1piece
-Joint parts of PVC pipe plural peaces
-Iron gardening stick 1piece
-Code 1piece
-Empty can 1piece
-Empty gas can 1piece
-Empty spray can 1piece
-Plastic tape
-bandage 1piece

[Painting materials]
-"Bond G17"(one of sticky glue in Japan) 50ml
-lacquer thinner 50ml
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*
-Masking tape 1piece

*The paiting area is written in the package, refer it. Details are here.

Materials cost
3000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter etc(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Lighter
-Saw
-Pipe cutter or Saw
-Paint tools (brush etc)
-Drill or Pinvice
-Pliers
-Tools to cut Iron gardening stick(Freeway coping saw, Nippers, etc)

Convenient tools when you have
-Standard art knife,Cushion grip art knife
-Circle cutter
-Gas toach
-Sand paper(240grit)
-Super glue Accelerator
This spary can harden Super glue instantly. Details are here.
←100ml ←420ml

Work time
16hours

Spec
Weight 850g
Length 108cm

Template data
I threw away the Templates, so I can't upload.

Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.

-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

Please support me by donating
If my tutorials supports you, please support me.
You can donate to me from 1$ with PayPal.
I'm gonna use donation to make new props, thanks.
Click this ↓.


Thanks for donating! Vanoinkie-san!
I'm so happy my tutorials helps you!
I'll do my best in the future(*^^*)


Thanks for donating! Leacochran93-san!
I'm so happy my tutorials helps you!
I'll use the donation for material and tools.



Thanks for donating! strawbunideco-san!
I'll do my best in the future!
And thank you for request!


More history

Building
Make the first half part.

Use a PVC pipe(diameter 2.2cm).
Cut a PVC pipe.
PVC pipe can be cut with a saw.
But a Pipe cutter is more better.
It can cut quickly and neatly.



This is a video of cutting method of PVC pipe, bending method, jointing method.

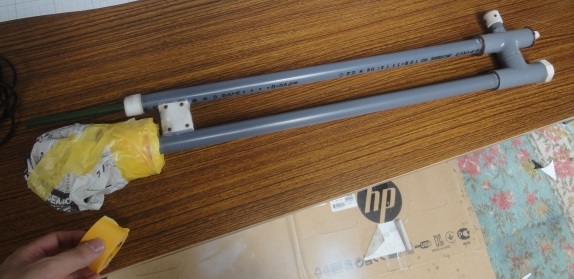

Finished cutting it to moderate size.


Combine Joint parts of PVC pipe.


Cut Joint parts of PVC pipe to moderate size.


Cut PVC pipe short for connection.


Insert.


Insert.
Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)





Super glue can glue a large surfaces easily.
But it can't glue a small surface such as this photo well


Then you should use a following spray.
I always use this.
Watch video.


Super glue accelerator
This can glue surfaces in several seconds.
When you use 100ml, you can make a armorset or about three weapons.
←100ml ←420ml

About super glue
I use general liquid super glue.



Make hole with a Drill or a Pinvice.



Use Gardening stick made by glass fiber as core.
Cut it with a saw.
You can cut also Pliers, Nippers, but i recommend saws.
If you can't get this stick, substitute various metalic sticks.


I finished cutting.


Inset holes.


Insert Joint parts of PVC pipe.


Make hole with a Drill or a Pinvice.


Use it as a core.
Cut it wit Freeway coping saw, pliers, nippers, diamond files, etc.
This stick is just a iron stick.
You can substitute various metalic sticks.


園芸用の棒は一応Amazonでも売ってるが異常に高い、ホームセンターや100均で買った方が良い。


Insert the hole.
Glue with a Hot melt(glue gun).


ギャクヨガが愛用しているグルーガンです、口が広くてとても使いやすい!

Cut PVC pipe short.


Cut out 5mm thick EVA foam.




EVA foam is soft material.
You can process it easily.
Other names are EVA board, EVA zote, Craft foam etc.
Cosplayers all over the world use this.

Introduction video





コスプレ造形向けボードはネット通販で手軽に買えます。
ちなみに、COSボードとコスプレボードの違いは特にないと感じます、お好みでどうぞ。
ギャクヨガはCOSボードをいつも利用しています。

●5mm厚COSボードをAmazonで買う


●5mm厚COSボードを楽天で買う

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 5mm厚 白
価格:583円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 5mm厚 白
価格:1120円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Lサイズ(900mm×1800mm) 5mm厚 白
価格:3249円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 5mm厚 黒
価格:650円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 5mm厚 黒
価格:1344円(税込、送料別) (2019/10/23時点)

●5mm厚COSボードをキャラヌノで買う


●5mm厚コスプレボードをAmazonで買う


●5mm厚コスプレボードを楽天で買う

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白5mm×660mm×500mm
価格:517円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白5mm×660mm×1000mm
価格:990円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白5mm×1000mm×2000mm
価格:3564円(税込、送料別) (2019/10/23時点)





Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

I always use "Running fire box cutter","Blade breaker",Cutting mat.
"Blade breaker" can break the blade easily.


Use Standard art knife or Cushion grip art knife to cut small ornaments etc, too.



Insert to PVC pipe.
Glue with a Liquid super glue.


Insert a nut to opposite side.
Glue with a Liquid super glue.

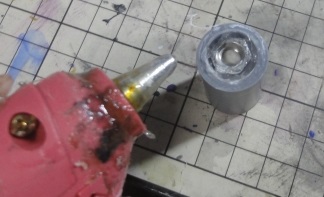

Heap with a Hot melt(glue gun).


Make hole with a Drill or a Pinvice.


Insert in the hole.
Glue with a Liquid super glue.


Cut out 1.5mm or 2mm thick EVA foam.




コスプレ造形向けボードはネット通販で手軽に買えます。
ちなみに、COSボードとコスプレボードの違いは特にないと感じます、好みでどうぞ。
ギャクヨガはCOSボードをいつも利用しています。

●1.5mm厚COSボードをAmazonで買う


●1.5mm厚COSボードを楽天で買う

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 1.5mm厚 白
価格:359円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 1.5mm厚 白
価格:672円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Lサイズ(900mm×1800mm) 1.5mm厚 白
価格:1681円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 1.5mm厚 黒
価格:672円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード(シールタイプ)Mサイズ(600mm×900mm) 1.5mm厚 白
価格:1120円(税込、送料別) (2019/10/23時点)

●1.5mm厚COSボードをAmazonで買う


●1.5mm厚コスプレボードをAmazonで買う


●1.5mm厚コスプレボードを楽天で買う

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白1.5mm×660mm×1000mm
価格:605円(税込、送料別) (2019/10/23時点)



Glue with a Liquid super glue.


Cut out 5mm thick EVA foam.


Glue with a Liquid super glue.


Use a Empty can.
Cut rid.


Make a hole with Pliers.


Insert in the tip.
Glue with a Hot melt(glue gun).


Use it as a core.
Cut it wit Freeway coping saw, pliers, nippers, diamond files, etc.
This stick is just a iron stick.
You can substitute various metalic sticks.


園芸用の棒は一応Amazonでも売ってるが異常に高い、ホームセンターや100均で買った方が良い。


Insert in the tip.
Glue with a Hot melt(glue gun).


Make rivets with a Hot melt(glue gun).


Make rivets with a Hot melt(glue gun).


Make a tank.
Use a Empty gas can.


Make a hole with Pliers.


Glue a bolt.
Glue with a Liquid super glue.


Cut out 5mm thick EVA foam.


Glue with a Liquid super glue.


Cut out 5mm thick EVA foam.

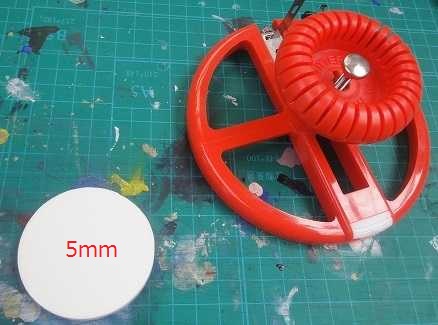

You must use a tool for cutting out a fair circle. Details are here.



Round off the corners with a Box cutter etc.


Glue with a Liquid super glue.


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)


↑ギャクヨガ愛用ライター、使いやすい! ガスがなくなったらボンベで充填しましょう

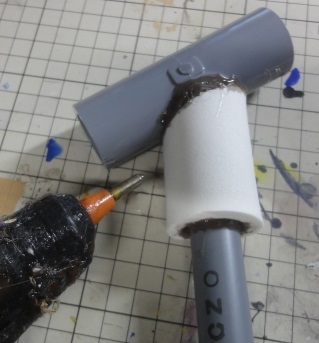

Heap a Hot melt(glue gun) for reinforcement.


Draw patterns with a Hot melt(glue gun).


Glue with a Liquid super glue.


Make the latter half part.
Use a PVC pipe(diameter 2.2cm).
Combine Joint parts of PVC pipe.


Cut Joint parts of PVC pipe to moderate size.


Bend PVC pipe.

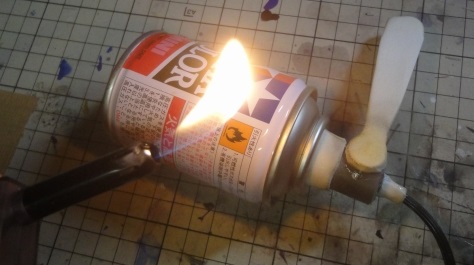

Bend a PVC pipe by heat.
If you don't want to use fire, use a Heat gun.
Use a Gas toach or a Lighter.(Be careful about fire)
Hair dryers can't bend.
When you heat, equip globes.



↑ギャクヨガ愛用ライター、使いやすい! ガスがなくなったらボンベで充填しましょう


I finished bending.


Insert in the tip.
Glue with a Liquid super glue.
Heap a Hot melt(glue gun) for reinforcement.


Cut out 5mm thick EVA foam.


Slant the edge.
Cut with a Box cutter etc.


Cut out 5mm thick EVA foam.
You must use a tool for cutting out a fair circle. Details are here.


Round off the corners with a Box cutter etc.


Make a hole with a Box cutter etc.


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)


Pass through the hole.


Heap with a Hot melt(glue gun).


Glue with a Liquid super glue.


Cut out 1.5mm or 2mm thick EVA foam.


Glue with a Liquid super glue.


Cut out 5mm thick EVA foam.
Cut out 1.5mm or 2mm thick EVA foam.


Glue with a Liquid super glue.


Use a wire.
Cut it with Pliers or Nippers.


Make the wire a core.
Glue with a Liquid super glue.


Heap with a Hot melt(glue gun).


Make a gap with a Box cutter etc.


Glue with a Liquid super glue.


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)


Make rivets with a Hot melt(glue gun).


Insert Joint parts of PVC pipe.
Glue with a Liquid super glue.


Cut out 5mm thick EVA foam.


Glue with a Liquid super glue.


Form by shaving with a Box cutter etc.


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)


Use a Empty spray can.


Cut PVC pipe short.


Glue with a Hot melt(glue gun).


Attach a cord.
Glue with a Hot melt(glue gun).


Cut out 5mm thick EVA foam.


Glue with a Liquid super glue.


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)


Draw patterns with a Hot melt(glue gun).


Attach a Code.
Glue with a Hot melt(glue gun).


Present state.


Stick Masking tape on the point you don't want to paint.


ギャクヨガは細かいところは10mm幅(左の商品)、広い所は30mm幅(右の商品)を使ってます

Stick Masking tape on the point you don't want to paint.


Stick Masking tape on the point you don't want to paint.


Please subscribe and follow
Please subscribe my channel!


Please follow my twitter!


Painting
Paint.
When paint direct Lacquer Spray and acrylic paint to EVA foam and PVC pipe,
paint don't fix well.
So you should paint undercoat.

Paint "Bond G17"(one of sticky glue in Japan) thined with lacquer thinner three or four times.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
(It will char in seconds.)


Dry it about 2 ~ 6 hours.


Dry it about 2 ~ 6 hours.

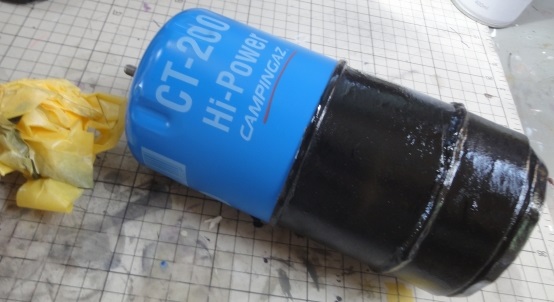

Paint black color as undercoat color with Lacquer Spray.


Paint black color as undercoat color with Lacquer Spray.


Paint black color as undercoat color with Lacquer Spray.


Paint silver Bottle lacquer paint by Drybrush painting.


Drybrush painting is easy, you can do it with a paint brush.
Read here or watch this video.


When you paint Bottle lacquer paint, use a paintbrush,silicon cup(Use as a paint plate. It can easy to peel paints after dry.),
panint stick, thinner.



Paint silver Bottle lacquer paint by Drybrush painting.


Paint silver Bottle lacquer paint by Drybrush painting.


Paint blue color of Bottle lacquer paint with a paint brush.


Paint red color of Bottle lacquer paint with a paint brush.


Peel Masking tape softly.


Stick Masking tape on the point you don't want to paint.


Paint red color with Lacquer Spray.


Peel Masking tape softly.


Paint silver Bottle lacquer paint by Drybrush painting.


After painting
Cut a bandage.


Glue with a Hot melt(glue gun).


Bind a wire.


Cut out Synthetic leather.


Wrap with a Plastic tape.


Attach the Empty spray can.
Wrap with a Plastic tape.


Complete phots
If you have any questions, please comment on my YouTube channel.
And please subscribe!





I joined interview movie in Official site of The Last Of Us.










Dismantle state.
