How to make upper armr armor (with templates)



Materials
[Materials for making templates]
-Drawing paper 10sheets
-Scotch tape(Sellotape) 1piece
-Packaging tape(parcel tape) 1piece

[Main materials]
-EVA foam
→1.5mm or 2mm thick 100cm X 20cm
→5mm thick 100cm X 50cm
-Synthetic leather 100cm X 50cm
-"Bond G17"(one of liqud glue in Japan) 100ml
-Wood glue 100ml
-Liquid super glue 3pieces
-Hot melt(glue gun) 10pieces
-Velcro 40cm
-Flour one bag

[Painting materials]
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) or acrylic paint proper quantity*
-Masking tape 1piece

*The paiting area is written in the package, refer it. Details are here.

Materials cost
1000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Lighter
-Soldering iron and soldering iron stand
-Paint tools, such as a paintbrush
-Sewing machine
-Sewing tools

Convenient tools when you have
-Art knife PRO
-Super glue Accelerator

Work time
10hours

Spec
-

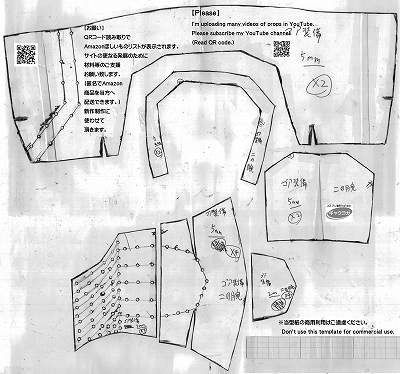

Template data
PDF format(A4 size)

-How to print is here.
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Size:Free size
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

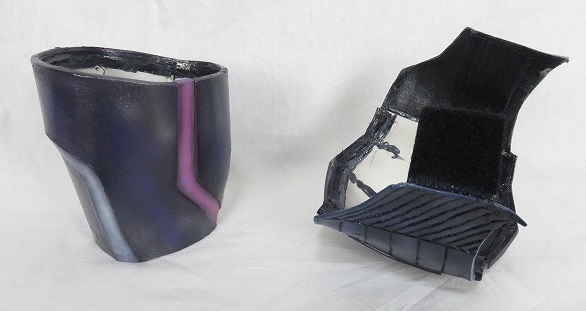

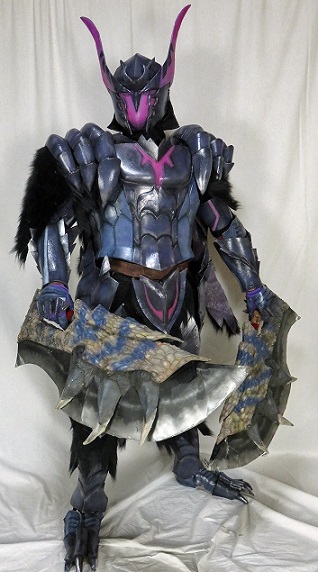

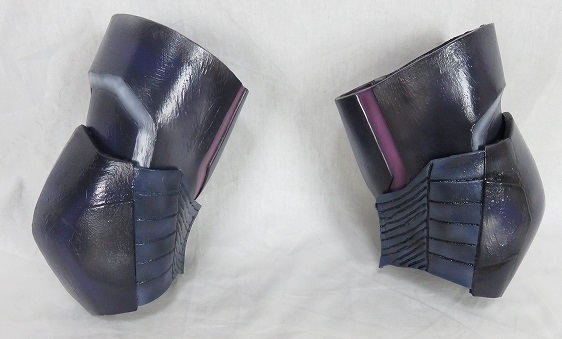

Completion drawing


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.


-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.


Tutorial video
When you watch this video before reading this page, you can understand this page better.

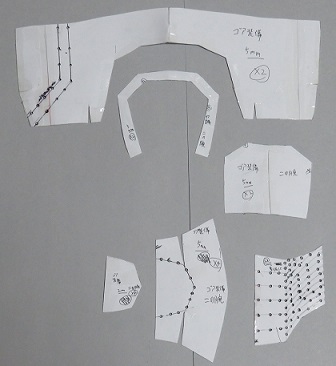

How to make templates

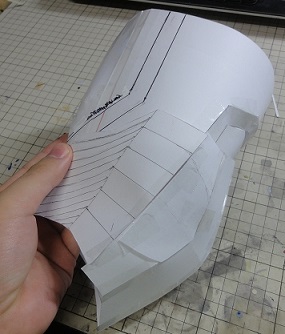

Make Templates from Drawing paper.
When you want to know how to make Templates, browse this page.



When you make a ideal from, cut open it. Use it.


How to build

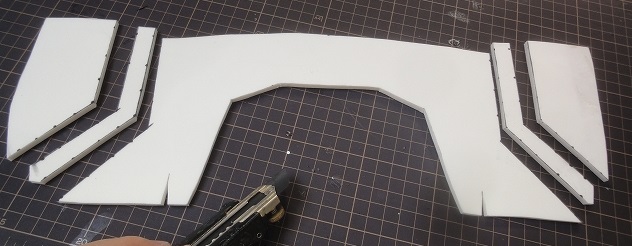

Cut material into the Templates form.

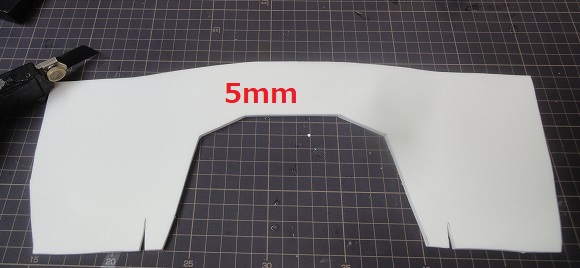

Cut out 5mm thick EVA foam.


**********************************************************************

EVA foam is a soft material.
You can process it easily.
Another name is EVA board, EVA zote, Craft foam etc.
I usually use one called "Lion board".
"Lion board" is sold only in Japan.

Watch video.

**********************************************************************


-------------------------------------------------------------------------------------------------------
【5mm厚COSボードをキャラヌノで買う】


【COSボードを楽天で買う】

-------------------------------------------------------------------------------------------------------
【5mm厚コスプレボードをAmazonで買う】


【コスプレボードを楽天で買う】

-------------------------------------------------------------------------------------------------------

**********************************************************************

Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

When you cut, put EVA foam on Cutting mat.
Don't cut in the air, while holding by hand.
Break a b blade frequentry, if you feel sharpness of using blade became bad.
If you want to do work more speedy, use "Running fire box cutter","Blade breaker".
"Running fire box cutter" can have 6 pieces blade inside.
"Blade breaker" can break easy and speedy.


Use Art knife PRO for small ornaments etc.

**********************************************************************

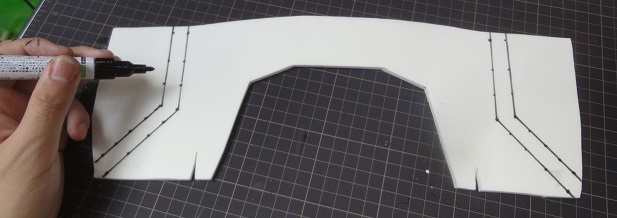

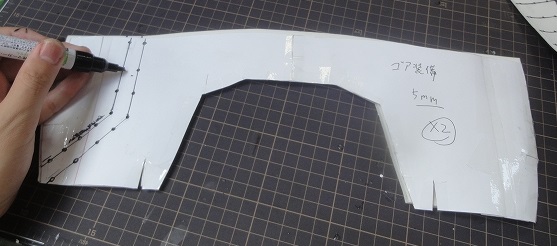

Make holes on the patterns of the Templates. Mark them with a pen.


I finished marking.

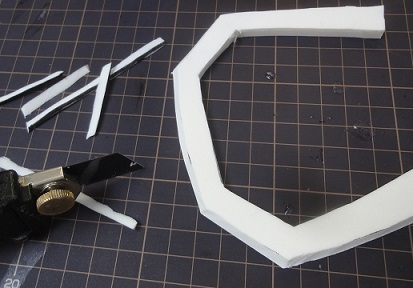

Cut out for making a hollow.

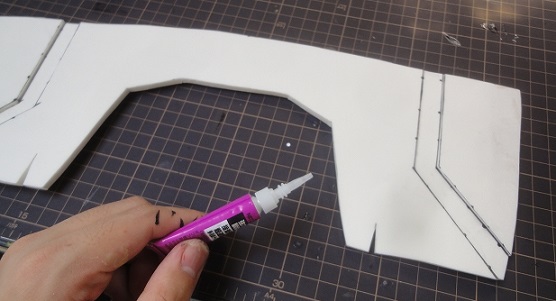

Shift the position. Glue with a Liquid super glue.


Cut material into the Templates form.
Cut out 5mm thick EVA foam.


Cut it into slant with a Box cutter.

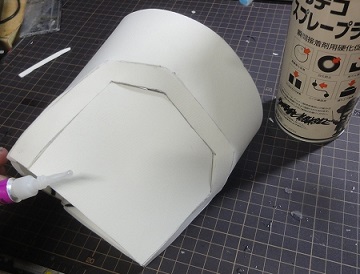

Glue with a Liquid super glue.

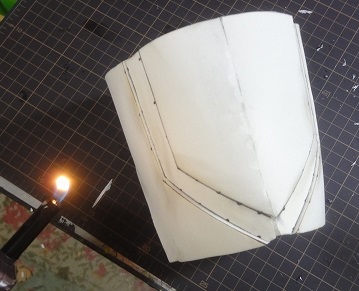

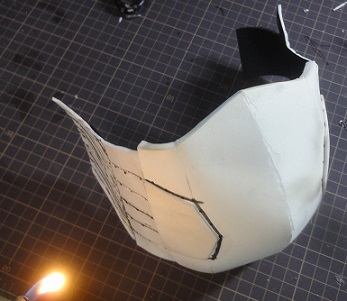

Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)

←ガス充填式ライターとガスボンベを使うとお得

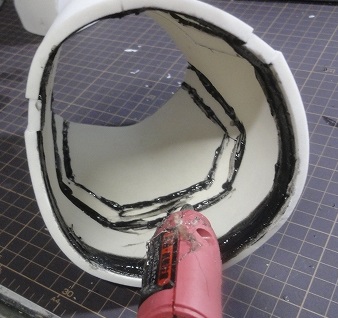

Reinforce by heaping a Hot melt(glue gun) on the backside of glueing places.



Cut material into the Templates form.
Cut out 5mm thick EVA foam.
Cut out 1.5mm or 2mm thick EVA foam.

-------------------------------------------------------------------------------------------------------
【1.5mm厚COSボードをキャラヌノで買う】


【COSボードを楽天で買う】

-------------------------------------------------------------------------------------------------------
【1.5mm厚コスプレボードをAmazonで買う】


【コスプレボードを楽天で買う】

-------------------------------------------------------------------------------------------------------

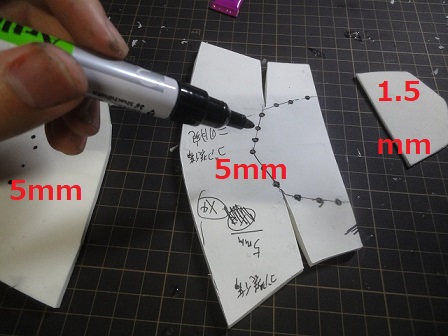

Make holes on the patterns of the Templates. Mark them with a pen.

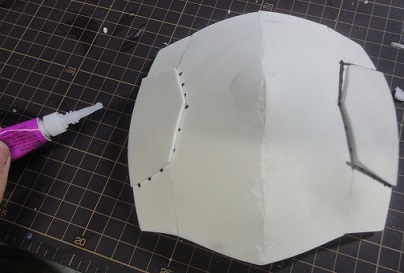

Glue with a Liquid super glue.


Glue with a Liquid super glue.

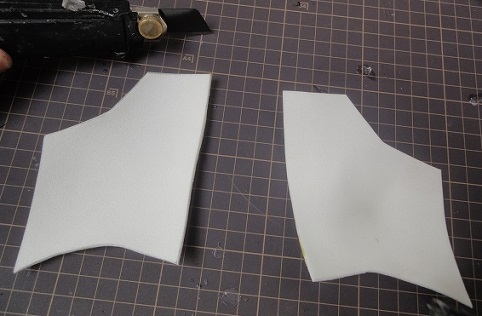

Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.

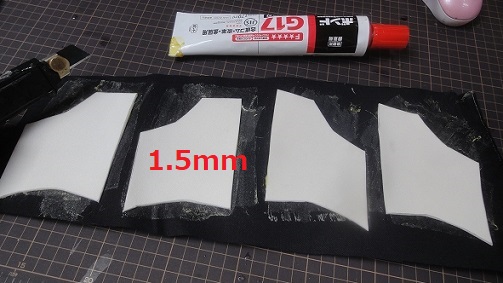

Glue Synthetic leather on the backside with a "Bond G17"(one of liqud glue in Japan) for reinforcement. Detailed process is here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.



I finished cutting.

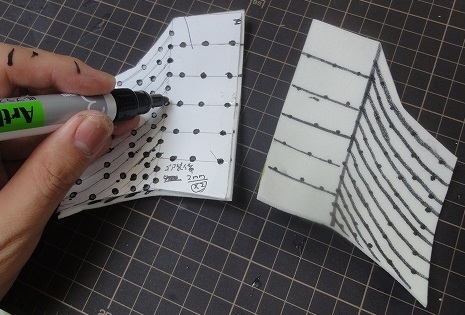

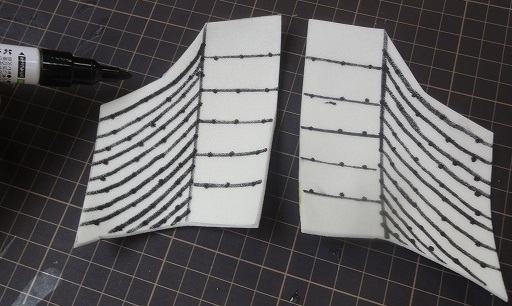

Make holes on the patterns of the Templates. Mark them with a pen.


I finished marking.

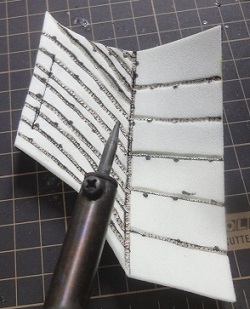

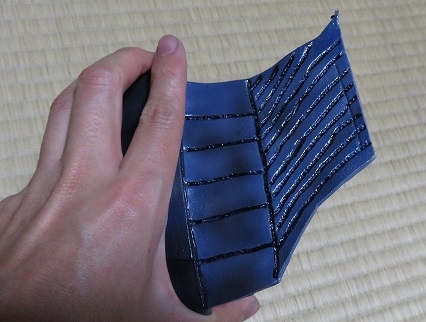

Dig a pattern with a Soldering iron.(Don't breathe in the smoke and don't put in eyes)

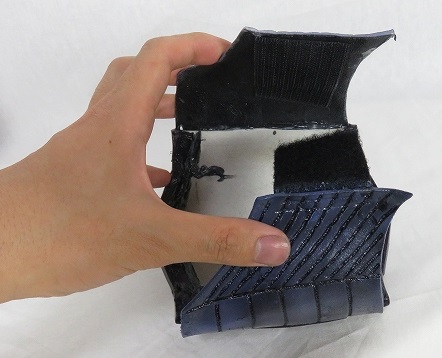

Sew Velcro with a sewing machine.



Glue with a Liquid super glue.


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)


Reinforce by heaping a Hot melt(glue gun) on the backside of glueing places.

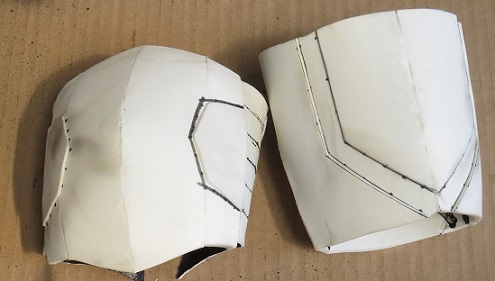

Present state.

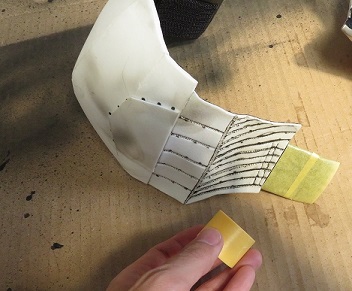

Stick Masking tape on the point you don't want to paint.

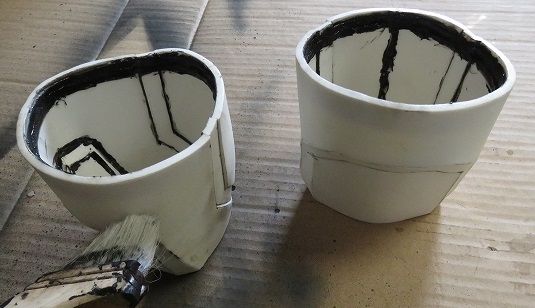

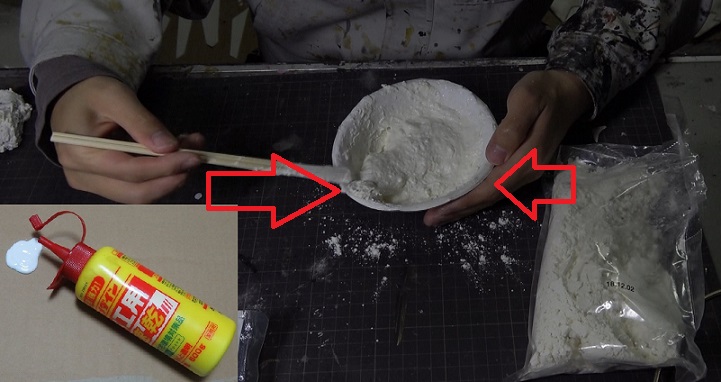

Mix Wood glue and Flour.



Paint mixed one.
Dry it for one day.
The surface becomes rough.


How to paint
Begin painting.

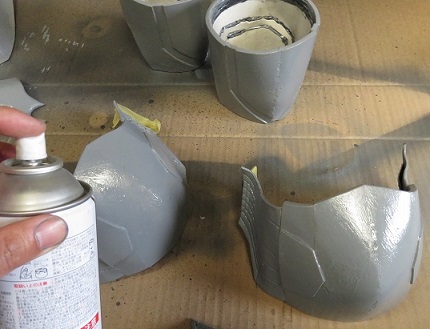

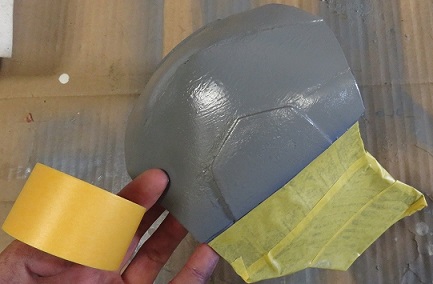

Paint gray color as undercoat color with Lacquer Spray.

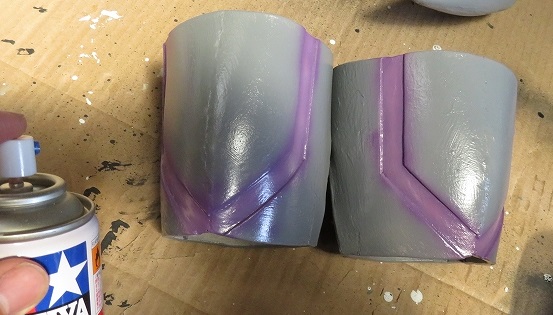

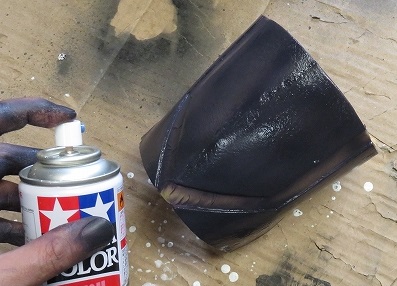

Paint purple with Lacquer Spray.


Paint blue purple with Lacquer Spray.


Stick Masking tape on the point you don't want to paint.


Stick Masking tape on the point you don't want to paint.

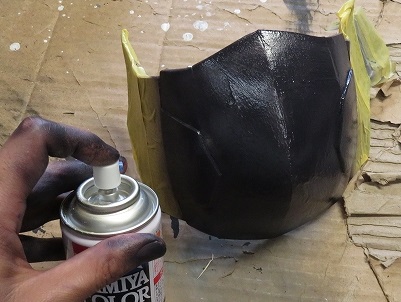

Paint dark purple with Lacquer Spray.


Paint dark purple with Lacquer Spray.


Actually, I used a Airbrush too.
If you want to make light and shade, use it.
About Airbrush is here.

←私が使っているエアブラシとコンプレッサー
