Gore Magala set
How to make mantle (with templates)



Materials
[Materials for making templates]
-Drawing paper 10sheets
-Tracing paper 300cm
-Scotch tape(Sellotape) 1piece
-Packaging tape(parcel tape) 1piece

[Main materials]
-EVA foam
→1.5mm or 2mm thick 100cm X 40cm
→5mm thick 100cm X 20cm
-Synthetic leather for the mantle 100cm X 200cm
-Fur 10cmm X 200cm
-"Bond G17"(one of liqud glue in Japan) 400ml
-Wood glue 100ml
-Liquid super glue 1pieces
-Hot melt(glue gun) 10pieces
-Velcro 40cm
-Flour one bag

[Painting materials]
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) or acrylic paint proper quantity*
-Masking tape 1piece

*The paiting area is written in the package, refer it. Details are here.

Materials cost
2000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Lighter
-Paint tools, such as a paintbrush

Convenient tools when you have
-Art knife PRO
-Super glue Accelerator

Work time
15hours

Spec
-

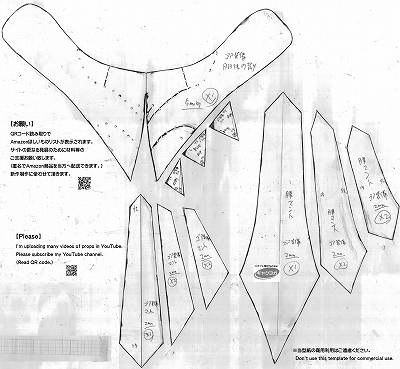

Template data
PDF format(A4 size)

-How to print is here.
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Size:Free size
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

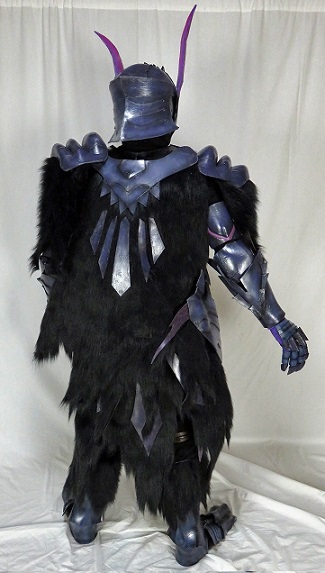

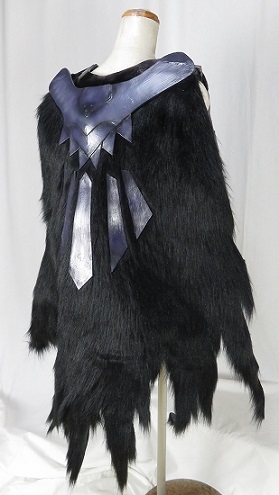

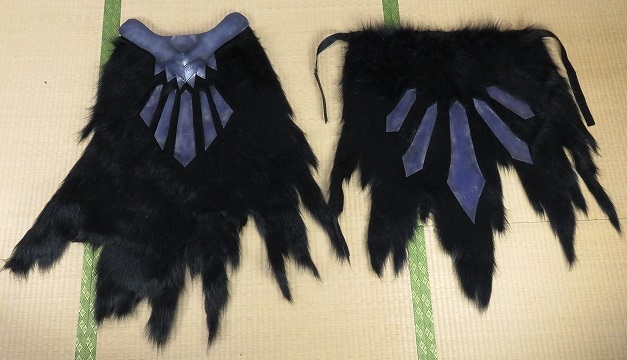

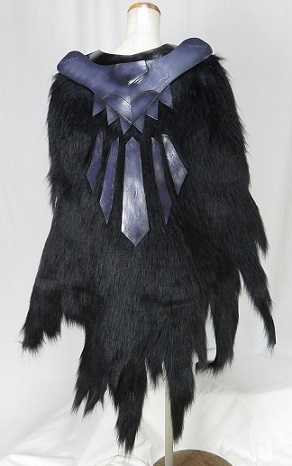

Completion drawing


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.


-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

Tutorial video
When you watch this video before reading this page, you can understand this page better.


How to make templates

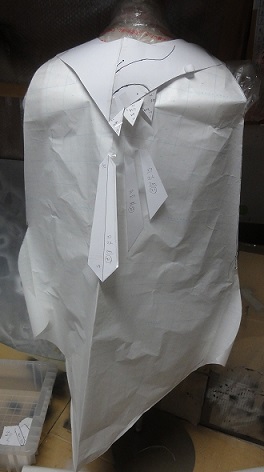

Make Templates from Drawing paper.
When you want to know detailed tutorial of making Templates, browse this page.
Make Templates from Tracing paper.




How to build

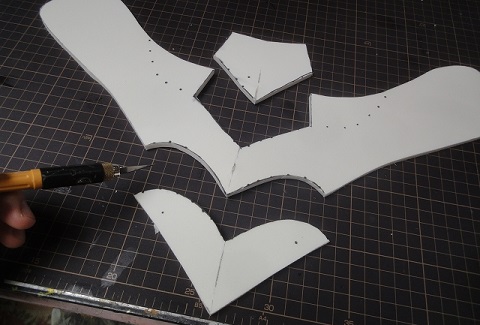

Cut material into the Templates form.

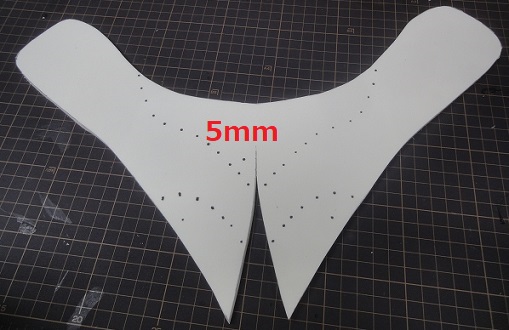

Cut out 5mm thick EVA foam.


**********************************************************************

EVA foam is a soft material.
You can process it easily.
Another name is EVA board, EVA zote, Craft foam etc.
I usually use one called "Lion board".
"Lion board" is sold only in Japan.

Watch video.

**********************************************************************


-------------------------------------------------------------------------------------------------------
【5mm厚COSボードをキャラヌノで買う】


【COSボードを楽天で買う】

-------------------------------------------------------------------------------------------------------
【5mm厚コスプレボードをAmazonで買う】


【コスプレボードを楽天で買う】

-------------------------------------------------------------------------------------------------------

**********************************************************************

Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

When you cut, put EVA foam on Cutting mat.
Don't cut in the air, while holding by hand.
Break a b blade frequentry, if you feel sharpness of using blade became bad.
If you want to do work more speedy, use "Running fire box cutter","Blade breaker".
"Running fire box cutter" can have 6 pieces blade inside.
"Blade breaker" can break easy and speedy.


Use Art knife PRO for small ornaments etc.

**********************************************************************


Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)


**********************************************************************


Super glue can glue a large surfaces easily.
But it can't glue a small surface such as this photo well


Then you should use a following spray.
I always use this.
Watch video.


Super glue accelerator
This can glue surfaces in several seconds.
When you use 100ml, you can make a armorset or about three weapons.
←100ml ←180ml ←420ml

About super glue
I use general liquid super glue.

**********************************************************************

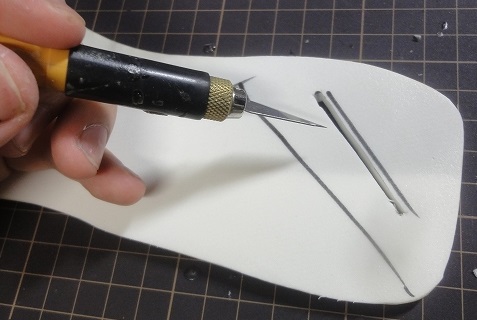

Cut out for making a hollow.

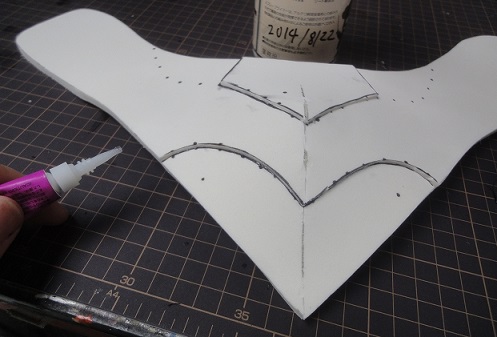

Shift the position. Glue with a Liquid super glue.

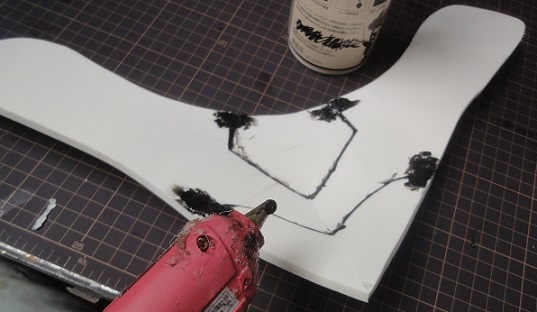

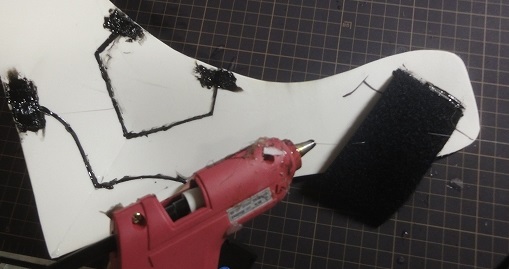

Reinforce by heaping a Hot melt(glue gun) on the backside of glueing places.

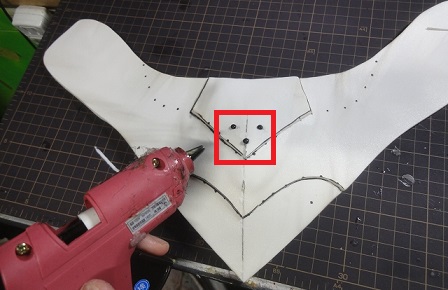

Make rivets with a Hot melt(glue gun).

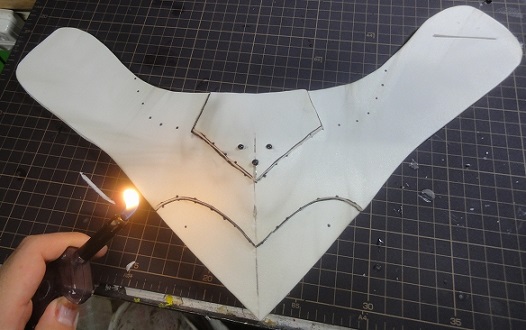

Remove the corner by toasting with a Lighter.(Don't breathe in the smoke and don't put in eyes)

←ガス充填式ライターとガスボンベを使うとお得

Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.

-------------------------------------------------------------------------------------------------------
【1.5mm厚COSボードをキャラヌノで買う】


【COSボードを楽天で買う】

-------------------------------------------------------------------------------------------------------
【1.5mm厚コスプレボードをAmazonで買う】


【コスプレボードを楽天で買う】

-------------------------------------------------------------------------------------------------------

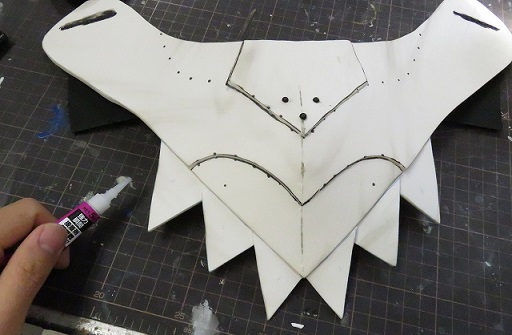

Glue with a Liquid super glue.

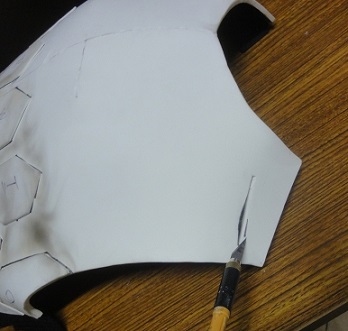

Make a hole with a Box cutter.


Glue Velcro with a Hot melt(glue gun).

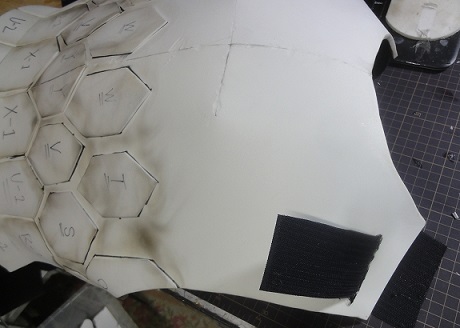

Glue Velcro on the body armor.
Make a hole with a Box cutter.


Glue Velcro with a Hot melt(glue gun).


Cut material into the Templates form.

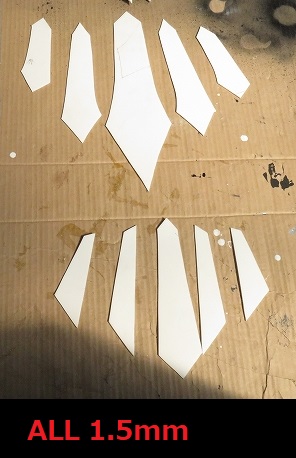

Cut out 1.5mm or 2mm thick EVA foam.

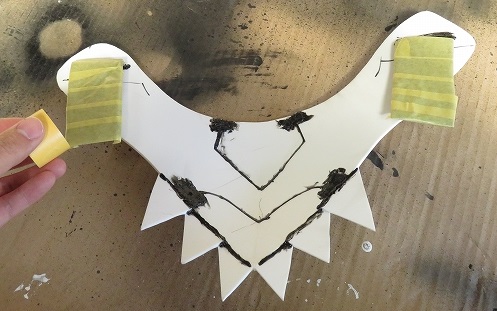

Stick Masking tape on the point you don't want to paint.



Mix Wood glue and Flour.

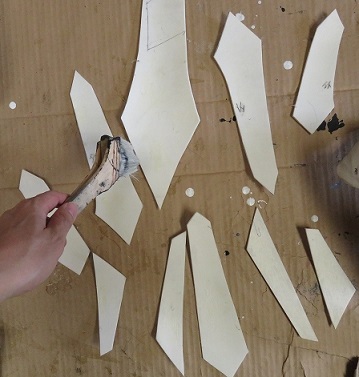

Paint mixed one.
Dry it for one day.
The surface becomes rough.


How to paint
Begin painting.

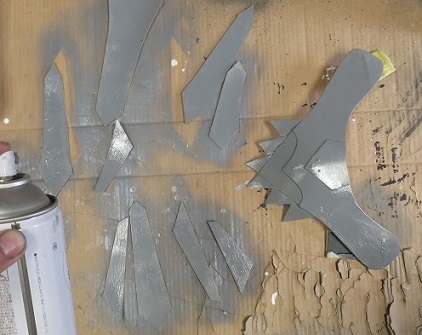

Paint gray color as undercoat color with Lacquer Spray.

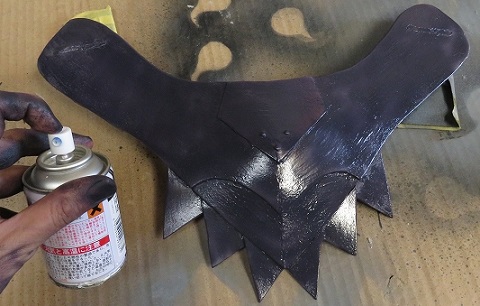

Paint dark purple with Lacquer Spray.

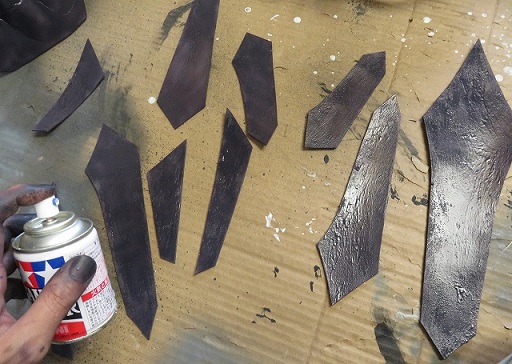

Paint dark purple with Lacquer Spray.


Actually, I used a Airbrush too.
If you want to make light and shade, use it.
About Airbrush is here.

←初心者にもオススメのセット、私も愛用してます。

After painting

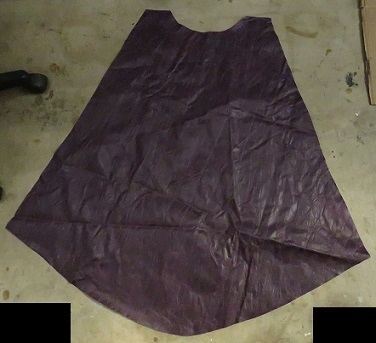

Cut out Synthetic leather.

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

PUストレッチレザー 生地 無地 全52色 黄 オレンジ 赤 ピンク 青系 17色布幅130cm 50cm以上10cm単位販売
価格:176円(税込、送料別) (2019/1/23時点)


[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

ソフトエナメル 生地 無地 42色 モノトーン、ゴールド・シルバー系 全42色 布幅130cm 50cm以上10cm単位販売
価格:188円(税込、送料別) (2019/1/23時点)

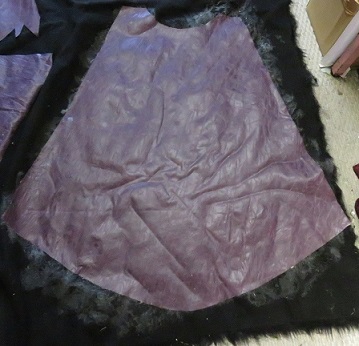

Glue it on Fur.
Glue Synthetic leather with "Bond G17"(one of liqud glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

フェイクファー 全4色 無地 黒 白 茶系 布幅150cm 50cm以上10cm単位販売
価格:199円(税込、送料別) (2018/4/6時点)

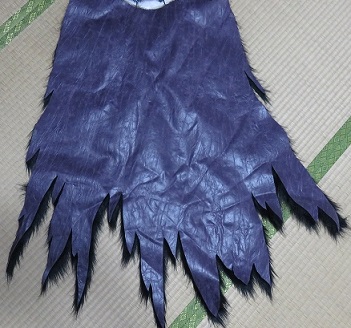

Glueing wea completed.


Cut out with a Box cutter.

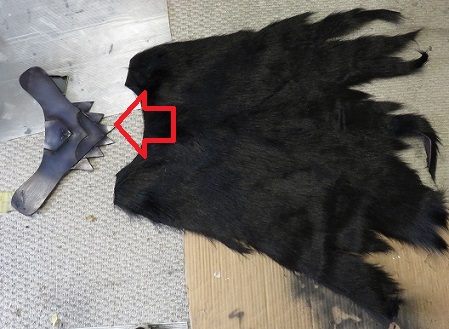

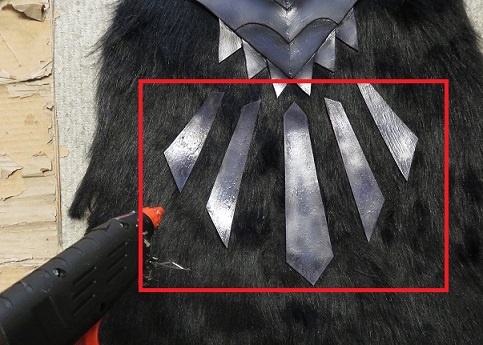

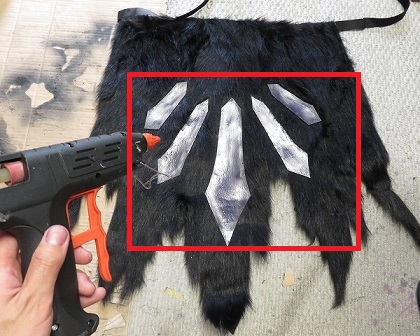

Glue with a Hot melt(glue gun).


Glue with a Hot melt(glue gun).

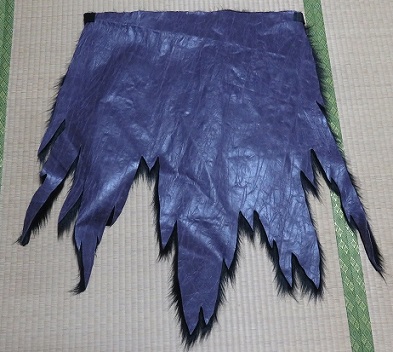

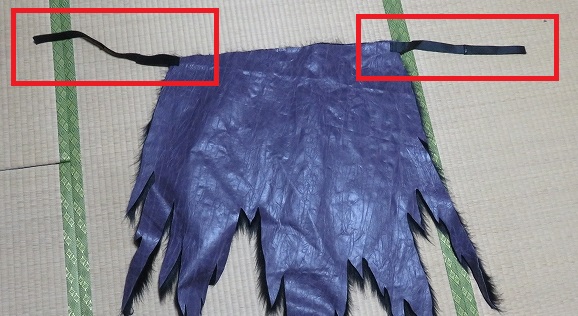

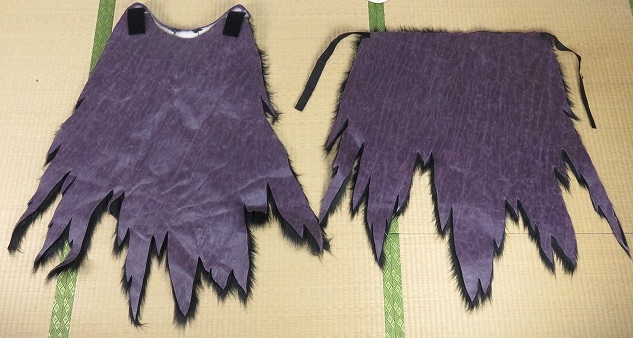

Make the mantle for waist.


Sew Velcro with a sewing machine.


Glue with a Hot melt(glue gun).
