How to make Seiryutou(Chinese weapon) (with templates)


Materials
[Materials for making templates]
-Drawing paper 10piece
-"Kousakuyousi"(one of hard paper in Japan) 5piece
-Scotch tape(Sellotape) 3piece
-Packaging tape(parcel tape) 1piece

[Main materials]
-EVA foam
→1.5mm or 2mm thick 100cm X 30cm
→5mm thick 100cm X 30cm
-"Kousakuyousi"(one of hard paper in Japan) 2piece
-Liquid super glue 7piece
-Hot melt(glue gun) 20piece
-Wire 30cm
-PVC pipe(diameter 26.0mm) 1piece
-Stick for jointing PVC pipe 25cm

[Painting materials]
1.When a undercoat is Gesso
-Gesso 100ml
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) or acrylic paint proper quantity*

2.When a undercoat is Thinned "Bond G17"(one of liqud glue in Japan)
-"Bond G17"(one of liqud glue in Japan) 100ml
-lacquer thinner 100ml
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*
-Masking tape 1piece

*The paiting area is written in the package, refer it. Details are here.

Materials cost
3000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Lighter
-Soldering iron and soldering iron stand
-Saw or Pipe cutter
-Paint tools, such as a paintbrush
-Pliers

Convenient tools when you have
-Art knife PRO
-Heat gun
-Super glue Accelerator

Work time
50Hours

Spec
Weight 800g
Length 210cm

Template data
PDF format(A4 size)

-How to print is here.
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

Completion drawing


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.


-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

How to make templates
Make a blade.
Make Templates from "Kousakuyousi"(one of hard paper in Japan).
When you want to know detailed tutorial of making Templates, browse this page.



I finished making the Templates.


How to build
Cut material into the Templates form.
Cut out "Kousakuyousi"(one of hard paper in Japan).
Cut out 5mm thick EVA foam.
Glue with a Liquid super glue.


**********************************************************************


コスプレ造形では主に柔らかくて曲げる事ができる板状素材を材料として使う。
様々な商品があるが、主な違いは「サイズ、厚み、カラー等の商品ラインナップ」や「表面のきめ細やかさ」等である。
加工の仕方はどの商品も概ね同じである。
コスプレイヤーがよく使う商品をいくつか紹介する。

1.COSボード
クラッセが販売する商品。
従来販売されていた他社製品ボードより、
表面がとてもきめ細やかで塗装の仕上がりがとても良い。
ギャクヨガが現在メインに使っているボードである
具体的な商品ラインナップについてはこちらをご覧ください。

主な取扱店は以下の通り。
クラッセ(ネット通販)
キャラヌノ(ネット通販)
ユザワヤ(楽天市場、及び一部店舗にて店頭販売)
・東急ハンズ(一部の店舗にて店頭販売)
・ACOS(一部の店舗にて店頭販売)
・アニメイト(一部の店舗にて店頭販売)
・らしんばん(一部の店舗にて店頭販売)
・まんだらけ(一部の店舗にて店頭販売)
・大塚屋車道本店
・ヴィレッジヴァンガードイオンモール(一部の店舗にて店頭販売)
COS-LOG(店頭販売)


こちらのページでCOSボードを使った作例や、更なる詳細を解説。
動画もご覧下さい。


2.コスプレボード
コスプレファクトリーが販売する商品。
従来販売されていた他社製品ボードより、
表面がとてもきめ細やかで塗装の仕上がりがとても良い。
具体的な商品ラインナップについてはコスプレ ファクトリーのサイトをご覧ください。

主な取扱店は以下の通り。
Amazon
コスプレ ファクトリー(楽天市場)
新宿オカダヤ(楽天市場、及び店頭販売)
仮装堂(店頭販売)


こちらのページでコスプレボードを使った作例や、更なる詳細を解説。
動画もご覧下さい。


3.ライオンボード(別名リアラボード、ソフトボード)
光洋産業が製造しているボード。
ライオンボードは通称であり、正式名称はリアラボード、ソフトボードである。

主な取扱店は以下の通り。
Amazon
東急ハンズ(店頭販売、及びネット通販)
・各種コスプレ関連インターネットショップ
・アニメイト、らしんばん等の一部のアニメ系ショップでの店頭販売
・一部のコスプレ関連ショップでの店頭販売
・一部の生地、手芸店(ユザワヤ等)での店頭販売
・一部の画材店での店頭販売
・一部の美術系大学の売店での店頭販売
・一部の大型ホームセンターでの店頭販売


こちらのページでライオンボードを使った作例等、更なる詳細を解説。
動画もご覧下さい。


4.EVAスポンジシート
100円ショップのダイソーで販売されている商品。
100円の為サイズが小さく商品バリエーションは少ないが、
全国各地のダイソーで手に入る為入手が容易なのが特徴。

こちらのページでより詳細に解説。
**********************************************************************


当作例はライオンボード(別名:リアラボード、ソフトボード)を使用した。

-------------------------------------------------------------------------------------------------------
【5mm厚COSボードをキャラヌノで買う】


【COSボードを楽天で買う】

-------------------------------------------------------------------------------------------------------
【5mm厚コスプレボードをAmazonで買う】


【コスプレボードを楽天で買う】

-------------------------------------------------------------------------------------------------------

**********************************************************************

まず、刃をOLFA社の特選黒替刃に変更することを推奨する。
ホームセンターで販売されている。
この刃は切れ味が通常の刃とは別次元。
特に斜め切りをする場合に威力を発揮する。
私は長年この黒刃しか使っていない。
尚、カッターナイフには大サイズと、小サイズが存在するが、
上記写真の様な大サイズの方が力が入れやすくてオススメ。
←10枚入り ←50枚入りお得パック

切断時はCOSボード、コスプレボード、ライオンボード等カッターマットに置き、
手でおさえながら切断する。
COSボード、コスプレボード、ライオンボード等を手で持ち、空中で切るのはNG。
刃の切れ味が落ちたと思ったらこまめに刃を折る。

作業をはかどらせたいなら、内部に刃を6枚収納できる連発式カッター
簡単に刃を折る事ができる刃折器を併用すると良い。


カッターナイフでは切りにくい細かな模様等を切る際はアートナイフPROを使うとよい。

**********************************************************************


Dig a ditch.
Paste a wire.
Glue with a Hot melt(glue gun).



Make one more blade from "Kousakuyousi"(one of hard paper in Japan).
Glue with a Liquid super glue.


Paste to one more side similarly.
(If you want to more strong blade, use also Plastic sheets. Details are here.)
Glue edges of the blade.
Glue with "Bond G17"(one of liqud glue in Japan).
Paint it with a broken piece of "Kousakuyousi"(one of hard paper in Japan) as a brush.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.



Reinforce the blade by painting Liquid super glue on the edge.


Dig a pattern with a Soldering iron.(Don't breathe in the smoke and don't put in eyes)



Fill the back with EVA foam.


Cut out 5mm thick EVA foam.
Make 8mm width belts.
Glue with a Liquid super glue.


How to make templates
Make a dragon objet.
Make Templates from Drawing paper.
Repeat cutting and pasting.



Cut open.
Copy to new Drawing paper and make a fair copy.


Assemble the fair copy.


Repeat cutting and pasting.


When you make a ideal from, cut open it. Use it.


How to build
Cut material into the Templates form.
Cut out 5mm thick EVA foam.


Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)


**********************************************************************


Super glue can glue a large surfaces easily.
But it can't glue a small surface such as this photo well


Then you should use a following spray.
I always use this.
Watch video.


Super glue accelerator
This can glue surfaces in several seconds.
When you use 100ml, you can make a armorset or about three weapons.
←100ml ←180ml ←420ml

About super glue
I use general liquid super glue.

**********************************************************************


Glue with a Liquid super glue.


I finished glueing.


Bend by heating with a Lighter or a Heat gun.

←ガス充填式ライターとガスボンベを使うとお得


Make a hole put on the blade.
Make a hole with a Box cutter.


Cut a PVC pipe.
PVC pipe can be cut with a saw.
But a Pipe cutter is more better.
It can cut quickly and neatly.



This is a video of cutting method of PVC pipe, bending method, jointing method.

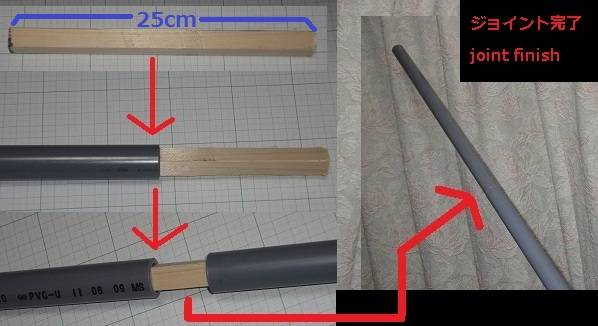

When you use this, joint with a stick.


Make a joint stick.
The best length is 25cm.
There are two methods.
-------------------------------------------------------------------------------------------
1.Iron gardening stick and EVA foam
It's take time, however jointing power is strong.

Cut Iron gardening stick. How to cut is here.
Cut out 1.5mm or 2mm thick EVA foam.
Glue with a Liquid super glue.

-------------------------------------------------------------------------------------------
2.Wood stick
It's a easy method, but jointing power is weak than above method.

Cut a wood stick with a saw.
Shave it with Box cutter as necessary.

-------------------------------------------------------------------------------------------

Insert wood stick to PVC pipe you use in shop,and search good thickness wood stick.
If you can't search it,buy big size.And shave it with Box cutter.
Details are here.


Cover PVC pipe to the wire.


Glue with a Hot melt(glue gun).


I finished glueing.


Draw patterns with a Hot melt(glue gun).


I finished drawing.


Make a parts like hairs.
Reel 1.5mm or 2mm thick EVA foam to a wire and
Glue with a Liquid super glue.


-------------------------------------------------------------------------------------------------------
【1.5mm厚COSボードをキャラヌノで買う】


【COSボードを楽天で買う】

-------------------------------------------------------------------------------------------------------
【1.5mm厚コスプレボードをAmazonで買う】


【コスプレボードを楽天で買う】

-------------------------------------------------------------------------------------------------------

I finished glueing.


Cut to proper length with pliers.


Glue with a Hot melt(glue gun).


I finished glueing.


Make a end of stick.
Cut out "Kousakuyousi"(one of hard paper in Japan).
Cut out 10mm thick EVA foam.
Glue with a Liquid super glue.


-------------------------------------------------------------------------------------------------------
【10mm厚COSボードをキャラヌノで買う】


【COSボードを楽天で買う】

-------------------------------------------------------------------------------------------------------
【10mm厚コスプレボードをAmazonで買う】


【コスプレボードを楽天で買う】

-------------------------------------------------------------------------------------------------------

I finished glueing.


Paste with Hot melt(glue gun) to end of PVC pipe.


Make a grip.
Cut out 1.5mm or 2mm thick EVA foam.
Dig a pattern with a Soldering iron.(Don't breathe in the smoke and don't put in eyes)


Paste with Liquid super glue to PVC pipe.
Cut out 5mm thick EVA foam.
Glue with a Liquid super glue.


I finished glueing.


How to paint
Begin painting.
At first, paint a undercoat on EVA foam.
The effects are as follows.

-Color becomes well.
-It becomes hard to come off.
-Gloss comes out well.
-You can save quantity of the paint.

There are two methods.
-------------------------------------------------------------------------------------------
1.Gesso
This is easy.

【Merit】
-It's usable just to paint with a paint brush.
-Gesso don't contain thinner, then you can use it in the room.
-You can use also Acrylic paint.
-There are several colors one, white black etc.

【Demerit】
-It's easy to come off than Thinned "Bond G17"(one of liqud glue in Japan).
 Then, use this for weapons and armors without moving parts.
-The gross is smaller than Thinned "Bond G17"(one of liqud glue in Japan).

【Commodities page】
Gesso or Black Gesso
or

【Paint】
Lacquer Spray or Bottle lacquer paint or acrylic paint
or
-------------------------------------------------------------------------------------------
2."Bond G17"(one of liqud glue in Japan)
This is difficult, however it's almighty.

【Merit】
-It'st hard to peel off.
-It can use for PVC pipe or plastic sheets.

【Demerit】
-"Bond G17" is japanese commodity.
 Then you can't get it easily.
 Please use others. For example, you can substitute wood glue for it.
-You must thin it with lacquer thinner.
-It needs thinner, then you must work outdoors.
-It burns easily.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
The parts will be charred in seconds.

【Tutorial video】


【Commodities page】
"Bond G17"(one of liqud glue in Japan) thined with lacquer thinner
-for big things -for small things
-------------------------------------------------------------------------------------------
-About paint
I use following paint.


You can use acrylic paint, when you use Gesso.

-------------------------------------------------------------------------------------------

I use Thinned "Bond G17"(one of liqud glue in Japan) in this tutorial.
But I recommend Gesso for begginers.
*When you use Gesso, don't paint it on the PVC pipe. Beforehand do this process.
Or glue Synthetic leather with "Bond G17"(one of liqud glue in Japan).


Stand it with a wood struck big nails.


Paint "Bond G17"(one of liqud glue in Japan) thined with lacquer thinner three or four times.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
(It will char in seconds.)
Dry it about 2 ~ 6 hours.


Paint black color as undercoat color with Lacquer Spray.


Paint gold Bottle lacquer paint by Drybrush painting.


Drybrush painting is easy, you can do it with a paint brush.
Read here or watch this video.


When you paint Bottle lacquer paint, use a paintbrush,silicon cup(Use as a paint plate. It can easy to peel paints after dry.),
panint stick, thinner.


Paint silver with Lacquer Spray.


Actually, I used a Airbrush too.
If you want to make light and shade, use it.
About Airbrush is here.

←初心者にもオススメのセット、私も愛用してます。
