The Last Of Us
How to make Machete (with templates)


Materials
[Materials for making templates]
-"Kousakuyousi"(one of hard paper in Japan) 5sheets

[Main materials]
-EVA foam
→10mm thick 100cm X 10cm
-"Bond G17"(one of sticky glue in Japan) 10ml
-Liquid super glue 2pieces
-Hot melt(glue gun) 10pieces
-Aluminum stick 1piece
-Plastic tape 1piece

[Painting materials]
1.When a undercoat is Gesso
-Gesso 50ml
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) or acrylic paint proper quantity*

2.When a undercoat is Thinned "Bond G17"(one of liqud glue in Japan)
-"Bond G17"(one of sticky glue in Japan) 50ml
-lacquer thinner 50ml
-Paintbrush 1piece
-Paper cup, bowl etc 1piece
-lacquer paint(Bottle lacquer paint, Lacquer Spray etc) proper quantity*

*The paiting area is written in the package, refer it. Details are here.

Materials cost
1000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Hot melt(glue gun)
-Lighter
-Paint tools, such as a paintbrush

Convenient tools when you have
-Art knife PRO
-Super glue Accelerator

Work time
6hours

Spec
Weight 70g
Length 60cm

Template data
PDF format(A4 size)

-How to print is here.
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

Completion drawing


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.


-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

How to make templates
Make Templates from "Kousakuyousi"(one of hard paper in Japan).



How to build
Make blades.
Cut material into the Templates form.
Cut out "Kousakuyousi"(one of hard paper in Japan).


Use Aluminum stick as a core.
You can use a Wood stick, a plastic stick, a Gardening stick made by glass fiber instead of it.
(If you worry about strength, insert Gardening stick made by glass fiber the inside of Aluminum stick.Details are here.)
Cut it into appropriate length with a Pliers.


Glue the Aluminum stick.
Glue with a Hot melt(glue gun).


↑ギャクヨガが愛用しているグルーガンです、口が広くてとても使いやすい！

Glue another blade.
Glue with a Hot melt(glue gun).


Paste edge of blade with "Bond G17"(one of sticky glue in Japan).
Paint it with a broken piece of "Kousakuyousi"(one of hard paper in Japan) as a brush.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.



Reinforce the blade by painting Liquid super glue on the edge.


Fill the back of blade with a Hot melt(glue gun).


Stroke the back of blade with a tip of Hot melt(glue gun), then the surface becomes flat.


Make a grip.
Cut material into the Templates form.
Cut out 10mm thick EVA foam.


**********************************************************************

EVA foam is a soft material.
You can process it easily.
Another name is EVA board, EVA zote, Craft foam etc.
I usually use one called "Lion board".
"Lion board" is sold only in Japan.

Watch video.

**********************************************************************

-------------------------------------------------------------------------------------------------------
【10mm厚COSボードを楽天で買う】

COSボード Sサイズ(450mm×600mm) 10mm厚 白 価格：986円（税込、送料別) (2019/10/23時点)

COSボード Mサイズ(600mm×900mm) 10mm厚 白 価格：1849円（税込、送料別) (2019/10/23時点)

COSボード Lサイズ(900mm×1800mm) 10mm厚 白 価格：6274円（税込、送料別) (2019/10/23時点)

COSボード Sサイズ(450mm×600mm) 10mm厚 黒 価格：1232円（税込、送料別) (2019/10/23時点)

COSボード Mサイズ(600mm×900mm) 10mm厚 黒 価格：2353円（税込、送料別) (2019/10/23時点)

【10mm厚COSボードをキャラヌノで買う】

-------------------------------------------------------------------------------------------------------
【10mm厚コスプレボードをAmazonで買う】


【10mm厚コスプレボードを楽天で買う】

コスプレボード 白10mm×660mm×500mm 価格：880円（税込、送料別) (2019/10/23時点)

コスプレボード　白10mm×660mm×1000mm 価格：1540円（税込、送料別) (2019/10/23時点)

コスプレボード　黒10mm×660mm×1000mm 黒だから裏塗り処理を省略出来る 価格：2486円（税込、送料別) (2019/10/23時点)

-------------------------------------------------------------------------------------------------------

**********************************************************************

Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

When you cut, put EVA foam on Cutting mat.
Don't cut in the air, while holding by hand.
Break a b blade frequentry, if you feel sharpness of using blade became bad.
If you want to do work more speedy, use "Running fire box cutter","Blade breaker".
"Running fire box cutter" can have 6 pieces blade inside.
"Blade breaker" can break easy and speedy.


Use Art knife PRO for small ornaments etc.

**********************************************************************

Mark with a pen.


Cut out with a Box cutter.

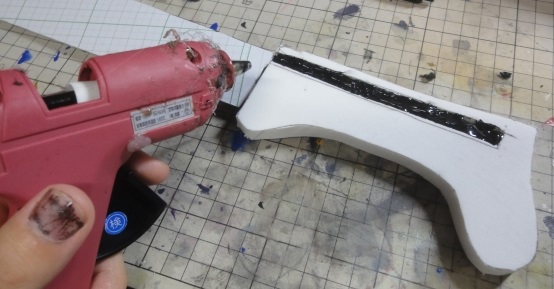

Glue with a Hot melt(glue gun).


Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)


**********************************************************************


Super glue can glue a large surfaces easily.
But it can't glue a small surface such as this photo well


Then you should use a following spray.
I always use this.
Watch video.


Super glue accelerator
This can glue surfaces in several seconds.
When you use 100ml, you can make a armorset or about three weapons.
←100ml ←180ml ←420ml

About super glue
I use general liquid super glue.

**********************************************************************

Form by shaving with a Box cutter.


I finished shaving.


Remove the corner by toasting with a Lighter.(Don't breathe in the smoke, be careful about fire)


↑ギャクヨガ愛用ライター、使いやすい！ ガスがなくなったらボンベで充填しましょう

Push back of Box cutter before getting cold
The form becomes minus screw form when it gets cold.


Push back of Box cutter before getting cold
The form becomes minus screw form when it gets cold.


It got cold and hardened


Present state.


How to paint
Begin painting.
At first, paint a undercoat on EVA foam.
The effects are as follows.

-Color becomes well.
-It becomes hard to come off.
-Gloss comes out well.
-You can save quantity of the paint.

There are two methods.
-------------------------------------------------------------------------------------------
1.Gesso
This is easy.

【Merit】
-It's usable just to paint with a paint brush.
-Gesso don't contain thinner, then you can use it in the room.
-You can use also Acrylic paint.
-There are several colors one, white black etc.

【Demerit】
-It's easy to come off than Thinned "Bond G17"(one of liqud glue in Japan).
 Then, use this for weapons and armors without moving parts.
-The gross is smaller than Thinned "Bond G17"(one of liqud glue in Japan).

【Commodities　page】
Gesso or Black Gesso
or

【Paint】
Lacquer Spray or Bottle lacquer paint or acrylic paint
or
-------------------------------------------------------------------------------------------
2."Bond G17"(one of liqud glue in Japan)
This is difficult, however it's almighty.

【Merit】
-It'st hard to peel off.
-It can use for PVC pipe or plastic sheets.

【Demerit】
-"Bond G17" is japanese commodity.
 Then you can't get it easily.
 Please use others. For example, you can substitute wood glue for it.
-You must thin it with lacquer thinner.
-It needs thinner, then you must work outdoors.
-It burns easily.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
The parts will be charred in seconds.

【Tutorial video】


【Commodities　page】
"Bond G17"(one of sticky glue in Japan) thined with lacquer thinner
-for big things -for small things
-------------------------------------------------------------------------------------------
-About paint
I use following paint.


You can use acrylic paint, when you use Gesso.

-------------------------------------------------------------------------------------------

I use Gesso in this tutorial.


Paint Gesso twice or three times with a brush.
Dry it about 2 ~ 6 hours.


Paint gray color as undercoat color with Lacquer Spray.


Paint black color as undercoat color with Lacquer Spray.


Paint silver Bottle lacquer paint by Drybrush painting.


Drybrush painting is easy, you can do it with a paint brush.
Read here or watch this video.


When you paint Bottle lacquer paint, use a paintbrush,silicon cup(Use as a paint plate. It can easy to peel paints after dry.),
panint stick, thinner.



Paint rust color.
Paint brown color of Bottle lacquer paint with a paint brush.
Tap with tip of brush.


Paint orange color of Bottle lacquer paint with a paint brush.
Tap with tip of brush.


Present state.


Paint ivory color of Bottle lacquer paint with a paint brush.


Drybrush paint brown color Bottle lacquer paint with a paint brush.


After painting
Wrap a Plastic tape.
