How to make 7 inch tabletPC holder (with templates)


Materials
[Materials for making templates]
-"Kousakuyousi"(one of hard paper in Japan) 5sheets

[Main materials]
-EVA foam
→1.5mm or 2mm thick 100cm X 20cm
-Synthetic leather 100cm X 20cm
-"Bond G17"(one of sticky glue in Japan) 100ml
-Wood glue 100ml
-Liquid super glue 1pieces
-Rivet 10pieces

[Painting materials]
-

Materials cost
1000Yen (about 100Yen = 1dollar)

Tools
-Writing implement(Pencil,eraser,ballpoint,Magic Marker,ruler)
-Scissors
-Box cutter(Use also a "Pro blade" and a "Blade breaker")
-Cutting mat
-Lighter
-Punch and hammer
-Tool set required for rivet

Convenient tools when you have
-Art knife PRO
-Heat gun
-Super glue Accelerator

Work time
2hours

Spec
-

Template data
PDF format(A4 size)

-How to print is here.
-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)
-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

Completion drawing


Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.


-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

How to make templates
Make Templates from "Kousakuyousi"(one of hard paper in Japan).
When you want to know how to make Templates, browse this page.



How to build
Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.


**********************************************************************

EVA foam is a soft material.
You can process it easily.
Another name is EVA board, EVA zote, Craft foam etc.
I usually use one called "Lion board".
"Lion board" is sold only in Japan.

Watch video.

**********************************************************************


-------------------------------------------------------------------------------------------------------
【1.5mm厚COSボードを楽天で買う】

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Sサイズ(450mm×600mm) 1.5mm厚 白
価格:359円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 1.5mm厚 白
価格:672円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Lサイズ(900mm×1800mm) 1.5mm厚 白
価格:1681円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード Mサイズ(600mm×900mm) 1.5mm厚 黒
価格:672円(税込、送料別) (2019/10/23時点)

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

COSボード(シールタイプ)Mサイズ(600mm×900mm) 1.5mm厚 白
価格:1120円(税込、送料別) (2019/10/23時点)

【1.5mm厚COSボードをキャラヌノで買う】

-------------------------------------------------------------------------------------------------------
【1.5mm厚コスプレボードをAmazonで買う】


【1.5mm厚コスプレボードを楽天で買う】

[商品価格に関しましては、リンクが作成された時点と現時点で情報が変更されている場合がございます。]

コスプレボード 白1.5mm×660mm×1000mm
価格:605円(税込、送料別) (2019/10/23時点)

-------------------------------------------------------------------------------------------------------

**********************************************************************

Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

When you cut, put EVA foam on Cutting mat.
Don't cut in the air, while holding by hand.
Break a b blade frequentry, if you feel sharpness of using blade became bad.
If you want to do work more speedy, use "Running fire box cutter","Blade breaker".
"Running fire box cutter" can have 6 pieces blade inside.
"Blade breaker" can break easy and speedy.


Use Art knife PRO for small ornaments etc.

**********************************************************************


Glue Synthetic leather with "Bond G17"(one of sticky glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.



Glue Synthetic leather with "Bond G17"(one of sticky glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.


I finished glueing.


Bend by heating with a Lighter or a Heat gun.(Be careful about fire)


↑ギャクヨガ愛用ライター、使いやすい! ガスがなくなったらボンベで充填しましょう


I finished bending.


Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.


Glue Synthetic leather with "Bond G17"(one of sticky glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.


I finished glueing.


Make hole with a Punch.

←手で押しこむだけでお手軽なタイプ←ハンマーで叩くタイプ

Make hole with a Punch.


Attach Rivet with a striking stick. Details are here.


Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.
Glue Synthetic leather with "Bond G17"(one of sticky glue in Japan). Details are here.
Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.


Make hole with a Punch.


Fold in two.


Attach Rivet with a striking stick. Details are here.


I finished attaching.


Fold in.


Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)


**********************************************************************


Super glue can glue a large surfaces easily.
But it can't glue a small surface such as this photo well


Then you should use a following spray.
I always use this.
Watch video.


Super glue accelerator
This can glue surfaces in several seconds.
When you use 100ml, you can make a armorset or about three weapons.
←100ml ←180ml ←420ml

About super glue
I use general liquid super glue.

**********************************************************************


Please
I'm making Yotube videos.
Please watch them and please subscribe my YouTube channel.
These are new videos.

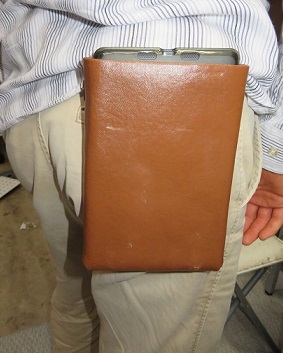

It can be attached to a belt.
