Additional explanation

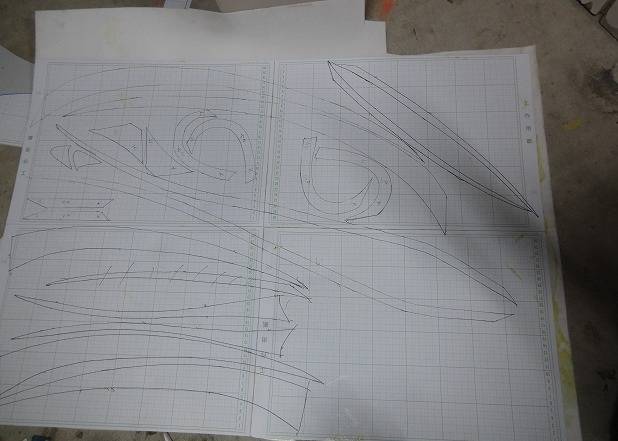

-After printing, it becomes easy to use by sticking it on Drawing paper with spray glue.
-Mentions of "x1","x2" etc are the numbers of sheets.
(If you need both arms or both legs etc, cut the number of double.)

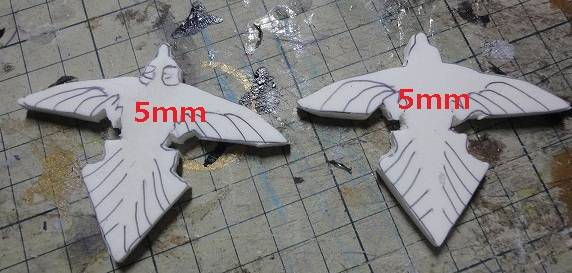

-Mentions of "2mm" , "5mm" etc are thickness of EVA foam.

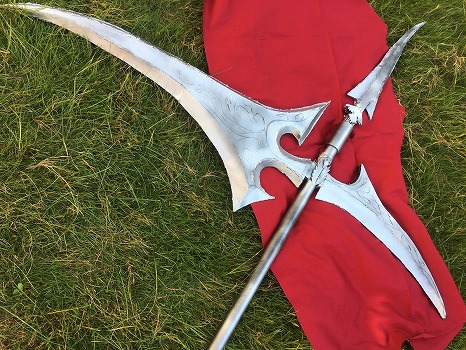

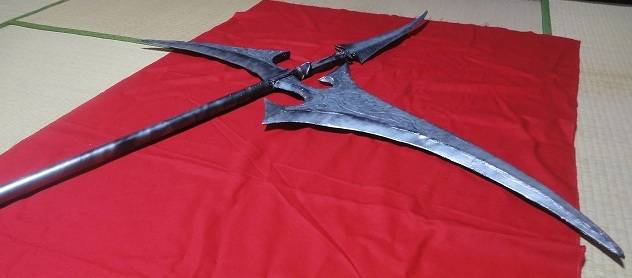

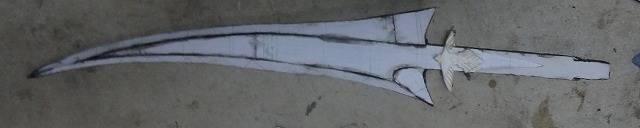

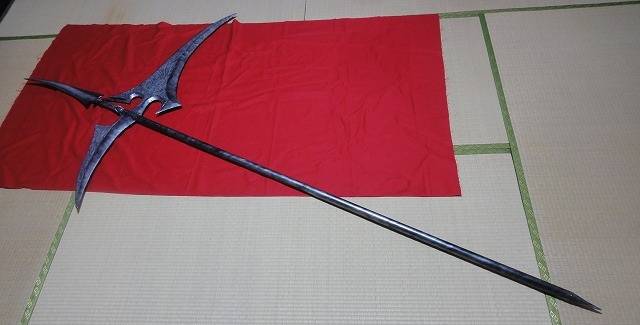

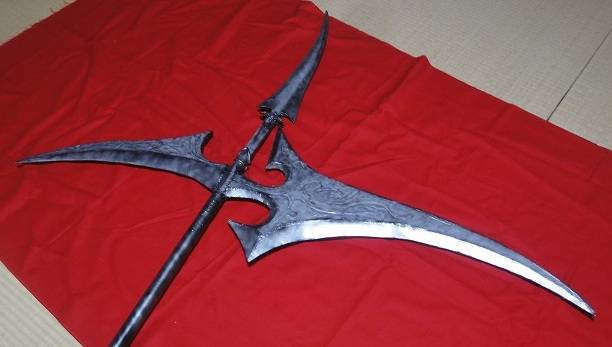

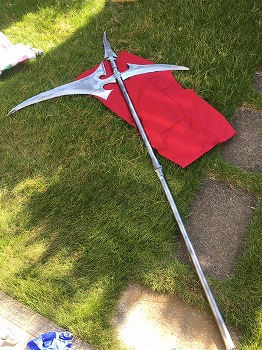

1/3 Completion image Caution Bellow photo is a image photo aftet completing. Caution Don't print bellow photo. Caution Read "How to print".
2/3 Completion image Caution Bellow photo is a image photo aftet completing. Caution Don't print bellow photo. Caution Read "How to print".
3/3 Completion image Caution Bellow photo is a image photo aftet completing. Caution Don't print bellow photo. Caution Read "How to print".
Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.
-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

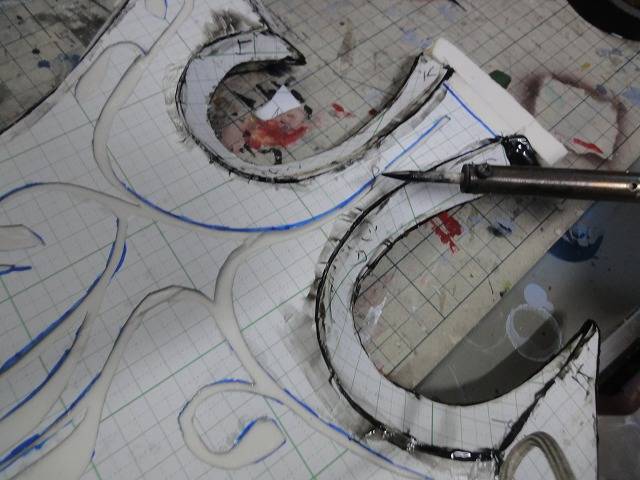

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.
-Don't use fire near the things which are easy to burn such as paint, thinner
etc.
-When you finished using tools, pull an outlet.
-Read labels of materials and tools, and understand how to use.
Please support me by donation
If my tutorials supported you, please support me.
You can donate me with credit cards or PayPal etc.
I'm gonna use donation to make new props.
The donation method is displayed by clickking this banner.

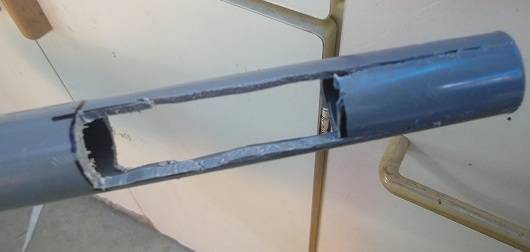

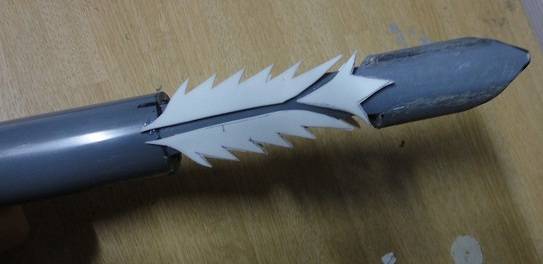

Building the shaft

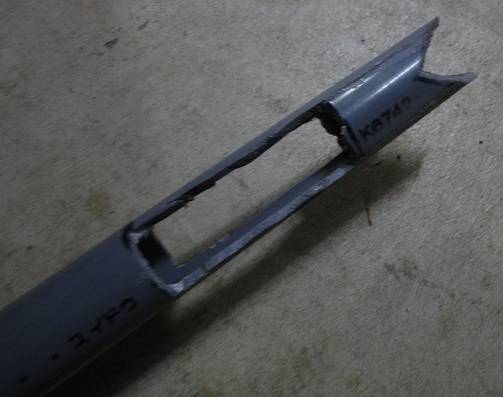

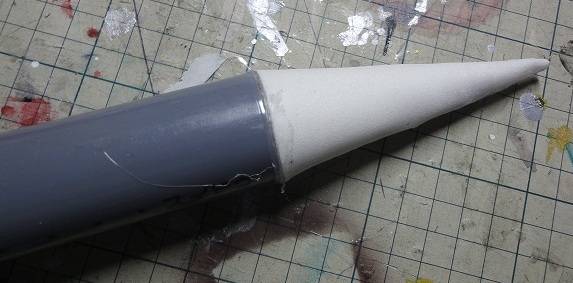

Make a stick. Use a PVC pipe(diameter 3.2cm).
Cut a PVC pipe. PVC pipe can be cut with a saw.
But a Pipe cutter is more better.
It can cut quickly and neatly.
This is a video of cutting method of PVC pipe, bending method, jointing method.

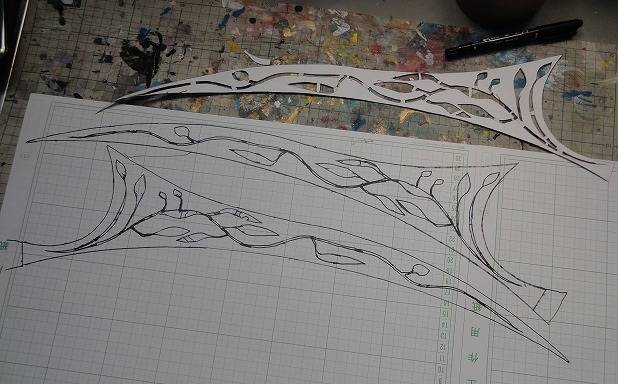

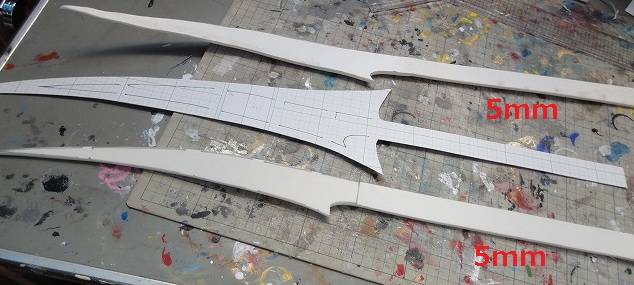

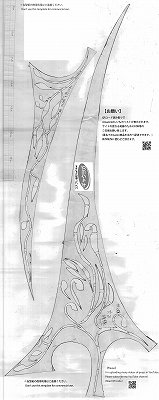

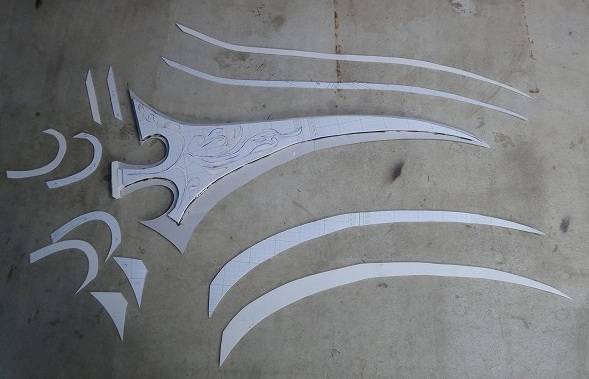

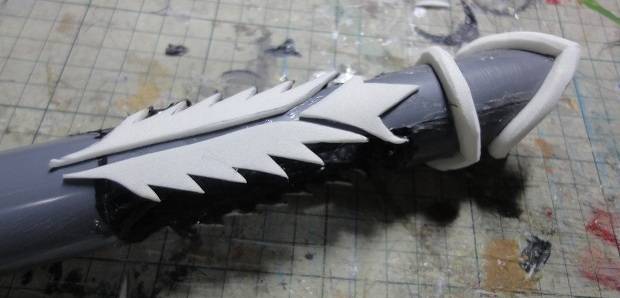

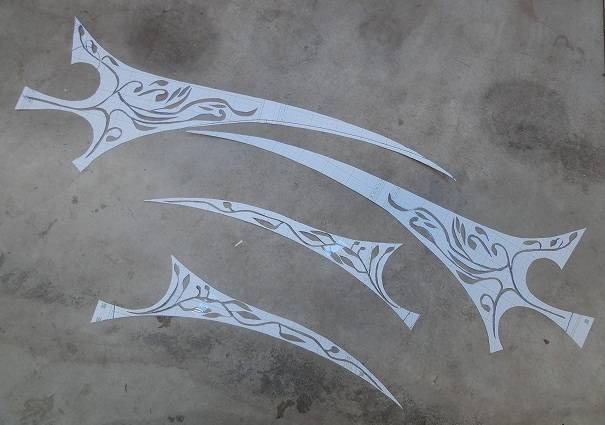

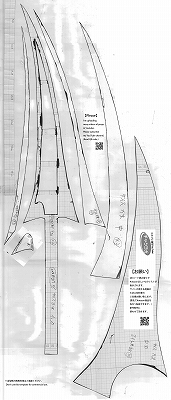

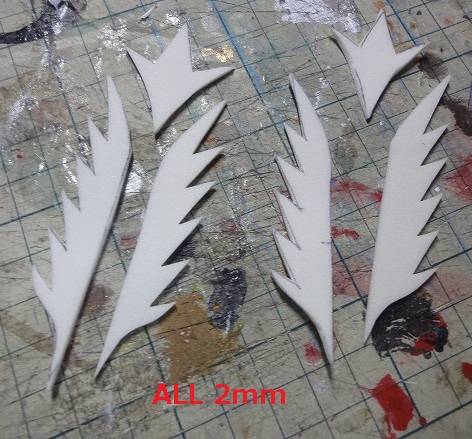

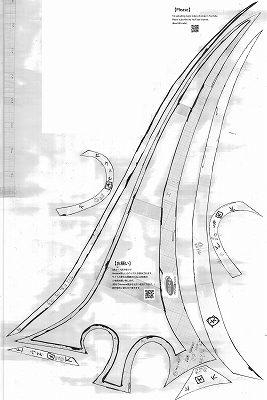

Cut material into the Templates form.
Cut out 1.5mm or 2mm thick EVA foam.
EVA foam is soft material.
You can process it easily.
Other names are EVA board, EVA zote, Craft foam etc.
Cosplayers all over the world use this.
It's sold in Amazon or AliExpress etc.
Introduction video
Use a sharp blade. For example, "Pro Blade".
This is so sharp. ←10枚入り ←50枚入りお得パック

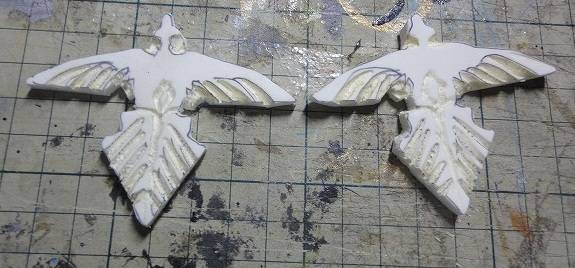

Use Standard art knife or Cushion grip art knife to cut small ornaments etc, too.
Standard art kinfe is for 1.5mm thickness and 3mm thickness.
Cushion grip art knife is for 5mm thickness and 10mm thickness.
Glue with a Liquid super glue.
When you use a Super glue Accelerator, Hardening speed becomes fast.
(Smoke may be generated. Don't breathe in the smoke and don't put in eyes.)

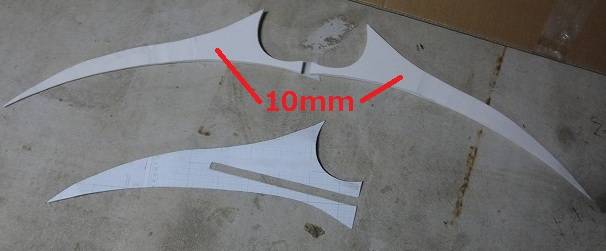

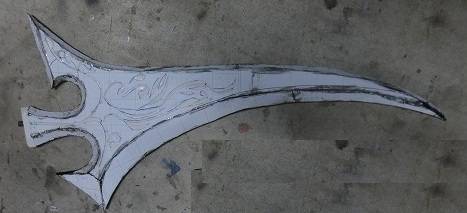

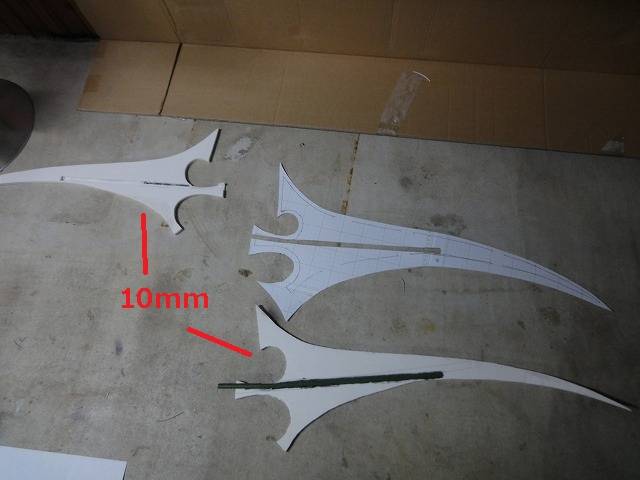

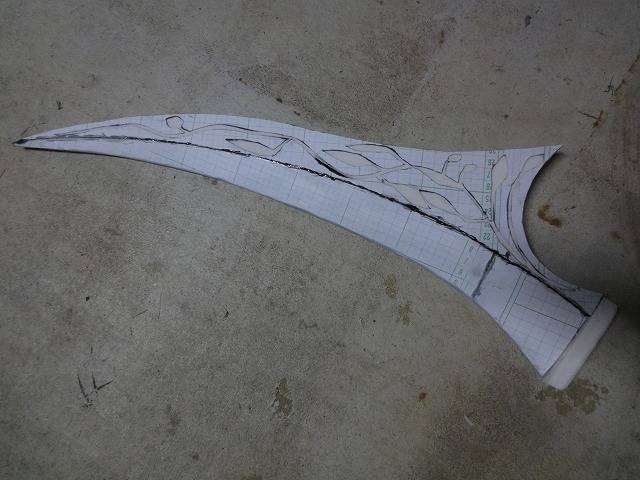

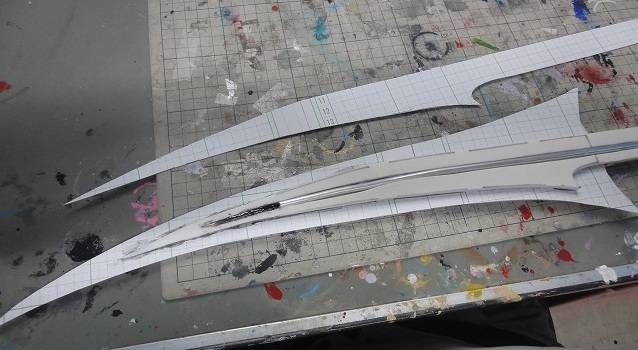

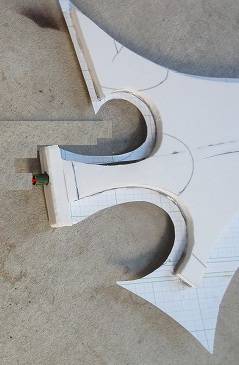

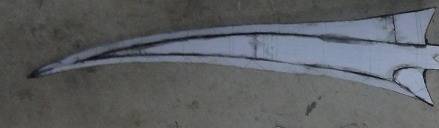

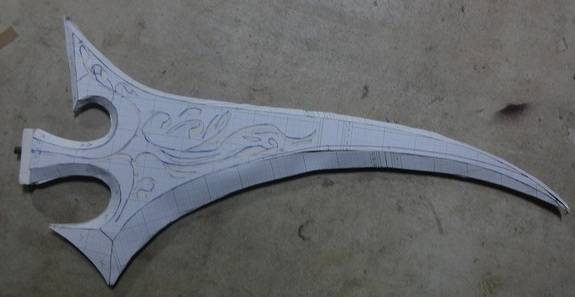

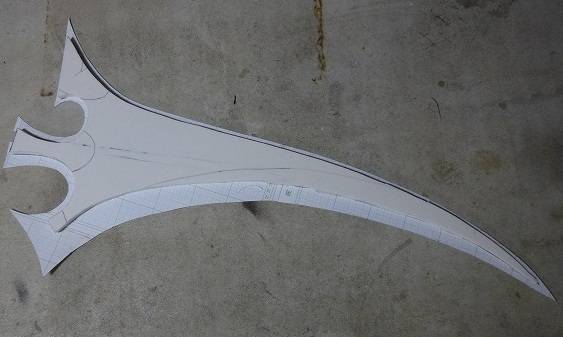

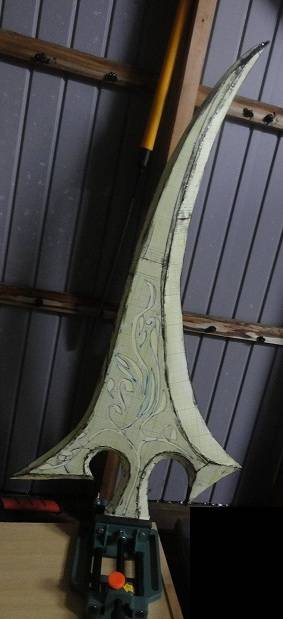

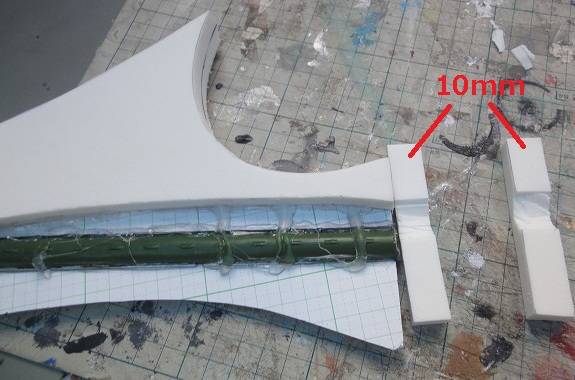

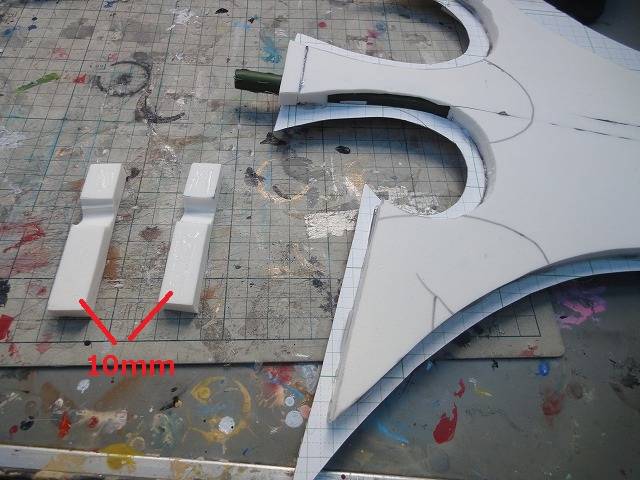

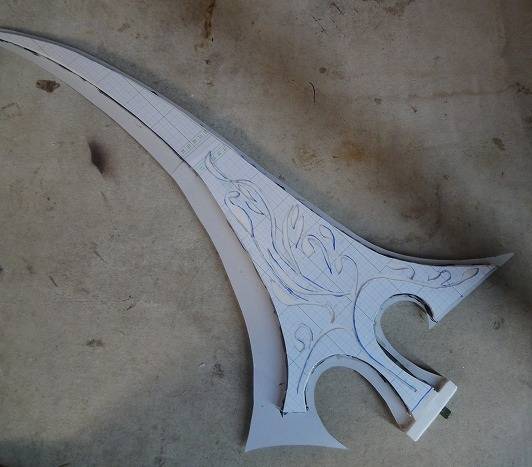

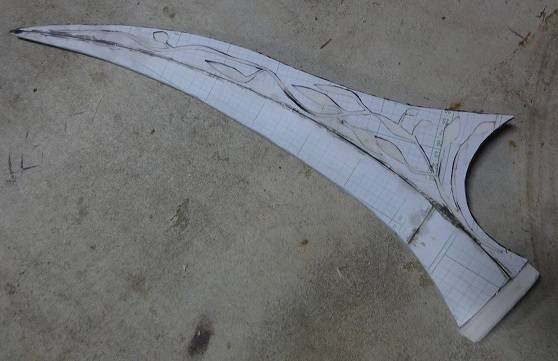

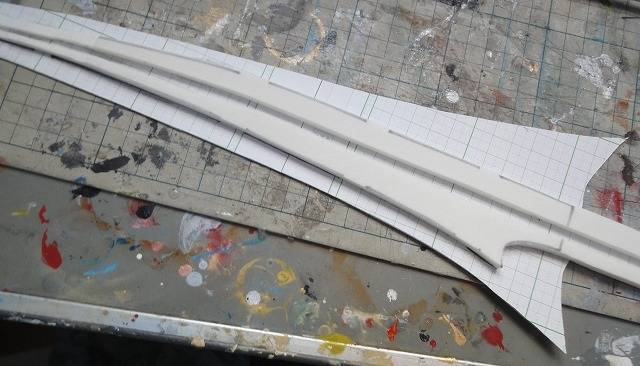

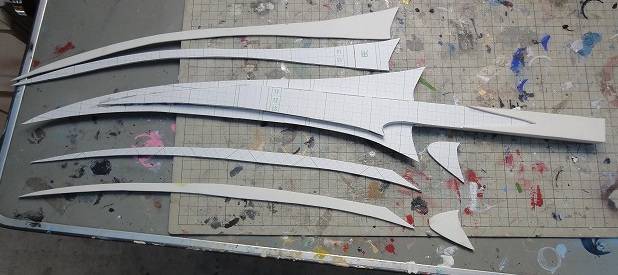

Building the big blade, medium blade

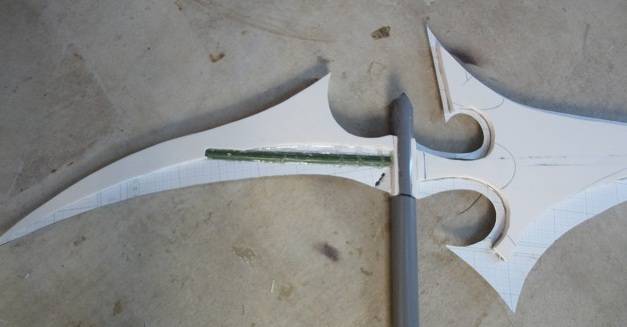

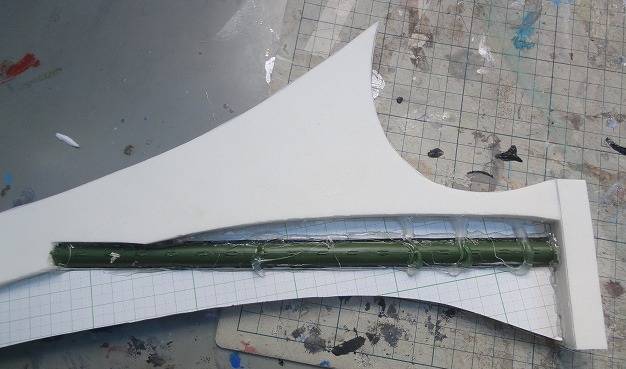

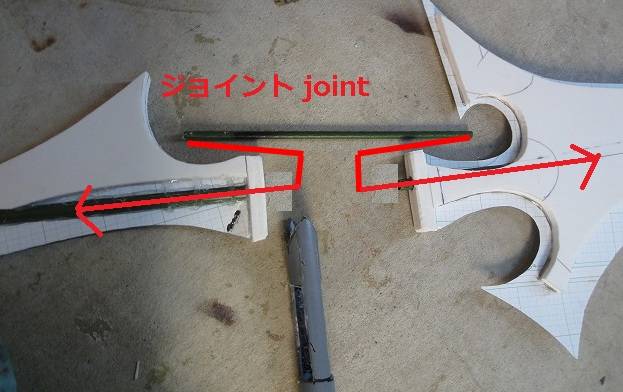

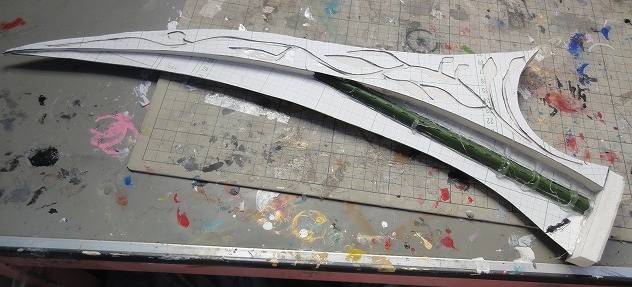

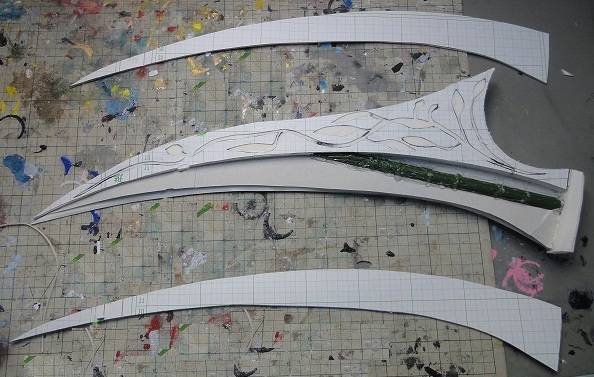

Use it as a core.
Cut it wit nippers, Freeway coping saw, etc.
This stick is just a iron stick.
You can substitute various metalic sticks. 園芸用の棒はホームセンターや100均で買った方が安い。
"Kousakuyousi"(one of hard paper in Japan) is sold in only Japan.
It's harder than Drawing paper. The thickness is about 0.5mm.
I'm sure you can't get it.
Then, substitute various thin plastic sheets.

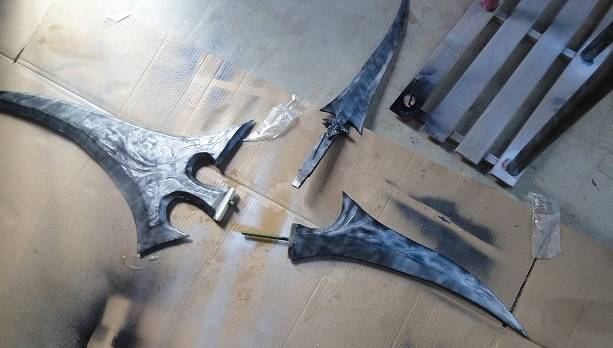

【Merit】
-It's usable just to paint with a paint brush.
-Gesso don't contain thinner, then you can use it in the room.
-You can use also Acrylic paint.
-There are several colors one, white black etc.
【Commodities page】
3."Bond G17"(one of liqud glue in Japan)
This is dangerous method, it's most likely happening fire.
I wrote about this method as a archive,
However I don't recommend this.
I don't use this method now, I use other method now.
If accedents happens, it's self-responsibility.
【Merit】
-It'st hard to peel off.
-It can use for PVC pipe or plastic sheets.
【Demerit】
-"Bond G17" is japanese commodity. Then you can't get it
easily.
-It needs thinner, then you must work outdoors.
-It burns easily. Don't use fire until drying, because "Bond G17" burns easily. Don' use a Lighter etc until drying.
The parts will be charred in seconds.
