Final FantasyType-0
Scythe's weapon
How to make Templates of blade (with templates)


Infomation of materials and Templates etc are here

Attention in the work
-When you uses a thing including the thinner(Bond, lacquer thinner etc) or spray, make good ventilation.
And wear a gas mask.


-When you toast mterials etc, make good ventilation.
And don't breathe smoke, don't put smoke in your eyes.

-When you dig mterials etc with Soldering iron, make good ventilation.
And don't breathe in smoke, don't put smoke in your eyes.

-Don't use fire near the things which are easy to burn such as paint, thinner etc.

-When you finished using tools, pull an outlet.

-Read labels of materials and tools, and understand how to use.

How to make templates

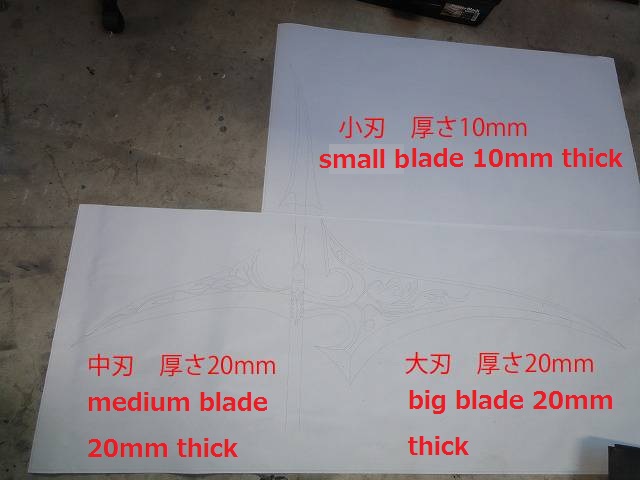

Make ground plan from "Kousakuyousi"(one of hard paper in Japan).
At first deside thick of every blade.



Cut out every blade


About big blade.

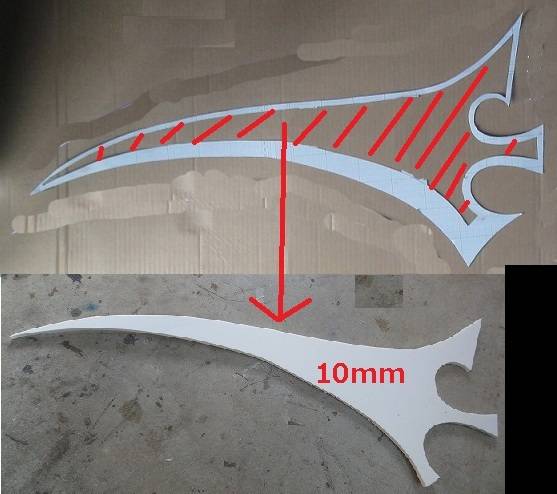

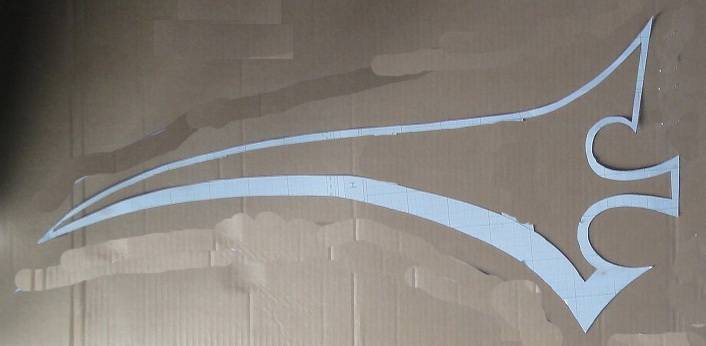

Cut off inside of ground plan.


Cut out EVA foam matching form of inside.
Thick of EVA foam is half of decided thick of blade
Big blade is 20mm thick,then Cut out EVA foam to 10mm thick.


**********************************************************************

EVA foam is a soft material.
You can process it easily.
Another name is EVA board, EVA zote, Craft foam etc.
I usually use one called "Lion board".
"Lion board" is sold only in Japan.

Watch video.

**********************************************************************

-------------------------------------------------------------------------------------------------------
【10mm厚COSボードを楽天で買う】

COSボード Sサイズ(450mm×600mm) 10mm厚 白 価格：986円（税込、送料別) (2019/10/23時点)

COSボード Mサイズ(600mm×900mm) 10mm厚 白 価格：1849円（税込、送料別) (2019/10/23時点)

COSボード Lサイズ(900mm×1800mm) 10mm厚 白 価格：6274円（税込、送料別) (2019/10/23時点)

COSボード Sサイズ(450mm×600mm) 10mm厚 黒 価格：1232円（税込、送料別) (2019/10/23時点)

COSボード Mサイズ(600mm×900mm) 10mm厚 黒 価格：2353円（税込、送料別) (2019/10/23時点)

【10mm厚COSボードをキャラヌノで買う】

-------------------------------------------------------------------------------------------------------
【10mm厚コスプレボードをAmazonで買う】


【10mm厚コスプレボードを楽天で買う】

コスプレボード 白10mm×660mm×500mm 価格：880円（税込、送料別) (2019/10/23時点)

コスプレボード　白10mm×660mm×1000mm 価格：1540円（税込、送料別) (2019/10/23時点)

コスプレボード　黒10mm×660mm×1000mm 黒だから裏塗り処理を省略出来る 価格：2486円（税込、送料別) (2019/10/23時点)

-------------------------------------------------------------------------------------------------------

**********************************************************************

Use a sharp blade. For example, "Pro Blade".
This is so sharp.
←10枚入り ←50枚入りお得パック

When you cut, put EVA foam on Cutting mat.
Don't cut in the air, while holding by hand.
Break a b blade frequentry, if you feel sharpness of using blade became bad.
If you want to do work more speedy, use "Running fire box cutter","Blade breaker".
"Running fire box cutter" can have 6 pieces blade inside.
"Blade breaker" can break easy and speedy.


Use Art knife PRO for small ornaments etc.

**********************************************************************

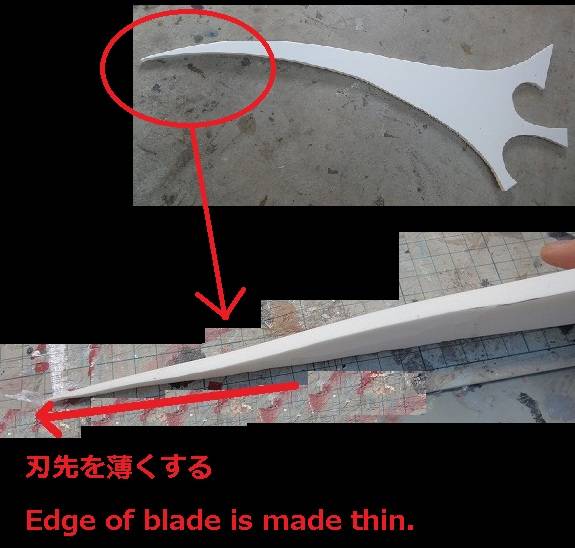

Make blade thin as it approaches tip.
Srice it and slant.


Stick matching mark with double sided tape.

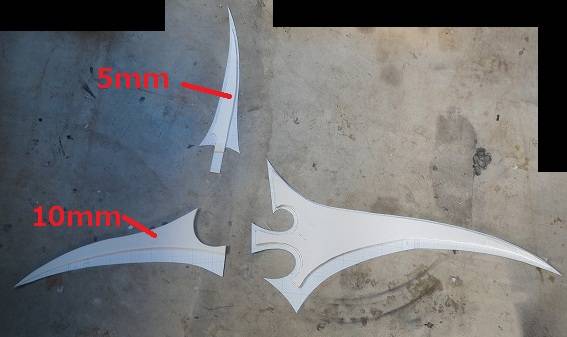

Other blades are made similarly.


-------------------------------------------------------------------------------------------------------
【5mm厚COSボードを楽天で買う】

COSボード Sサイズ(450mm×600mm) 5mm厚 白 価格：583円（税込、送料別) (2019/10/23時点)

COSボード Mサイズ(600mm×900mm) 5mm厚 白 価格：1120円（税込、送料別) (2019/10/23時点)

COSボード Lサイズ(900mm×1800mm) 5mm厚 白 価格：3249円（税込、送料別) (2019/10/23時点)

COSボード Sサイズ(450mm×600mm) 5mm厚 黒 価格：650円（税込、送料別) (2019/10/23時点)

COSボード Mサイズ(600mm×900mm) 5mm厚 黒 価格：1344円（税込、送料別) (2019/10/23時点)

【5mm厚COSボードをキャラヌノで買う】

-------------------------------------------------------------------------------------------------------
【5mm厚コスプレボードをAmazonで買う】


【5mm厚コスプレボードを楽天で買う】

コスプレボード 白5mm×660mm×500mm 価格：517円（税込、送料別) (2019/10/23時点)

コスプレボード 白5mm×660mm×1000mm 価格：990円（税込、送料別) (2019/10/23時点)

コスプレボード　白5mm×1000mm×2000mm 価格：3564円（税込、送料別) (2019/10/23時点)

コスプレボード　黒5mm×660mm×1000mm 黒だから裏塗り処理を省略出来る 価格：1320円（税込、送料別) (2019/10/23時点)

コスプレボード　黒5mm×1000mm×2000mm 黒だから裏塗り処理を省略出来る 価格：4180円（税込、送料別) (2019/10/23時点)

-------------------------------------------------------------------------------------------------------

How to make edage of blade.
Let a midium blade be an example.

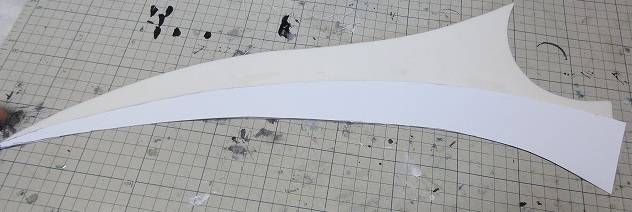

Make medium blade Templates.

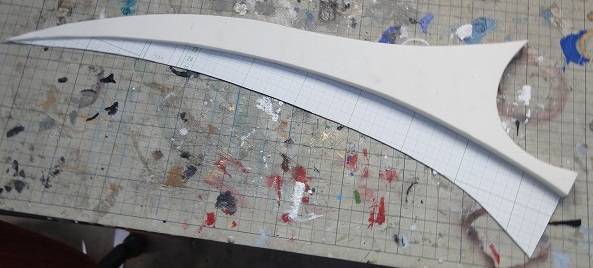

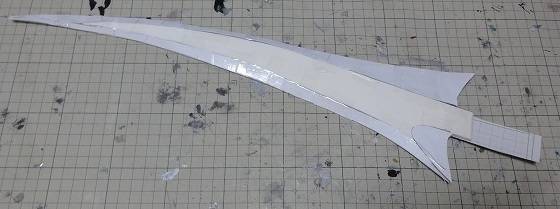

Serve gap from end of EVA foam to "Kousakuyousi"(one of hard paper in Japan) from Drawing paper.

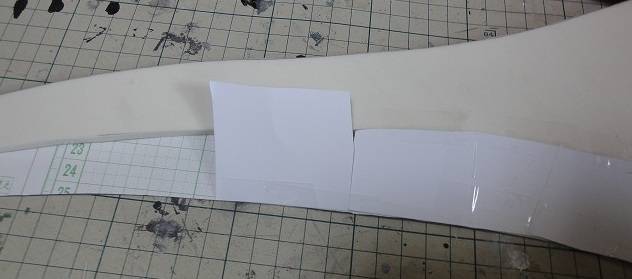

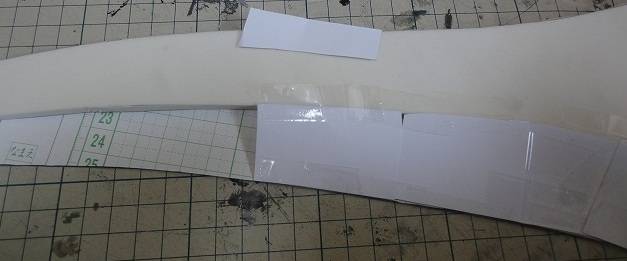

Paste Drawing paper cut small.


Cut left over place.


上記作業の繰り返しで一通り刃を埋める。

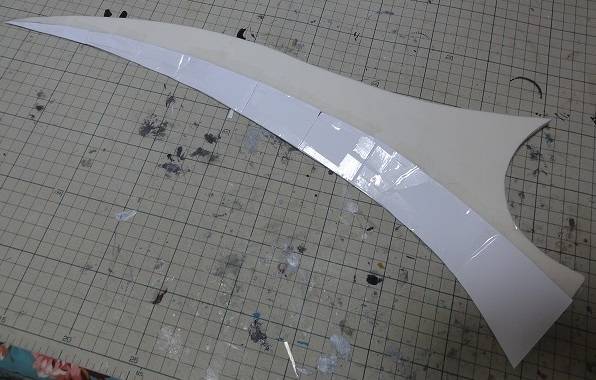

Repeat the above process and fill up gap.


Peel Drawing paper, when fill up all.

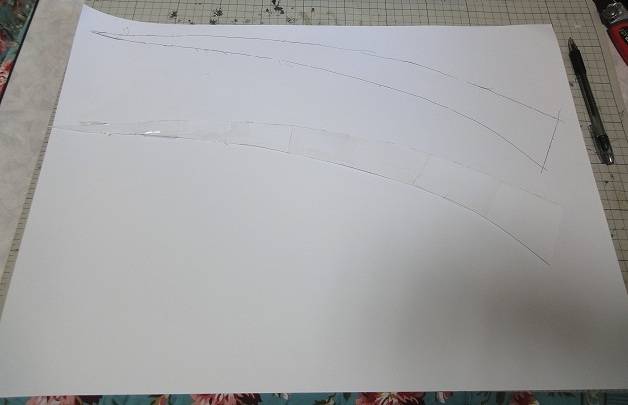

Make a fair copy with new Drawing paper.

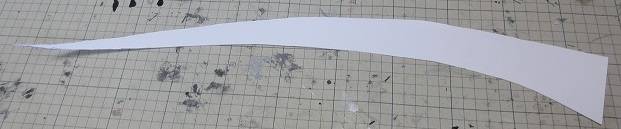

Cut out fair copy.


Fill up again.


If there are gap, adjust.
When you make ideal form, it be formal Templates.


Other blade are made similarly.

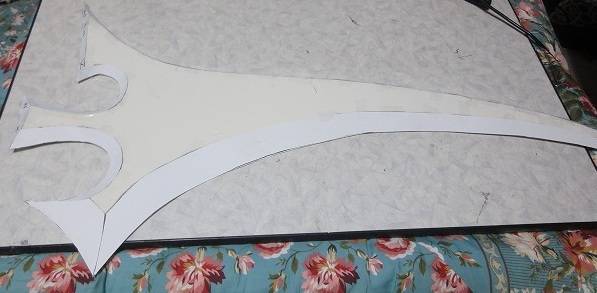

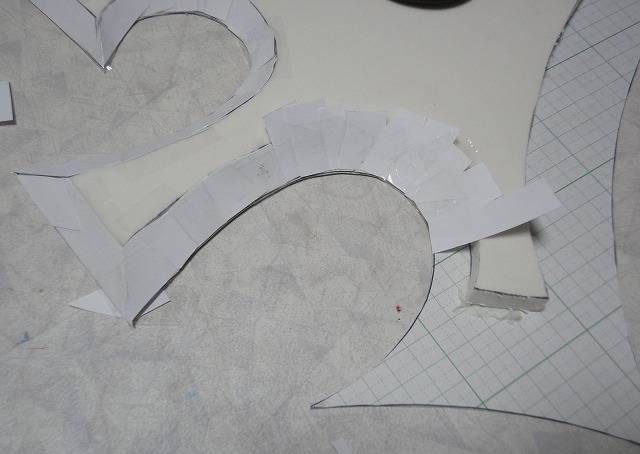

Paste some Drawing paper cut small in hard curve.


Pasting some several.


Complete.



Please
I'm making Yotube videos.
Please watch them and please subscribe my YouTube channel.
These are new videos.


















Dismantle state.
